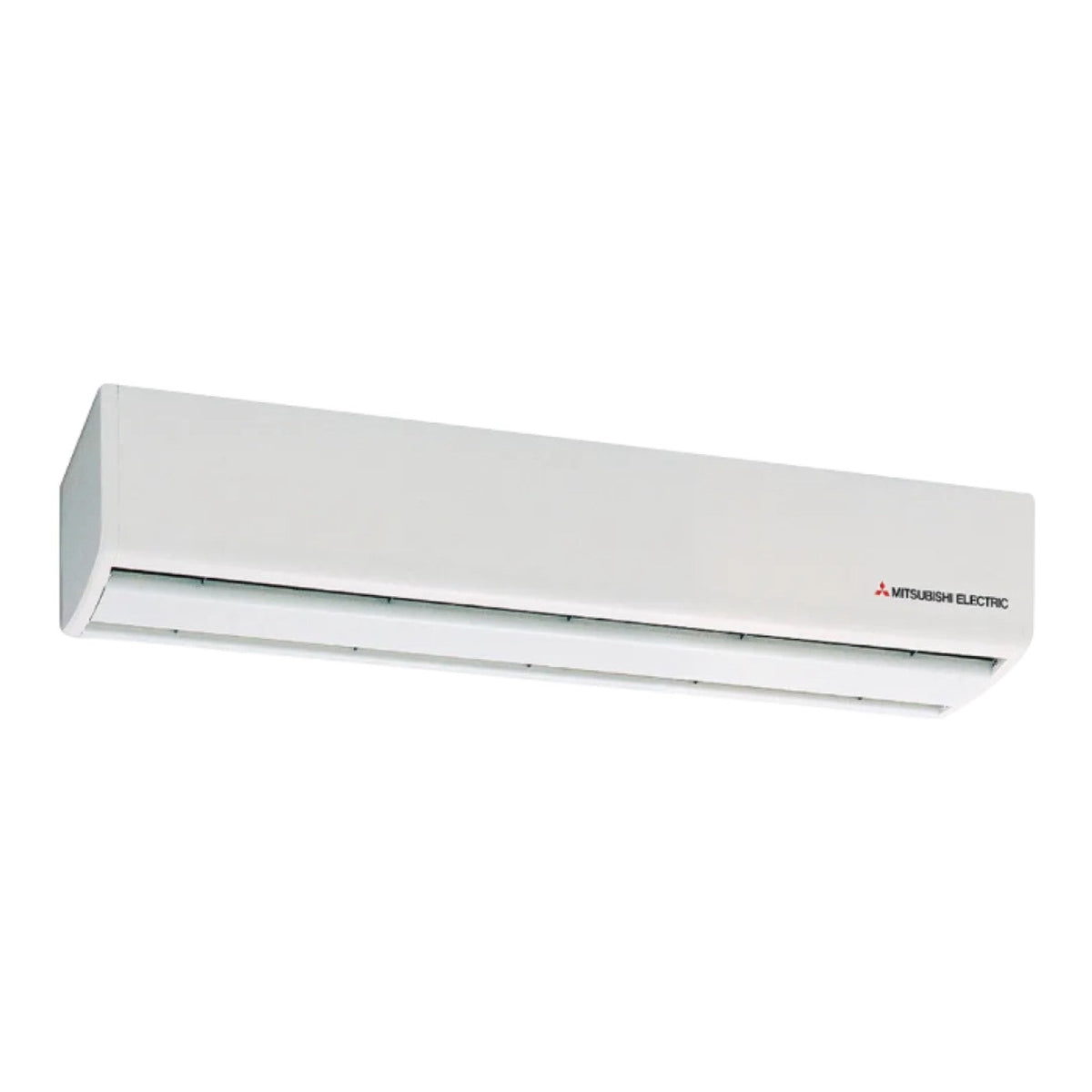

Mitsubishi Electric Air Curtain Barrier model GK-120 120 cm Without Control GK-3012AS2
Mitsubishi Electric Air Curtain Barrier model GK-120 120 cm Without Control GK-3012AS2
Mitsubishi Electric Air Curtain Barrier model GK-3012AS1 120 cm
Technical features:
- Model: GK-3012AS2
- Type: Air barrier or Blade barrier
- Maximum installation height: 3 m
- Power supply: 220-240/50Hz V/Hz/n°
- Power consumption (Min./Max): 107-125 W
- Current consumption (Min./Max): 0.52-0.57 A
- Maximum air speed (High/Low): 12/9.50 m/sec
- Air flow (High/Low): 1,720/1350 m3
- Sound level (High/Low): 48/49 dB
Dimensions:
- (WxHxD): 1194 x 153 x (190 + 25) mm; Weight: 14 Kg;
Mitsubishi air curtain
Ideal for....
Air barrier ideal for vertical and horizontal installation for installation heights up to 3 meters
Air barriers
The air barrier not only ensures temperature insulation effectively (i.e. preventing the escape of cold air during cooling and the escape of warm air during heating), but also protects your premises from unpleasant elements coming from the external. The air barrier is a means that, although it does not prevent passage, blocks dust, exhaust gas, smoke, odors and insects (e.g. flies and mosquitoes). The protection offered to the environment allows customers to enter and exit freely.
The air curtain can be installed vertically or horizontally depending on the space available. It is important to ensure that the width of the air curtain exceeds the width of the door and that it is installed no higher than the recommended height (3 metres). Only in this way will the air curtain ensure its correct functioning.
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
