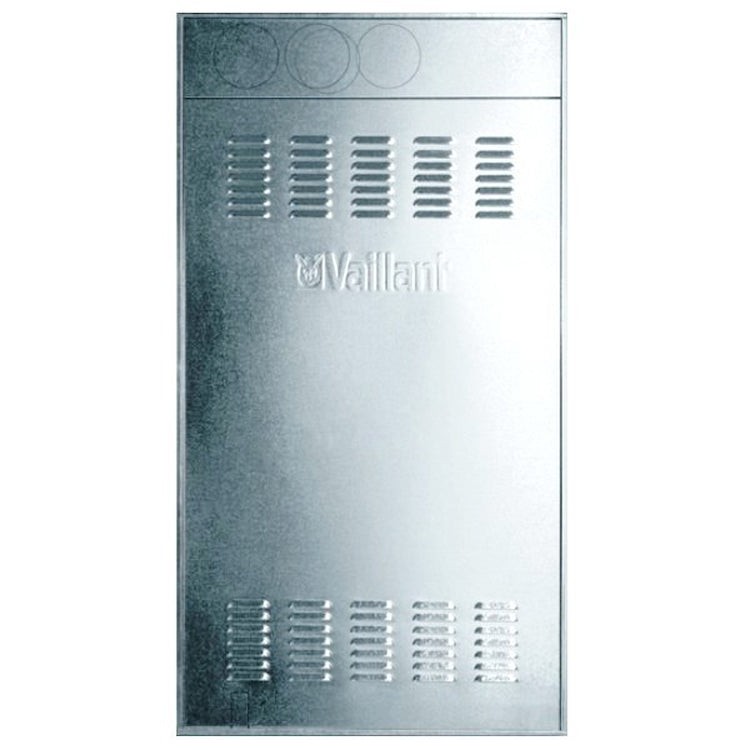

Vaillant Built-in Box 0010030848 for ecoINWALL Plus Boilers

Technical features

• Product code: 0010030848
• Dimensions (HxWxD): 1141x574x246 mm
• Weight: 24.6kg

Unit to be combined with Vaillant ecoINWALL Plus boilers

Built-in unit Vaillant accessories

The built-in unit allows you to install the boiler inside a wall outside the home. The frame is equipped with hooks to support the boiler and holes in the lower area for the passage of the connection pipes to the water system, the gas supply pipe, the electricity line, the remote control and also the condensate drain. There is also a pre-drilled front panel that allows exit from the front both with a split pipe system and with a coaxial pipe system if the boiler is installed in a closed environment.

• Depending on the depth of the wall, create a niche or an opening the size of the built-in unit and a space underneath it to make the connections.
• Fold the 4 brackets located on the sides of the built-in unit outwards
• Insert the built-in unit into the seat and make the various connections: electricity, gas, water and fumes.
• Once the built-in unit is closed with the front panel, it is possible to paint according to the color of the building.
