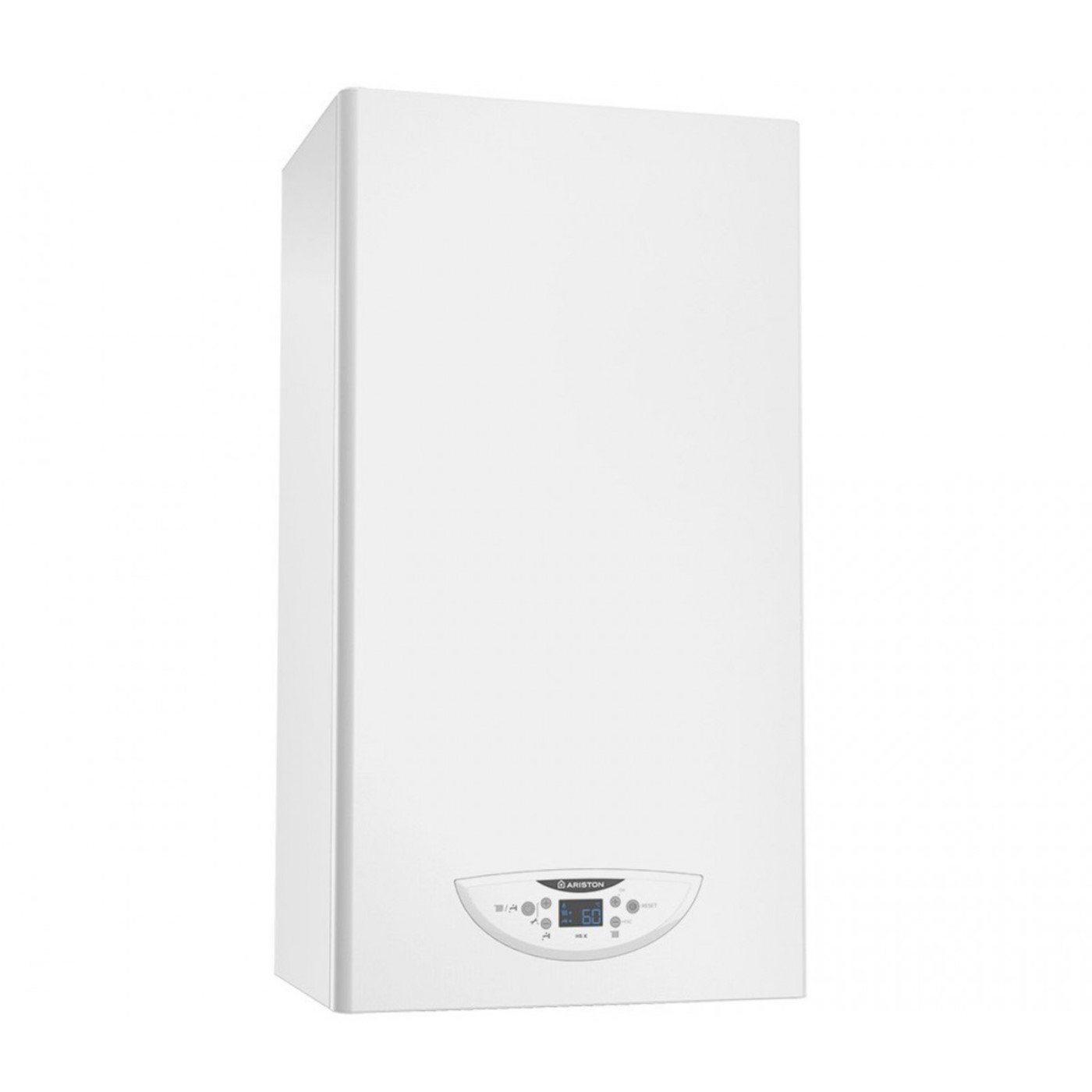

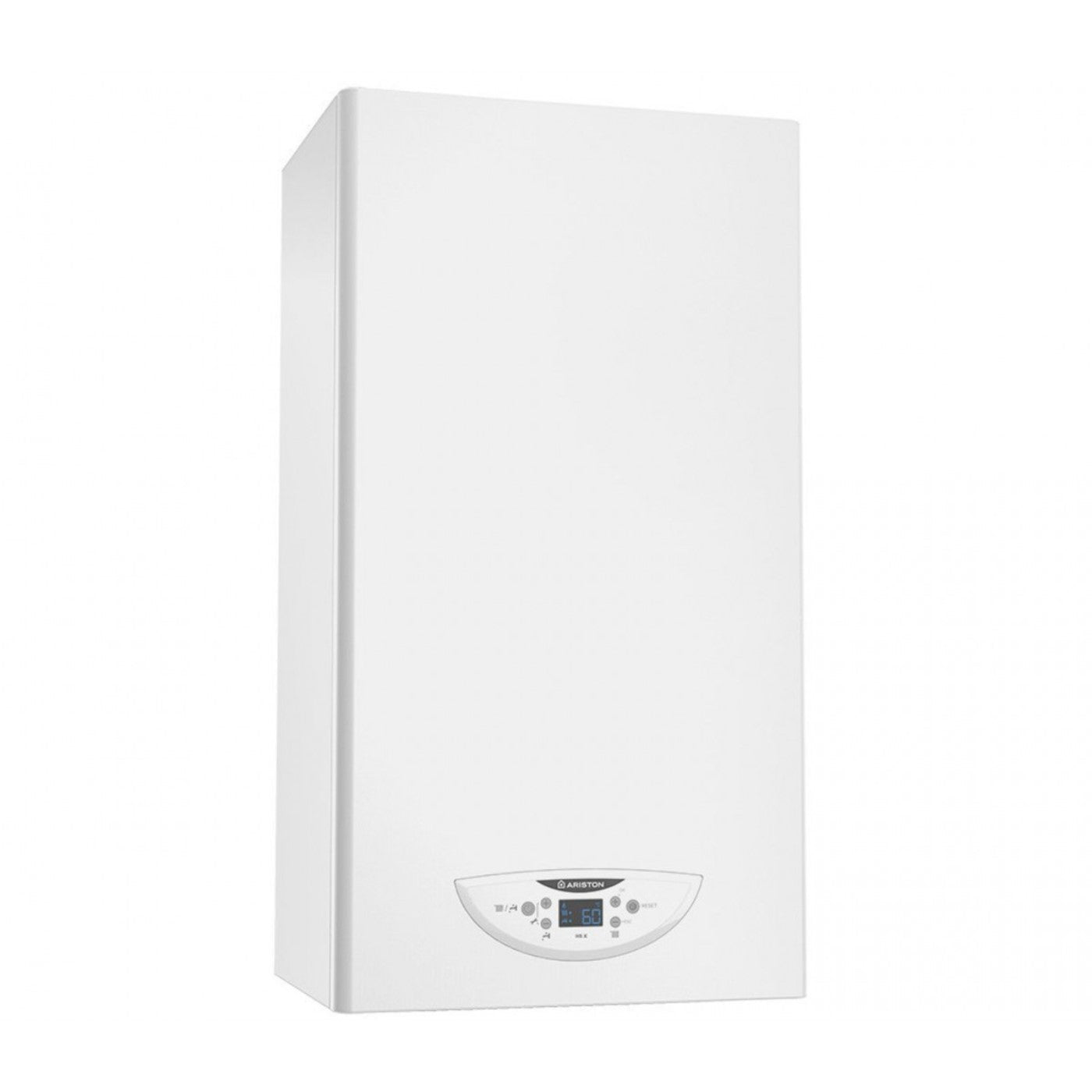

Ariston HS X 24 CF Low NOx Methane Open Chamber Boiler

Ariston HS X 24 CF Low NOx Methane Open Chamber Boiler - NEW

• Heating energy efficiency class C
• Energy class in Sanitary B
• XL load profile
• Nominal heat input max/min kw 25.8 / 11.0
• Useful thermal power max/min kw 23.2 / 9.8
• Nominal heat input max/min (DHW) PCI 27/11.0 kW
• Hot water flow rate at ΔT 25º C 14.2 l/min
• Low NOx emissions < 56 mg/kWh
• Power supply voltage 230 V~ (50 Hz)
• IP X4D electrical protection rating
• Dimensions HxWxD 745x400x315 mm

New HS

The new Ariston HS-X boiler leaves the traditional room thermostat and can work with internal and external temperature probes. Prepared for thermoregulation. These exclusive Ariston thermoregulation peripherals allow a further 15% gas saving, offering greater stability at room temperature. Ready for use with solar thermal energy in domestic hot water.

• Digital multifunction display
• Continuously modulating high efficiency circulator
• Predisposition for on-off thermoregulation
• Preparation of natural circulation solar systems
• Self-diagnosis system by code
• Management of single-temperature zones
• Primary copper finned exchanger
• Double exchanger technology
• Integrated minimum pressure switch
• Cold water inlet and heating return filters
• Low NOx emissions < 56 mg/kWh
