ATTENTION THE BOILER IS DESIGNED WITH METHANE AND THE TRANSFORMATION KIT WILL BE SUPPLIED WHICH IS NOT STANDARD. FOR INFORMATION, CONTACT YOUR LOCAL AUTHORIZED ASSISTANCE CENTER IN ADVANCE

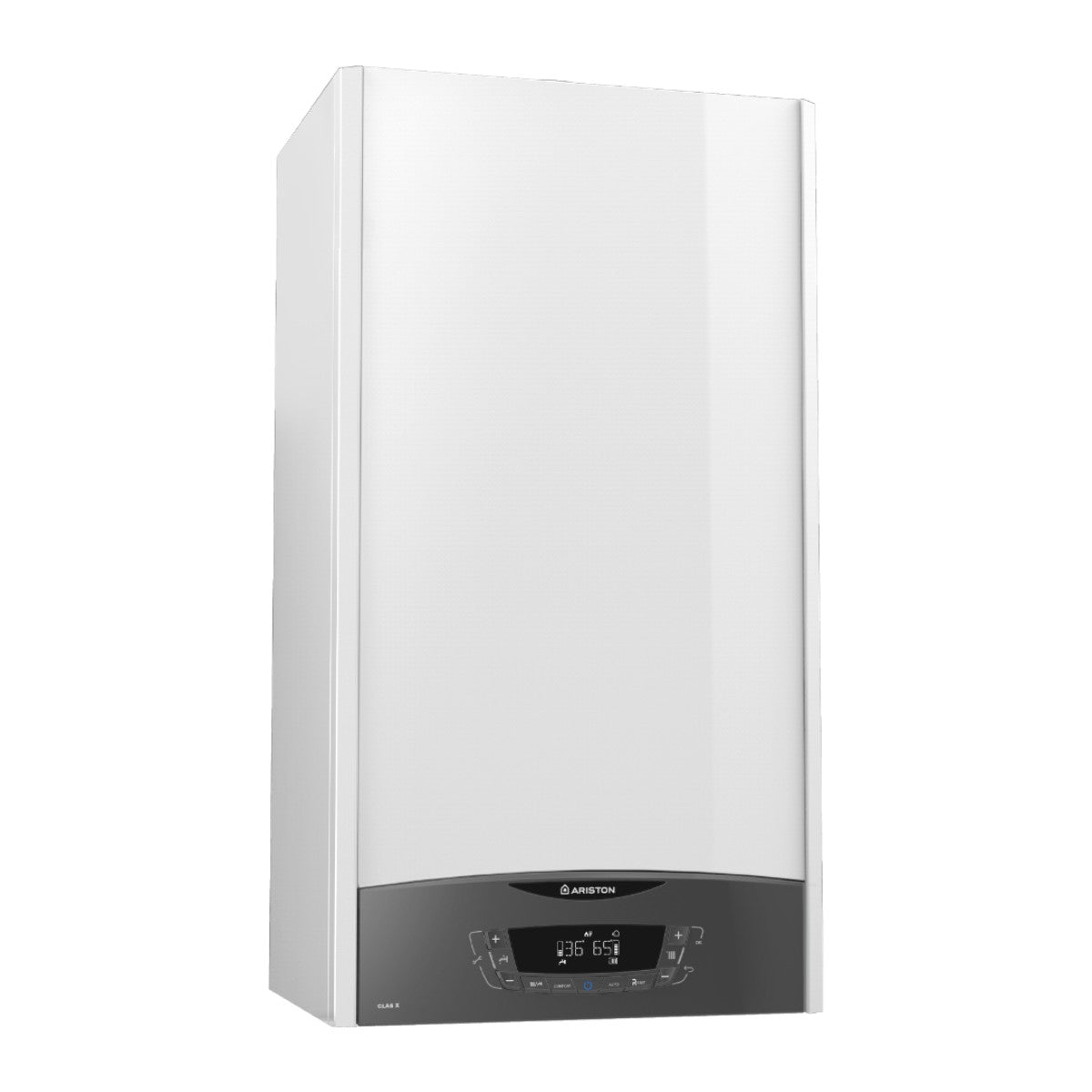

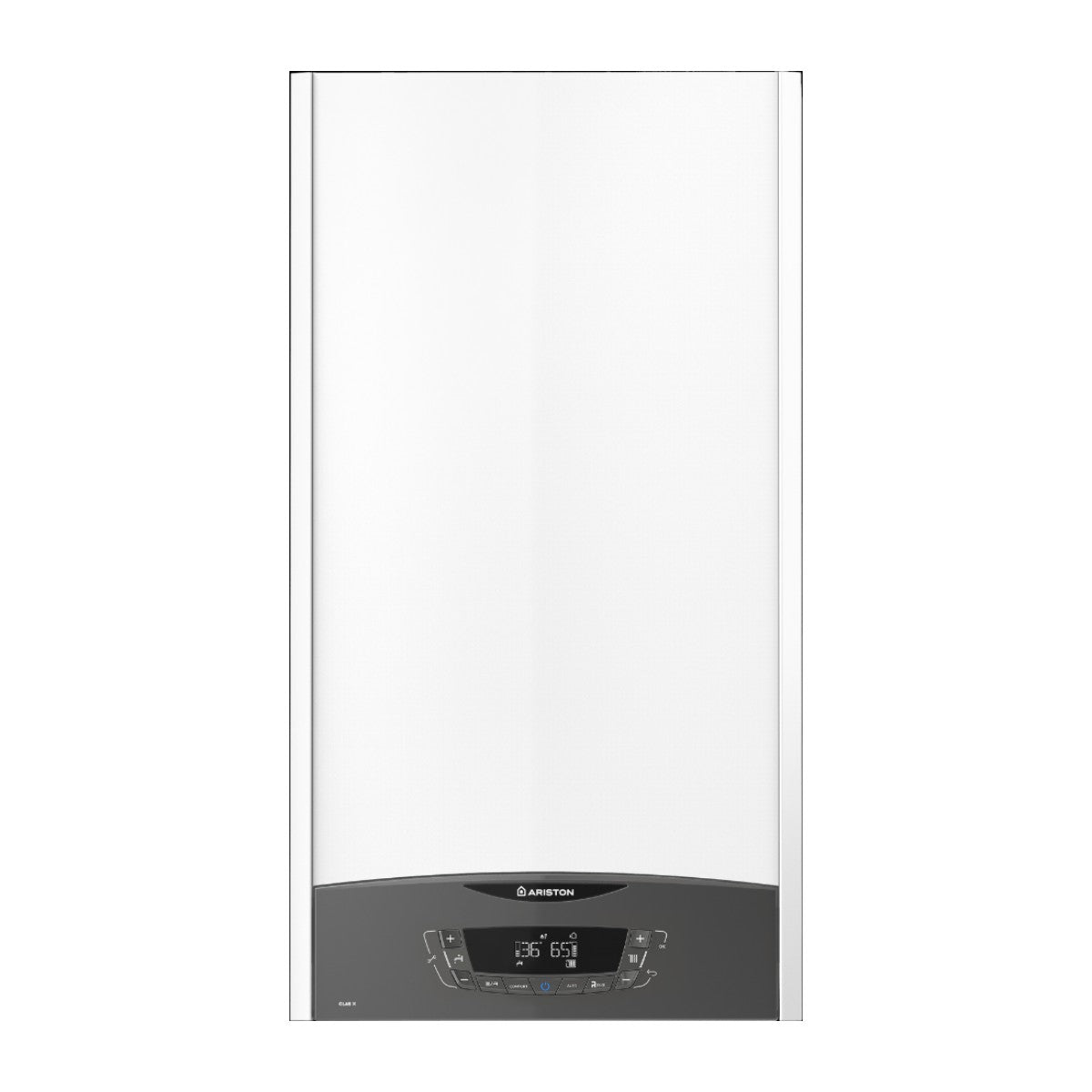

ARISTON GAS BOILER model CLAS X 24 CF LPG Low NOx OPEN CHAMBER
Technical features
Product code: 3301313
- Energy label specifications according to the European ErP directive
- Class C heating energy efficiency
- Healthcare energy efficiency B
- XL withdrawal profile
Technical specifications.
- Nominal heat input max/min (heating) PCI kW 25.8-11.0
- Nominal heat input max/min (DHW) PCI kW 27-11
- Max/min useful thermal power (heating) kW 23.2-9.8
- Efficiency at PCI nominal heat input: 90.1%
- Efficiency at 30% of PCI rated flow: 89.9%
- Max/min heating temperature: 82-35°C
- Max/min domestic hot water temperature: 60-36°C
- Port. specific in healthcare. (10 min. with ΔT=30°C): 11.8 litres/min
- Quantity of hot water (ΔT=25°C): 14.2 l/min
- Quantity of hot water (ΔT=35°C): 10.2 l/min
- Minimum room temperature for use: 5°C
- Power supply voltage/frequency V/Hz 230-50
- Total electrical power absorbed: 52.1W
- Degree of protection of the electrical system IP X4D
- Dimensions 24 kW mm (HxWxD) 745 x 400 x 315
- Fuel: Methane or LPG
Characteristics

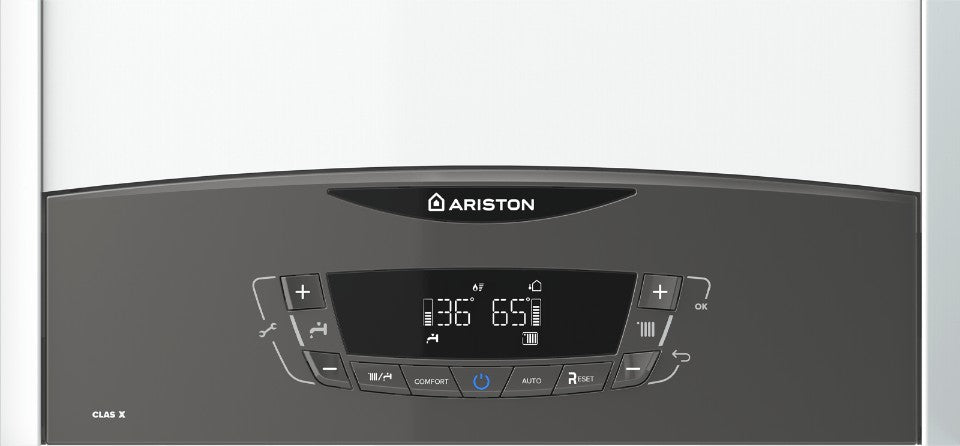

- LCD display
- Continuously modulating high efficiency circulator
- Prepared for Ariston Net connectivity
- Bridgenet® Bus communication protocol
- Provision for multi-zone and multi-temperature thermoregulation
- Preparation for management of solar systems
- Auto and comfort function
- Primary copper finned exchanger
- Cold water inlet and heating return filters
- Low NOx emissions < 56 mg/
