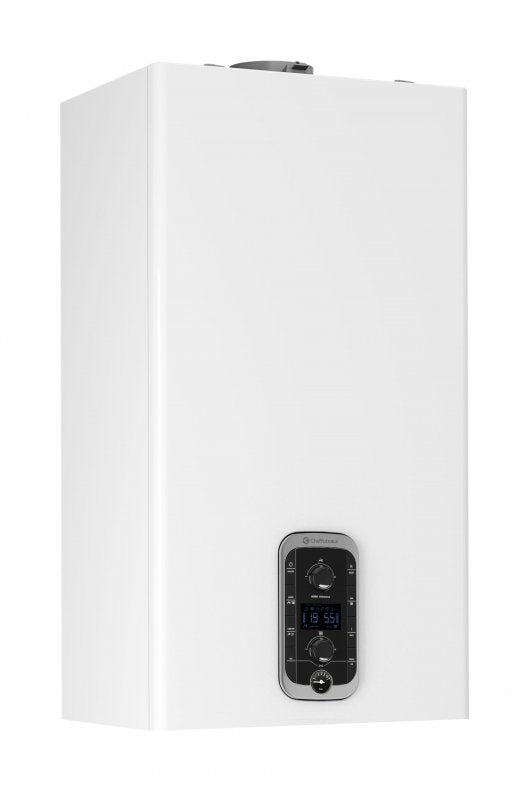

CHAFFOTEAUX MIRA ADVANCE GAS BOILER 30 kW LINK Wi-Fi METHANE WITH SMOKE EXHAUST KIT Split smoke kit

CHAFFOTEAUX MIRA ADVANCE GAS BOILER 30 kW LINK Wi-Fi METHANE WITH SMOKE EXHAUST KIT

• Model: Mira Advance Link;
• Type: Condensation;
• Code: 3310613;
• Heating energy class: A++;
• Energy class in sanitaryware: A;
• Load profile: XL;
• Power supply: LPG/Methane AutoAdapt function;

Heating performance:

• Nominal heat input in heating (max/min): 31.1/3 kW;
• Useful heating power 80º C/ 60º C (max/min): 27.5/2.8 kW;
• Useful heating power 50º C/ 30º C (max/min): 30.3/3.1 kW;
• Expansion vessel pre-charge pressure: 1 bar;
• Maximum pressure: 3 bar;
• Expansion tank capacity: 8 l;
• Min/max heating temperature (high temperature range): 35 / 82 °C;
• Min/max heating temperature (low temperature range): 20 / 45 °C;
• Efficiency at nominal power 60/80: 98.4%;
• Efficiency at nominal power 30/50: 108.3%;
• Efficiency at 30% of nominal power: 109.5%;
• Up to 25% energy savings in combination with Expert Control and the SRA function;
• Up to 35% energy savings by combining Expert Control, the SRA function, the external probe and the radiant floor;
• Reduced polluting emissions, NOx Class 6;

Performance in Healthcare:

• Heat output (max/min): 30.0/ 3.0 kW;
• Useful power (max/min): 33.3/3.3 kW;
• Temperature (min/max): 36 / 60 °C;
• Specific flow rate in DHW (10 min. with ∆T=30°C: 14.3 l/min;
• Instantaneous quantity of hot water ∆T=25°C: 17.2 l/min;
• Instantaneous quantity of hot water ∆T=35°C: 12.3 l/min;
• Minimum hot water withdrawal: 2 l/min;
• Domestic water pressure (max/min): 7.0 / 0.2 bar;
• Electrical data:
• Supply voltage: 230V;
• Power consumption: 91W;
• Electrical protection rating: IP X5D;
• Minimum room temperature for use*: >0;
• Installation:
• Installation in partially protected places;
• Smoke exhausts 80, 60, 50 mm;
• Intuitive electrical connections;

Dimensions:

• (HxWxD): 745x400x385 mm; Weight: 32.3kg;

MIRA ADVANCE LINK

Mira Advance Link, powerful soul for amazing control. Equipped with the innovative SpinTech exchanger, it excels in its category thanks to the electronic combustion control, integrated Chaffolink connectivity, Expert Control and external probe as standard.

Can be installed in partially protected places

Maximum Performance:

• New primary single-loop stainless steel exchanger.
• Passage sections increased by 142% compared to the previous version.
• 1 m more head.
• Seasonal yield at 94%.
• Class A+ achievable with thermoregulation.
• Performance certified by the TÜV RHEINLAND Group.

Maximum Comfort

• Modulation ratio 1:10.
• Electronic combustion control E-Burning System.
• SRA function.
• Gas transformation from the technical menu without the need for a kit.
• Chaffolink connectivity integrated into the boiler.
• External temperature from the internet thanks to integrated connectivity.

Easy Installation

• Installation in partially protected places.
• Smoke exhausts 80, 60, 50 mm.
• Intuitive electrical connections.

Energy saving and respect for the environment

• Up to 25% energy savings in combination with Expert Control and the SRA function.
• Up to 35% energy savings by combining Expert Control, the SRA function, the external probe and the radiant floor.
• Reduced polluting emissions, NOx Class 6.
