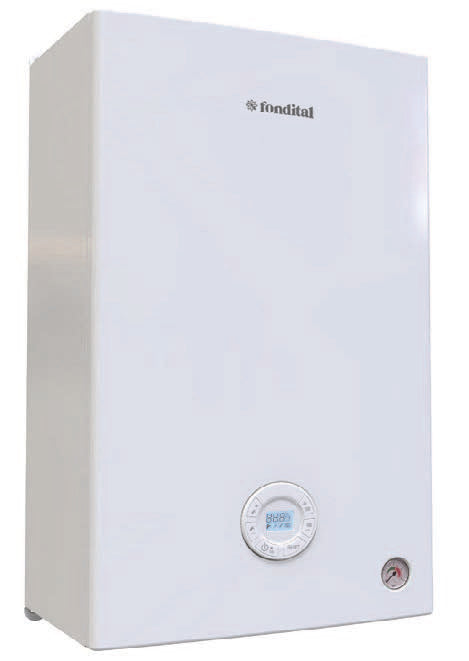

Fondital TENERIFE KC 24 kW condensing boiler complete with Low NOx Methane fume exhaust kit KTFI02KC24 - ErP

Fondital TENERIFE KC 24 kW condensing boiler complete with Low NOx Methane fume exhaust kit KTFI02KC24 - ErP

• Nominal heat output (Pnominal) kW 19
• Seasonal space heating energy efficiency (ηs) % 92
• Water heating energy efficiency (ηwh) % 84
• Nominal heat input (Qn) kW 20.0
• Nominal heat output (80-60°C) (Pn) kW 19.4
• Thermal power (50-30°C) kW 21.2
• Reduced heat input (Qr) kW 5.0
• Useful efficiency at nominal flow rate (80-60°C) % 97.1
• Useful efficiency at nominal flow rate (50-30°C) % 106.1
• Useful efficiency at 30% (30°C return) % 108.1
• Heating expansion vessel capacity 9 l
• Nominal heat input in domestic hot water kW 24.0
• Specific sanitary flow rate ΔT=30K l/min 12.0
• NOx emission class - 6
• IP electrical protection degree IPX4D
• Energy class A

Tenerife KC

WALL-MOUNTED CONDENSING BOILER WITH INSTANTANEOUS DOMESTIC HOT WATER PRODUCTION

• High efficiency single spiral stainless steel exchanger with large passage section
• 9 liter heating expansion tank
• Compact, only 250 mm deep
• Simple installation in pre-existing systems thanks to: central exhaust, wall mounting bracket and double hole for split intake
• Thermoregulation with external probe (optional)
• User interface with backlit LCD, with diagnostics
• Modulation ratio 1:5
• Total premix burner
• High efficiency circulator with built-in deaerator
• Programmable parameters to adapt the boiler to the installation alarm history
• Sanitary plate exchanger in stainless steel
• Automatic by-pass
• Compatible with SPOT smart thermostat
