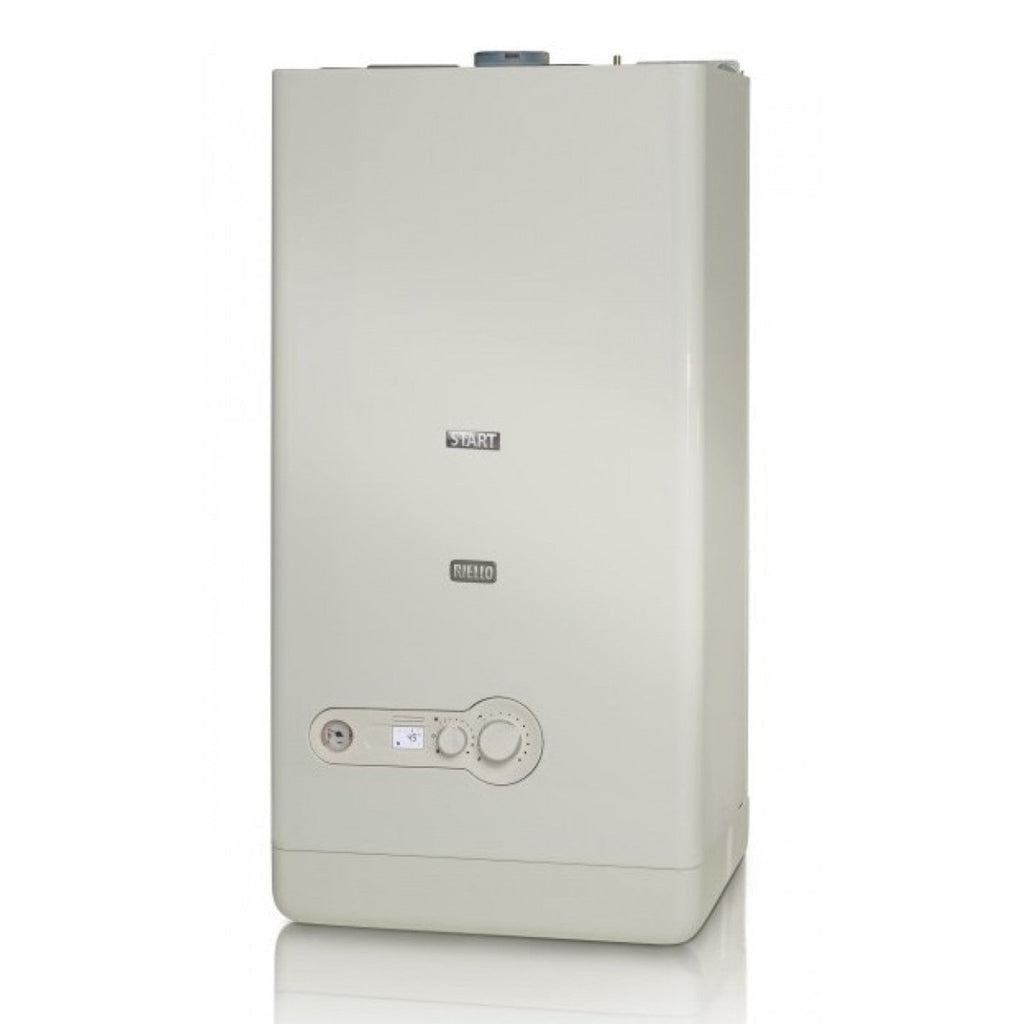

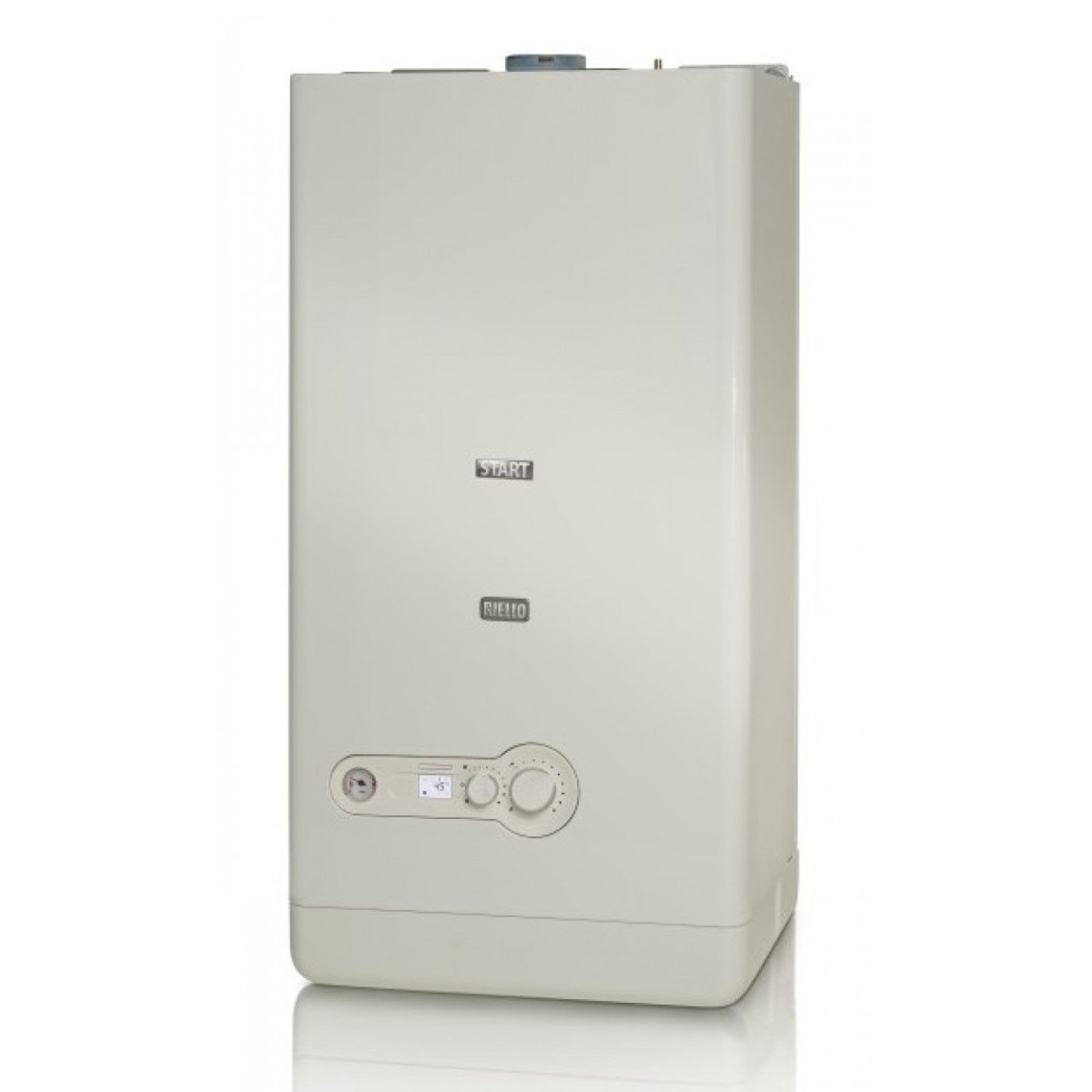

Riello open chamber boiler mod. START 28 KI LN Low NOx LPG - NEW ErP 20151435 Conversion kit included

NB THE BOILER IS DESIGNED WITH METHANE. FOR CONVERSION TO LPG, CONTACT YOUR LOCAL AUTHORIZED ASSISTANCE CENTER IN ADVANCE

Riello open chamber boiler mod. START 28 KI LN Low NOx LPG - NEW ErP 20151435

• Product code: 20151435

Energy label specifications according to the European ErP directive

• Class C heating energy efficiency
• DHW profile XL Class B energy efficiency

Heating/DHW operation characteristics:

• Thermal capacity: 31.90 kW
• Thermal power (80-60°C): 28.87 kW
• Reduced heat input: 14.00 kW
• Reduced heat output (80-60°C): 12.36 kW
• Thermal capacity: 31.90 kW
• Reduced heat input: 9.00 kW
• Reduced thermal power: 7.95 kW
• Minimum operating pressure: 0.25-0.45 bar
• Quantity of hot water with Δt 25°C: 16.6 l/min
• Minimum domestic water flow rate: 2 l/min
• Sanitary H2O temperature selection range: 37-60°C
• Flow regulator: 10 l/min
• NOx class: 6
• Dimensions HxWxD 450x332x740 mm; Weight: 30 Kg

START 24 KI LN (LOW NOx)

Start LN is characterized by a modern design despite its essentiality, it is ideal for heating and the production of domestic hot water in small and medium-sized domestic users. Start LN is available in power ratings of 24 and 28 kW with reduced NOx emissions <56 mg/kWh.

Characteristics:

• Double exchanger: domestic hot water production with plate exchanger for greater resistance to limescale formation
• CTR system for faster achievement of the desired comfort and a reduction in consumption and temperature variations in the heating elements
• 8 liter expansion tank
• Low consumption circulator (EEI≤0.20)
• Antifreeze function that protects the heating and domestic hot water circuits down to 0 °C
• Standard thermoregulation on the boiler card in combination with the external probe (optional)
• Can be interfaced to the Remote Control Panel
• Hydraulic fittings available as accessory kit
• Methane operation as standard with the possibility of conversion to LPG (G31), this modification is the responsibility of the installer or technical assistance service
• IP X5D electrical protection rating
