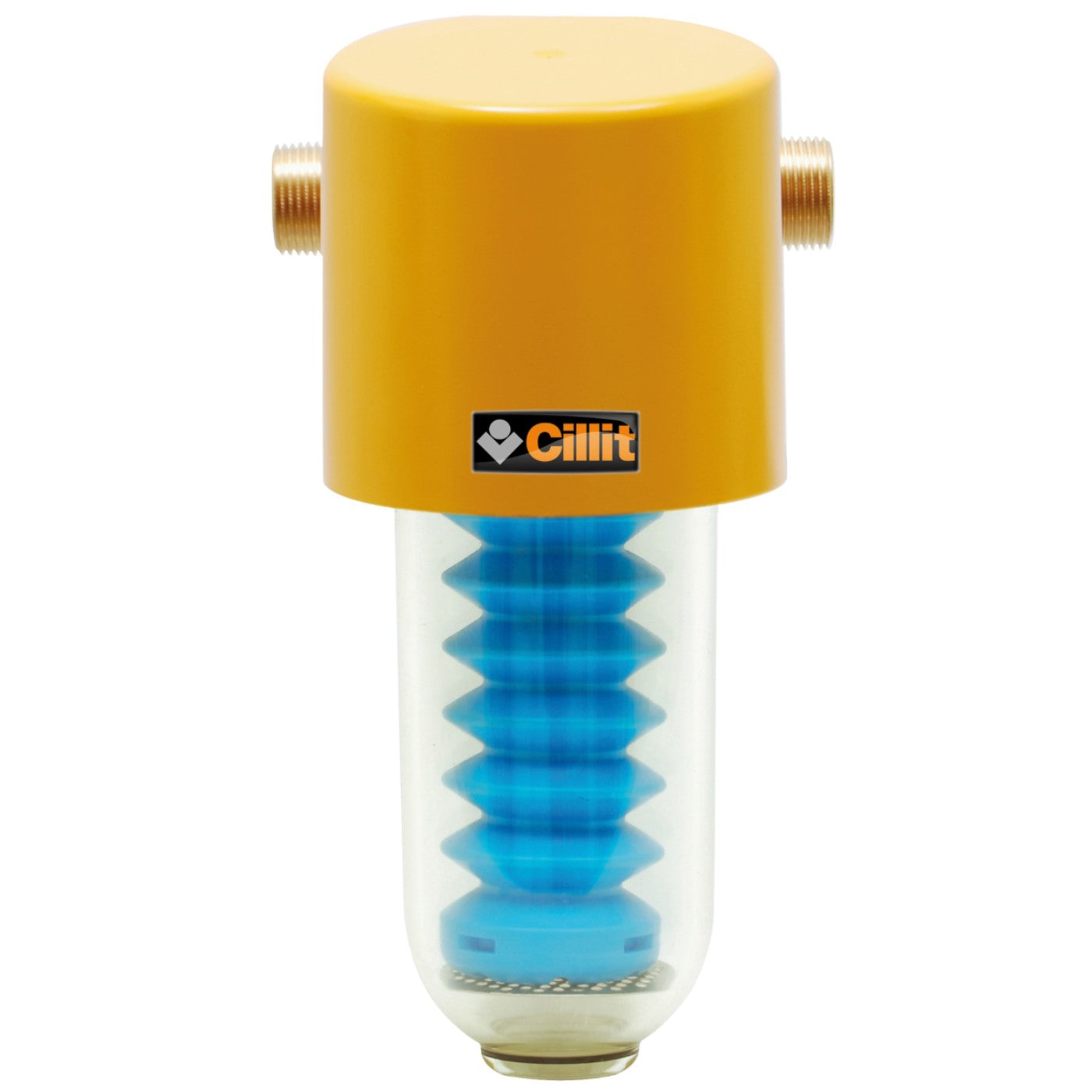

Chillichemie Dispenser Model Cillit Immuno 421 Code 10009AA

Technical features

• Product Code: 10009AA
• Model: Cillit Immuno 421
• Fittings Max. nominal flow rate: 11/4”
• Max. nominal flow rate: 4.2
• Working pressure: 10
• Cillit® 55 MH Universal charge: 0.350
• Approximate autonomy: 150
• Min./max. temperature water: 5-30
• Min./max. temperature environment: 5-40

Overall dimensions

(mm) ABC Cillit® Immuno 181: A)230 B)165 C)165

General characteristics

Limescale encrustations, corrosion, restoration.

The Cillit® Immuno precision dispensers are patented and represent, at the current state of the art, the only dispenser capable of guaranteeing very high precision in dosing, even in the case of highly variable flow rates and therefore protecting the components from limescale encrustations and corrosion. systems with a simultaneous sanitizing effect, gradually reducing limescale encrustations and existing encrustations over time, thus once again improving the correct heat exchange and therefore energy savings prescribed by Presidential Decree no. 59/09.

In particular, the use is foreseen in the following cases:

• hot water producers
• wall-mounted boilers, bithermic boilers on the hot water consumption side
• boiler - sanitary and plumbing systems for hot and cold water
• cooling circuits with disposable water
• cooling circuits with partially recycled water

Warnings

Do not expose the dispenser to frost, direct sunlight or bad weather. Prevent oils, solvents, alcohol, acidic detergents and other exhaling chemical substances, as well as heat sources above 40°C from coming into contact with the appliance. The water pressure in the network must not exceed the maximum allowed; If necessary, install a pressure reducer upstream of the dispenser. For correct management and operation we recommend having a check carried out at least twice a year.
