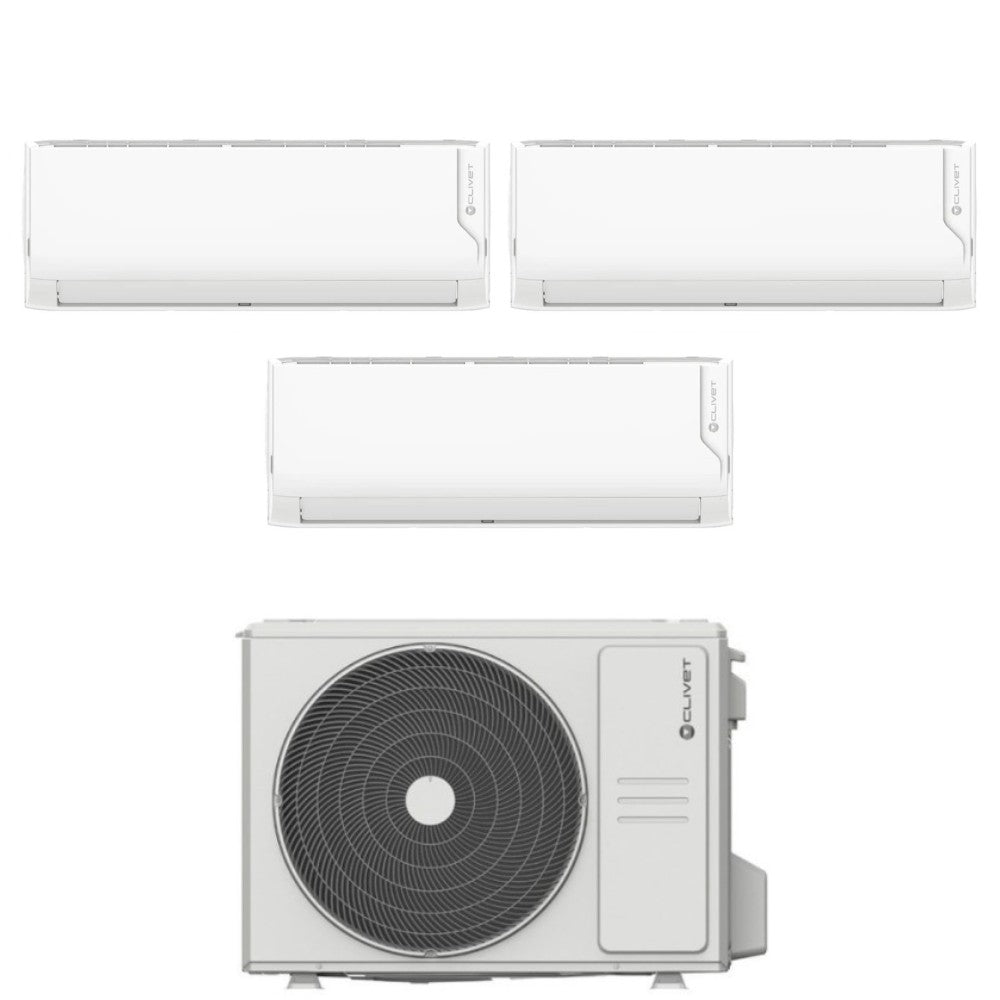

Clivet Trial Split Inverter Air Conditioner CRISTALLO 9+9+12 series with MU2-Y 79M R-32 Integrated Wi-Fi 9000+9000+12000

Clivet Trial Split Inverter Air Conditioner CRISTALLO 9+9+12 series with MU2-Y 79M R-32 Integrated Wi-Fi 9000+9000+12000

€1.716,75
Prijs met korting  €1.716,75 Normale prijs  €1.888,95
Ga direct naar de productinformatie
Clivet Trial Split Inverter Air Conditioner CRISTALLO 9+9+12 series with MU2-Y 79M R-32 Integrated Wi-Fi 9000+9000+12000

Clivet Trial Split Inverter Air Conditioner CRISTALLO 9+9+12 series with MU2-Y 79M R-32 Integrated Wi-Fi 9000+9000+12000

€1.716,75
Prijs met korting  €1.716,75 Normale prijs  €1.888,95

Technical features

Internal units

1) Model

  • Indoor unit catalog code: 2x IM2-XY 27M
  • Power: 9000 btu/h
  • Cooling capacity: 2.64 kW
  • Heating capacity: 2.93 kW
  • Treated air: 259~429~521 m 3 /min
  • Sound power level: 54 dB(A)
  • Sound pressure level: 20~37 dB(A)
  • Liquid pipe diameter: 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Dimensions (WxDxH): 722x187x290 mm
  • Weight: 7.4 kg
  • Built-in Wi-Fi

2) Model

  • Indoor unit catalog code: 1x IM2-XY 35M
  • Power: 12000 btu/h
  • Cooling capacity: 3.52 kW
  • Heating capacity: 3.81 kW
  • Treated air: 294~478~539 m 3 /min
  • Sound power level: 56 dB(A)
  • Sound pressure level: 21~38 dB(A)
  • Liquid pipe diameter: 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Dimensions (WxDxH): 802x189x297 mm
  • Weight: 8.2 kg
  • Built-in Wi-Fi

External unit

  • Outdoor unit catalog code: MU2-Y 79M
  • Number of connectable internal units: Up to 3 internal units

Energy efficiency

  • Cooling energy efficiency class: A++
  • Heating energy efficiency class: A+

Performance

  • Cooling capacity: 7.9 kW
  • Heating capacity: 8.2 kW
  • Sound power level: 65 dB(A)
  • Sound pressure level: 59 dB(A)

Electrical data

  • Power (V/Hz/Φ): 220~240/50/1
  • Refrigerant gas: R-32
  • Guaranteed temperature range:
  • - Cooling: -15° ~ 50° C
  • - Heating: -15° ~ 30° C
Installation data
  • Liquid tube diameter: 6.35 mm (1/4") x3
  • Gas pipe diameter: 9.52 mm (3/8") x3
  • Maximum pipe length: 60 m
  • Maximum height difference between internal unit and external unit: 10 m

Dimensions and weight

  • External unit dimensions (WxDxH): 845x363x702 mm
  • External unit weight: 53.0 kg

Multisplit outdoor unit Why choose outdoor UNIT-SM R-32?

✓ From 1 to 5 connectable internal units, even of different types
✓ Quick installation: automatic connection error correction
✓ Wide operating range: Heating -15°C÷+24°C; Cooling -15°C÷+50°C

The unit reassigns communication, correcting any wiring errors. There is the possibility of inserting other internal machines after the first installation



Clivet CRYSTAL series

✓ Standard integrated Wi-Fi kit for remote management with NetHome Plus application for Android and iOS and Google Assistant
✓ Clean and elegant rounded design
✓ MonoSplit/MultiSplit compatible


Multidirectional flow

The air conditioner can distribute the air flow in a multi-directional manner: to best direct the flow into the environment, in fact, it electronically regulates the direction of the fins both horizontally and vertically.

You can use the standard control to easily set the desired flap position.

Follow-Me function

The system gives priority to the temperature sensor in the remote control and adjusts accordingly.

Self-cleaning function

It dries and cleans the internal unit exchanger, preventing the emission of bad odors into the environment.

Crystal 2.jpg


Product guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
