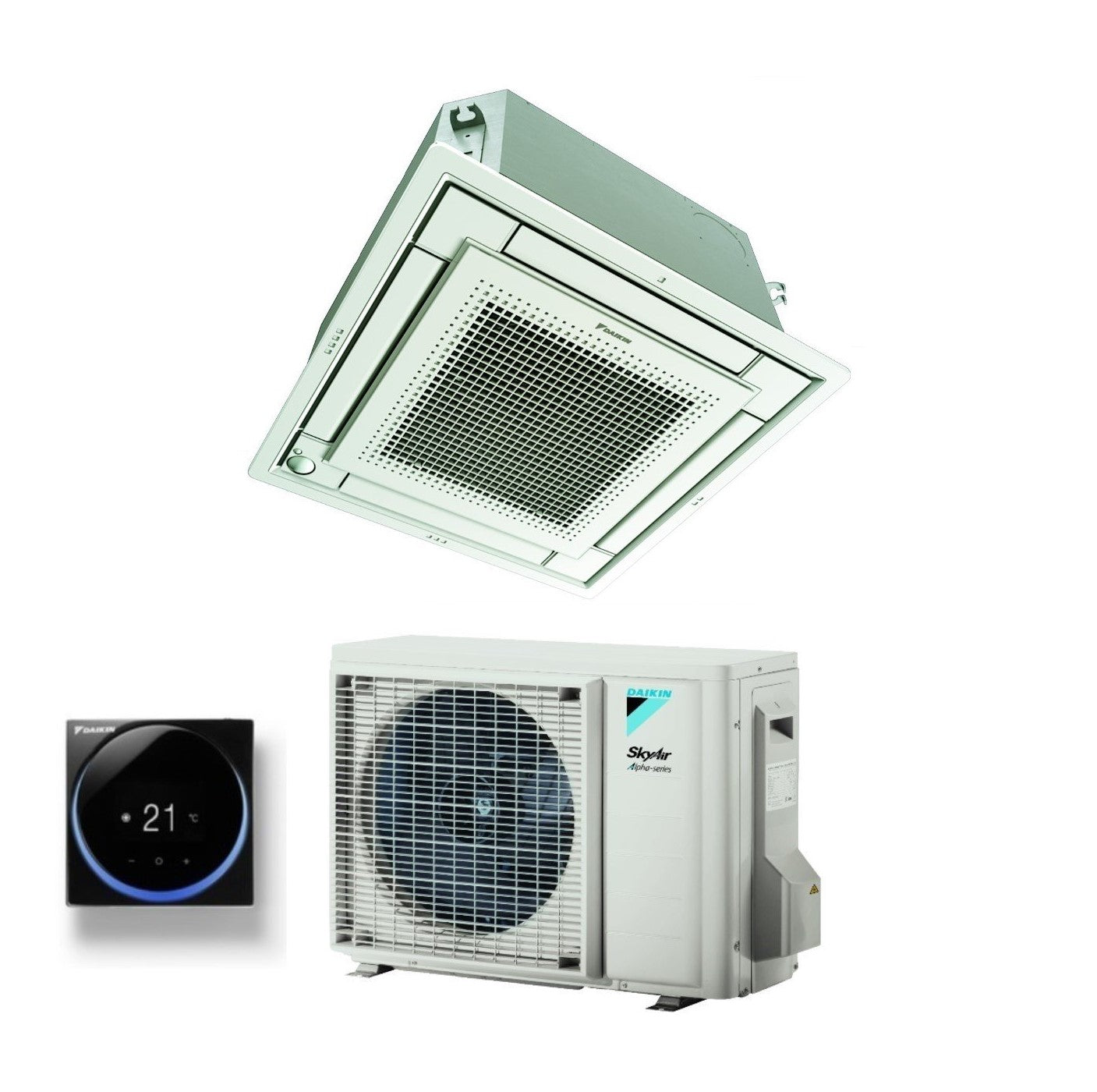

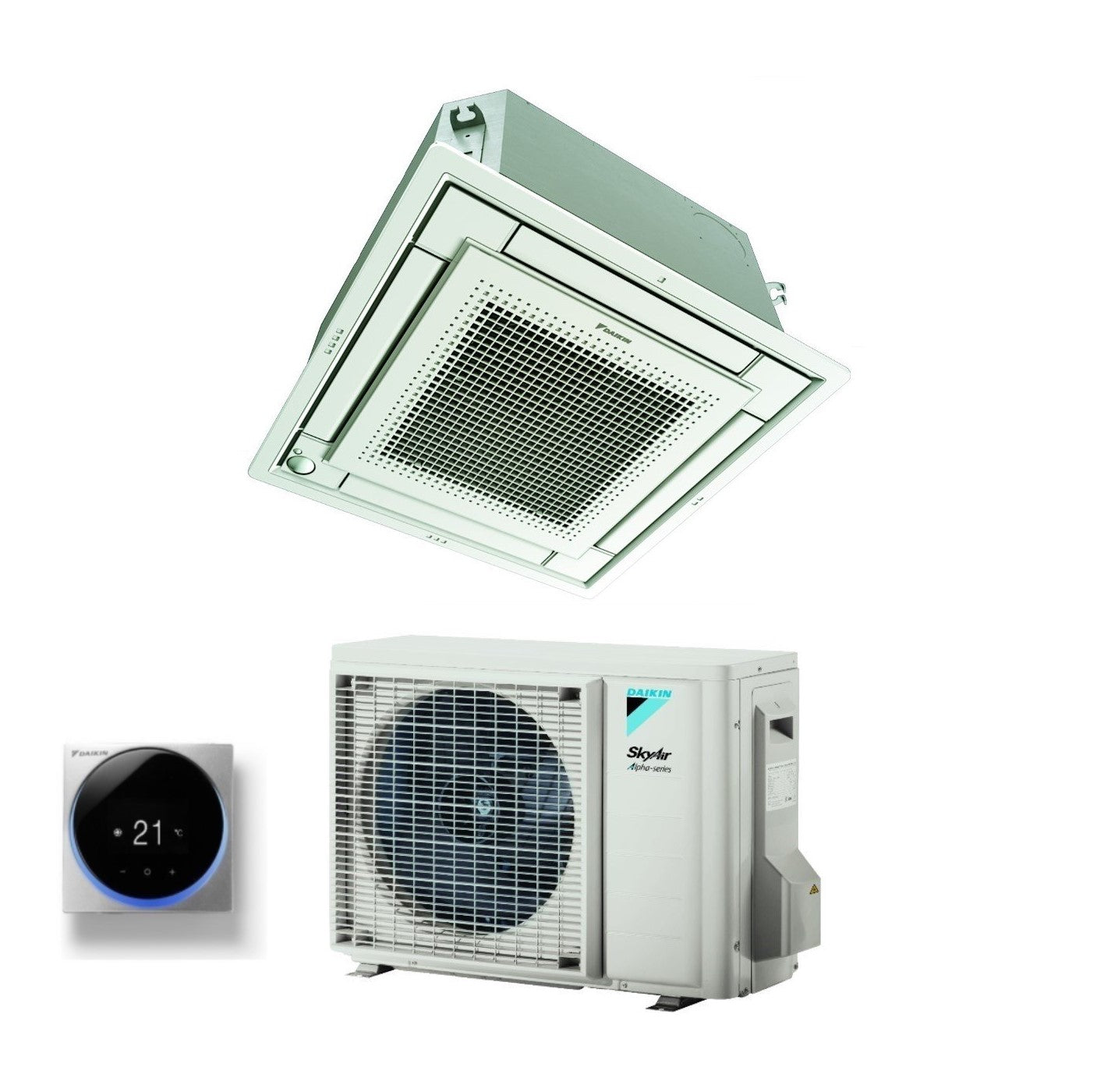

Daikin Fully Flat Cassette Air Conditioner 18000 BTU FFA50A + RZAG50A R-32 Optional Wi-Fi with Wired Control and Grille Included
Comando a filo Madoka nero BRC1H52K
€2.659,65
Prijs met korting
€2.659,65
Normale prijs
Ga direct naar de productinformatie
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Daikin Fully Flat Cassette Air Conditioner 18000 BTU FFA50A + RZAG50A R-32 Optional Wi-Fi with Wired Control and Grille Included
€2.659,65
Prijs met korting
€2.659,65
Normale prijs
ATTENTION ! The product will be available to order and will be shipped in 10 working days!
Technical features
Model:
- Indoor unit catalog code: FFA50A9
- Outdoor unit catalog code: RZAG50A
- Decorative Panel Code: BYFQ60CW
- Power: 18000 Btu
- Optional Wi-Fi card (Code BRP069A81 )

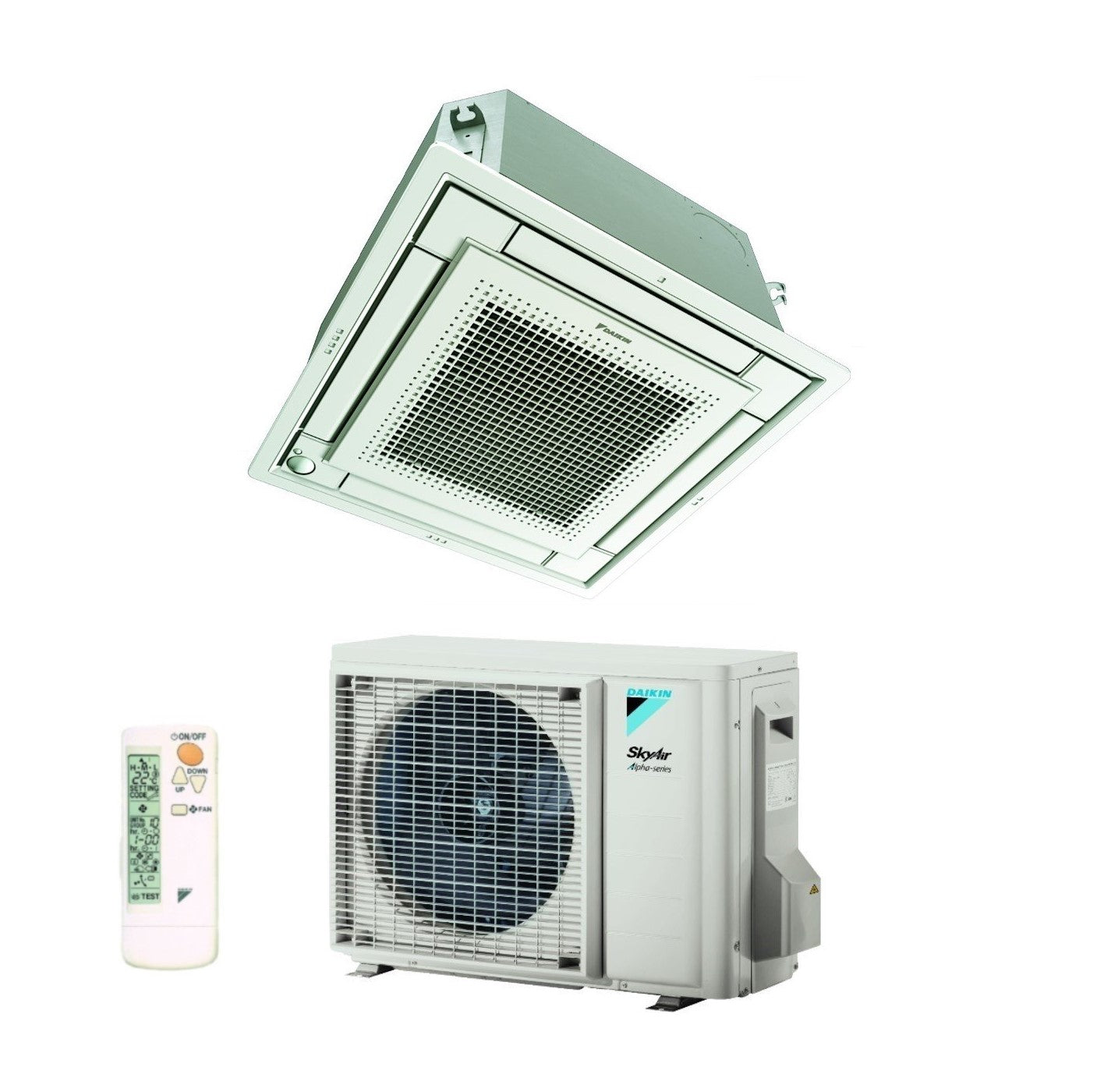

- Optional infrared remote control (Code BRC7F530W/S )

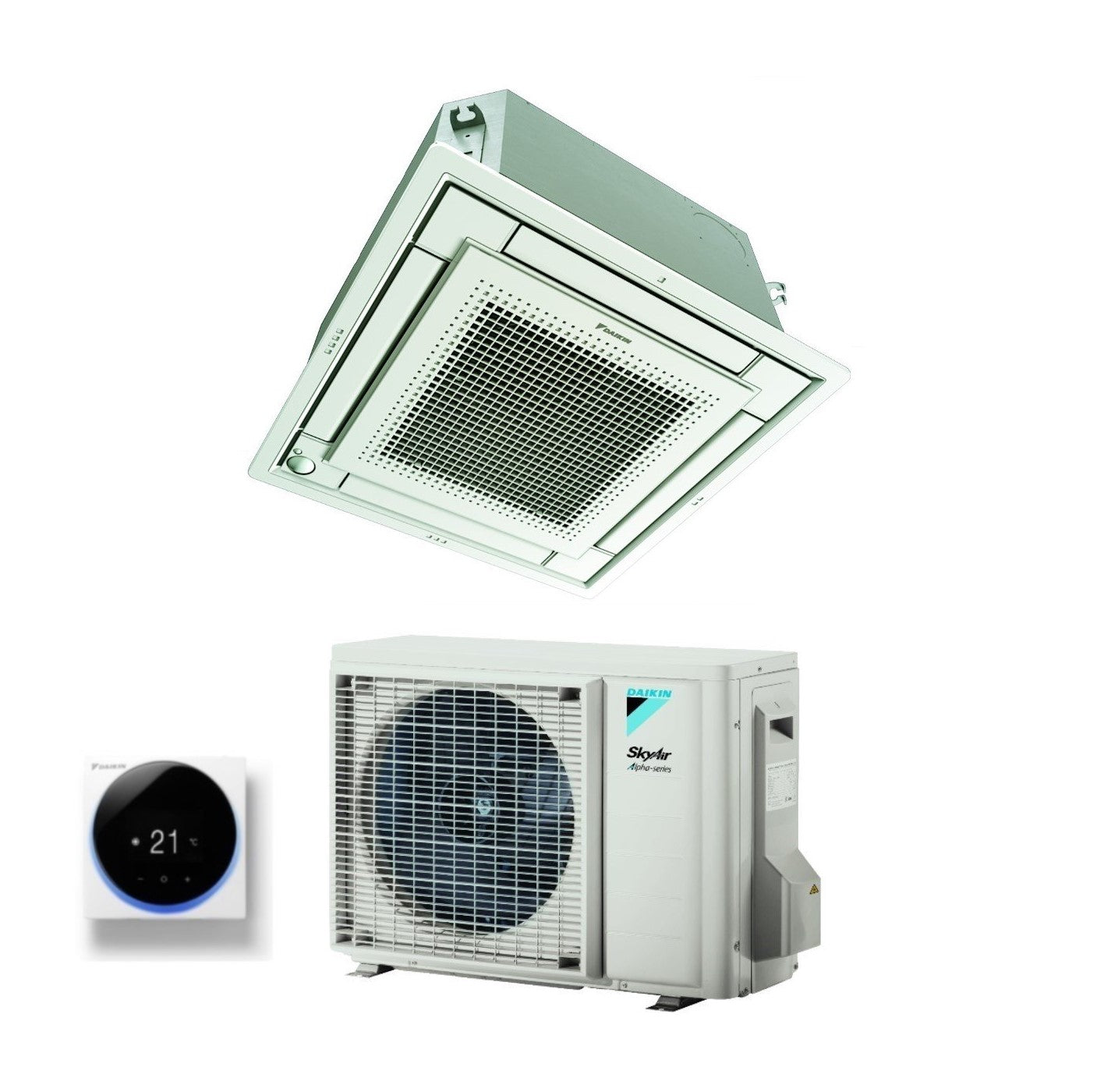

- White Modoka Wire Control Included (Code BRC1H519W )
- Modoka Silver Wired Control Optional (Code BRC1H519S )
- Optional Black Modoka Wire Control (Code BRC1H519K )
Energy efficiency
- SEER: 6.30
- SCOP: 4.01
- Cooling Energy Efficiency Class: A++
- Heating Energy Efficiency Class: A+
- Annual Energy Consumption in Cooling: 278 kWh/a
- Annual Energy Consumption in Heating: 1501 kWh/a
Performance
- Cooling Capacity: 5.0 kW
- Heating Capacity: 5.8 kW
- Indoor Unit air flow: 10.0 m 3 /min
- Indoor Unit Sound Power Level: 56 dB(A)
- External Unit Sound Power Level: 63 dB(A)
- Indoor Unit Sound Pressure Level: 27~39 dB(A)
- External Unit Sound Pressure Level: 49 dB(A)
Characteristics:
- Power (V/Hz/Φ): 220~240/50/1
- Refrigerant gas: R-32
- Operating range
- - Cooling: -20° ~ 52°C
- - Heating: -20° ~ 24°C
Installation Data
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 12.70 mm (1/2")
Dimensions and weight
- Internal Unit Dimensions (HxWxD): 260x575x575 mm
- Internal Unit Weight: 17.5 Kg
- External Unit Dimensions (HxWxD): 734x940x376 mm
- External Unit Weight: 52 Kg
- Panel dimensions (HxWxD): 55x700x700 mm
- Panel weight: 2.7 kg

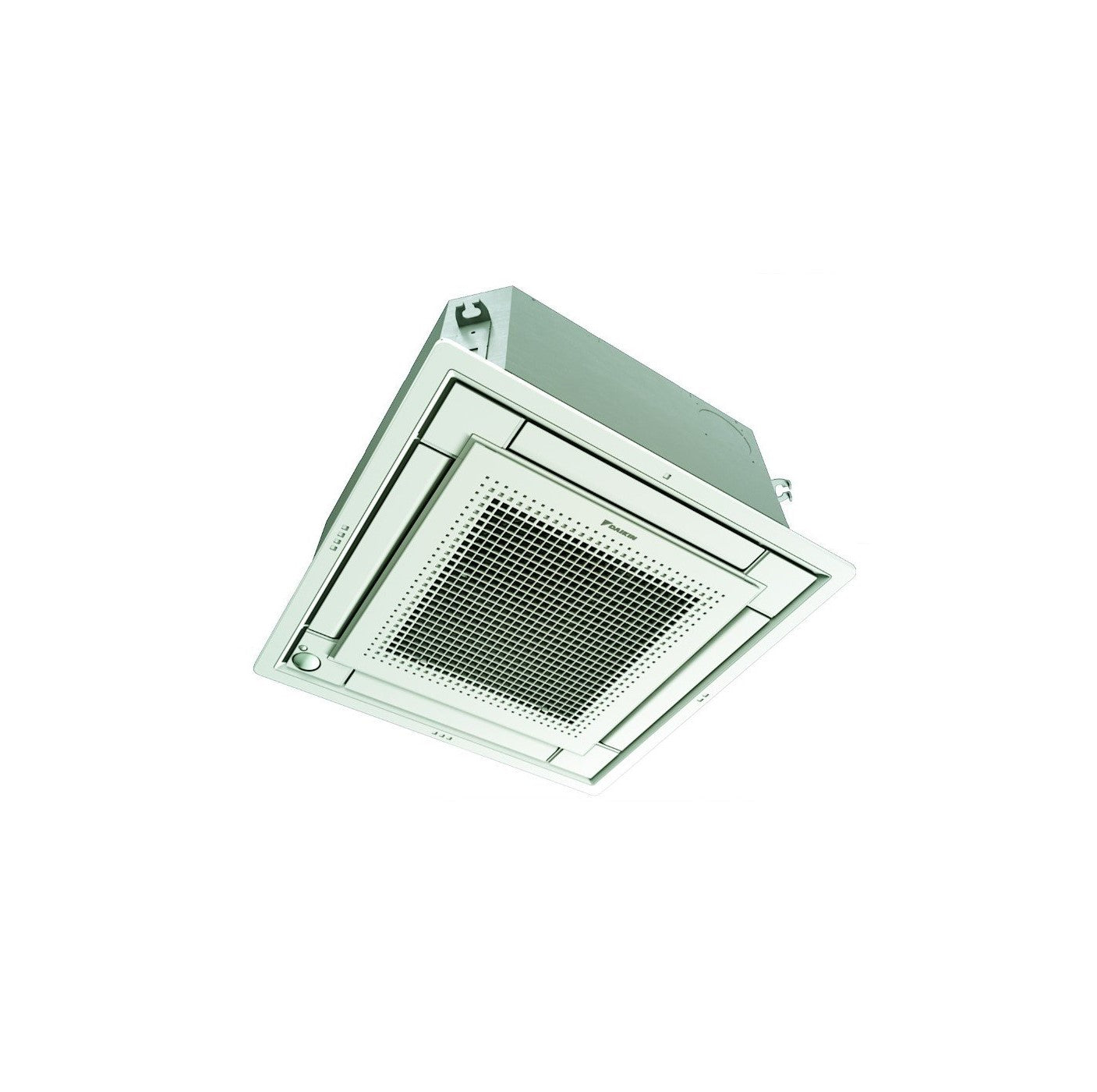

Ultra-flat cassette FFA-A
Unique design on the market that allows for perfectly flush installation in the ceiling
Intelligent Sensors
The optional intelligent sensors detect the presence of people and direct the air away from them to eliminate cold drafts. The system automatically switches to energy saving mode or turns off the unit when it detects no people in the environment. An additional floor sensor checks that the temperature remains constant from floor to ceiling.
Exclusive award-winning design
Designed in Europe for Europe , Daikin's Fully Flat cassette integrates seamlessly into standard ceiling panels. The compact design protrudes from the ceiling by only 8 mm. Fully Flat obtained the Universal Design Award in 2014 and the German Design Award Special in 2016. The discreet design of the Fully Flat Cassette, available in white and silver, makes it ideal for any environment.
Individual flap controls
The remote- controlled adjustable supply deflectors allow you to create different air flow distribution screens to allow installation in corners, on walls and even in irregularly shaped environments . This feature is particularly useful when rearranging rooms, as it allows you to change the airflow without moving the unit .
Silent operation
At just 25 dB(A) , the Fully Flat Cassette is the quietest unit currently on the market
Product Features
• Perfectly flush integration with standard ceiling panels, leaving only 8 mm
• Maximum efficiency: Energy classes up to A++ in both cooling and heating modes, compressor which significantly increases efficiency
• Unique combination of design and technology, with elegant white or silver and white finishes
• The outdoor units are equipped with a swing-type compressor, known for its low noise and high energy efficiency characteristics
• Choosing an R-32 product reduces the environmental impact by 68% compared to R-410A systems, leads to a direct reduction in energy consumption thanks to high energy efficiency and has a lower refrigerant charge
• Suitable for highly sensitive applications for infrastructure cooling
• The combination with R-32 Bluevolution technology reduces the environmental impact by 68% compared to R-410A systems, leads to a direct reduction in energy consumption thanks to high energy efficiency and has a lower refrigerant charge - up to 16 % in less
• Two optional smart sensors improve energy efficiency and comfort
• Reuse of existing R-22 or R-407C technology
• Individual flap control: flexibility to adapt to the internal layout of any room without having to move the unit!
• Range of unified indoor units for R-32 and R-410A
• Guarantees operation in both heating and cooling modes down to -20°C
• Reduced energy consumption thanks to the specially designed small diameter tube exchanger, DC fan motor and condensate drain pump
• Optional external air intake
• Maximum pipe length up to 50m
• Available exclusively for monosplit systems (capacity from 35 to 60)
• The supply branch allows you to optimize air distribution in irregularly shaped rooms or to supply air to small adjacent rooms
• The standard condensate drain pump with a head of 630 mm increases flexibility and speed of installation
