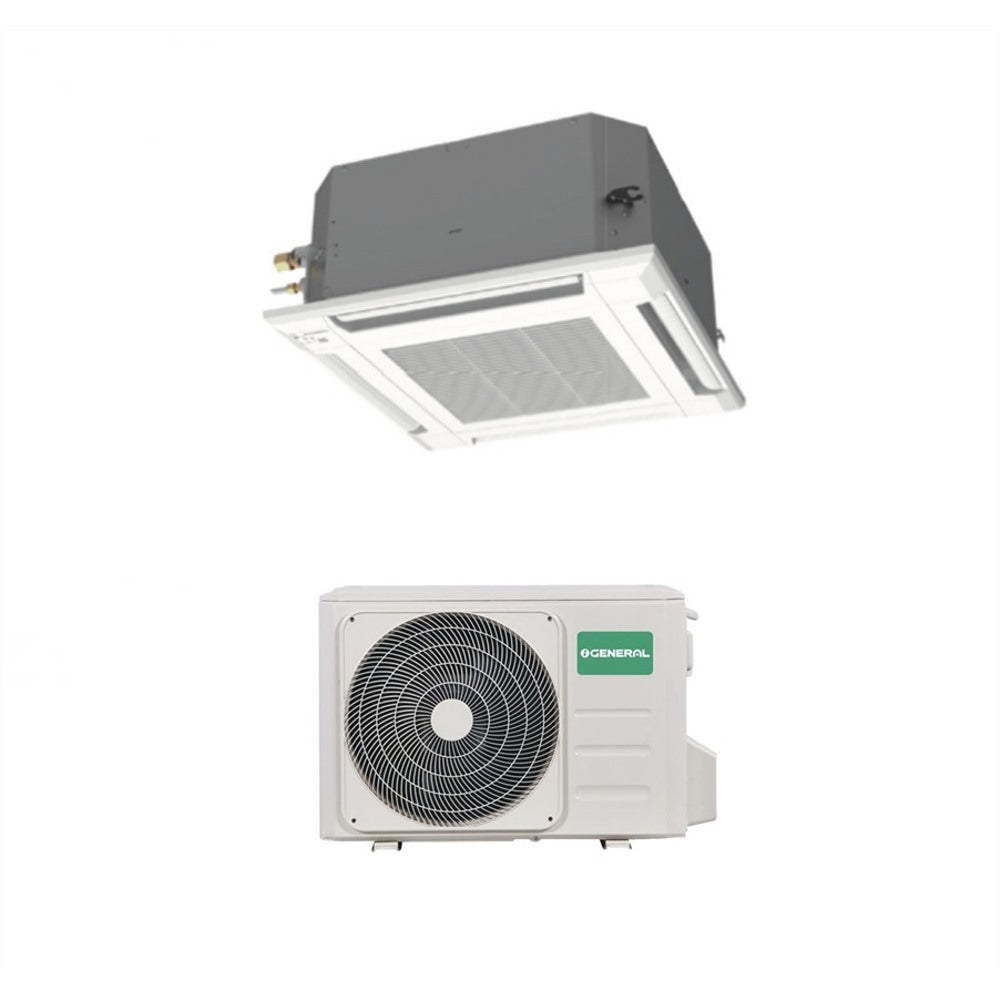

Fujitsu General Air Conditioner Circular Air Flow Cassette Inverter 22000 btu AUXG22KRLB With Control and Panel
Fujitsu General Air Conditioner Circular Air Flow Cassette Inverter 22000 btu AUXG22KRLB With Control and Panel
PRODUCT AVAILABLE TO ORDER!
Technical features
Model
- Indoor unit catalog code: AUXG22KRLB
- Outdoor unit catalog code: AUXG22KBTB
- Type: Cassette Circular air flow
- Power: 22000 btu/h
Energy efficiency
- SEER : 7.0
- SCOP: 4.4
- Seasonal Energy Efficiency Class in Cooling: A++
- Seasonal Energy Efficiency Class in Heating: A+
- Annual energy consumption Cooling: 300 kWh/a
- Annual energy consumption Heating: 1527 kWh/a
Performance
- Dehumidification: 2.2 l/h
- Nominal cooling capacity: 6.0 kW
- Nominal heating capacity: 7.0 kW
- Power absorbed in cooling: 1.71 kW
- Power absorbed in heating: 1.82 kW
- Internal Cooling unit sound pressure: 33/32/31/28 dB(A)
- Indoor Heating unit sound pressure: 33/32/31/28 dB(A)
- External unit sound pressure: 51 dB(A)
- Indoor unit sound power: 49 dB(A)
- External unit sound power: 63 dB(A)
Characteristics
- Power (V/Hz/Φ): 230/50/1
- Refrigerant gas: R-32
- Liquid Pipe Diameter: 6.35 (1/4")
- Gas Pipe Diameter: 12.70 (1/2")
- Exhaust pipe diameter (internal/external): 25/32 m
- Max Pipe Length: 30m
- Maximum height difference: 25m
Dimensions and weight
- Internal Unit Dimensions (HxWxD): 246x840x840 mm
- Internal Unit Weight: 23 kg
- External Unit Dimensions (HxWxD): 632x799x290 mm
- External Unit Weight: 38 kg

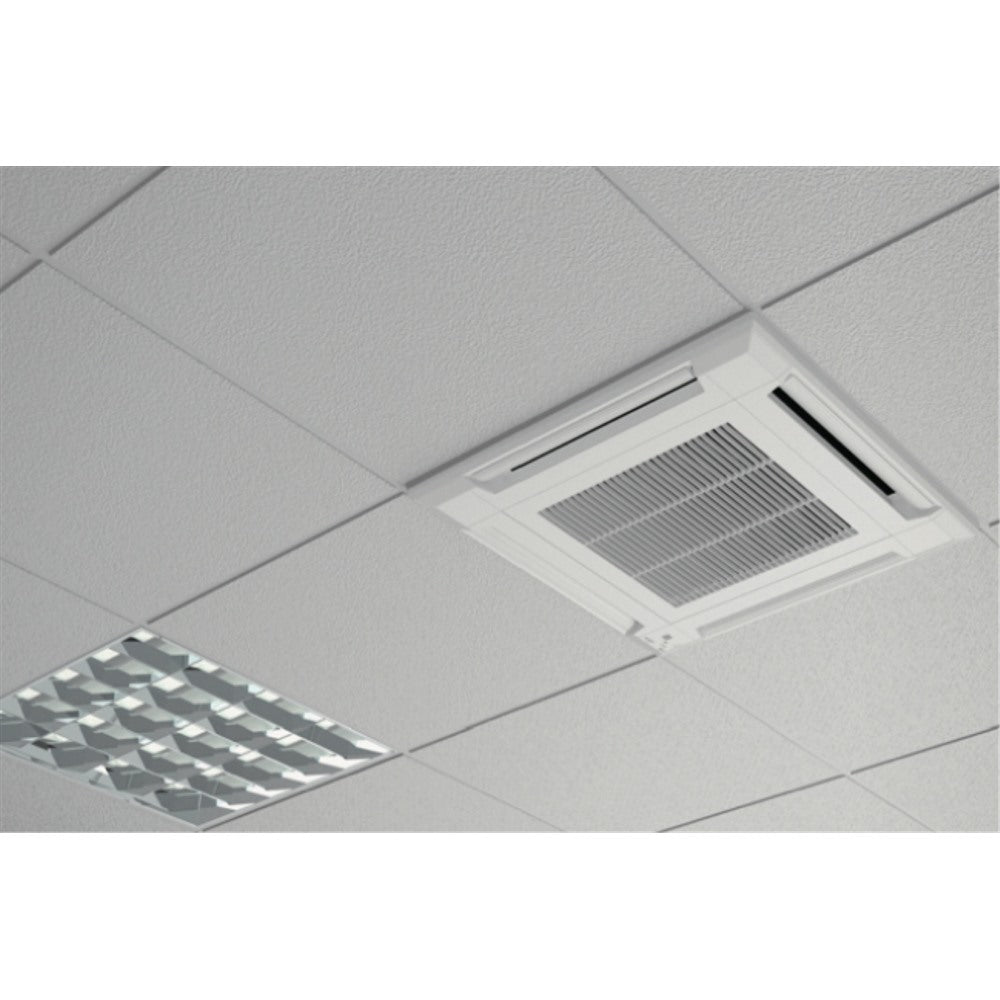

CASSETTE SYSTEM
This cassette model sends air in four directions to climate the entire room evenly. Adaptable to interiors. Circular flow models distribute airflow 360° thanks to a turbo fan motor and fin design that ensure smooth airflow. Thanks to the wired Touch remote control ( UTY-RNRGZ3 ) the position of each flap can be set differently.
KRLB SERIES
The AUXG_KRLB series with its unique and elegant design represents an excellent product in this category; It has high performance in terms of energy efficiency and low noise impact. This series is characterized by the possible optional addition of the 'Presence Sensor' ( UTY-SHZXC ).
This feature increases energy saving which automatically starts upon detection of a person's movement. It is possible to select two saving modes: energy or shutdown.
External low temperature operation
Product Warranty
All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
