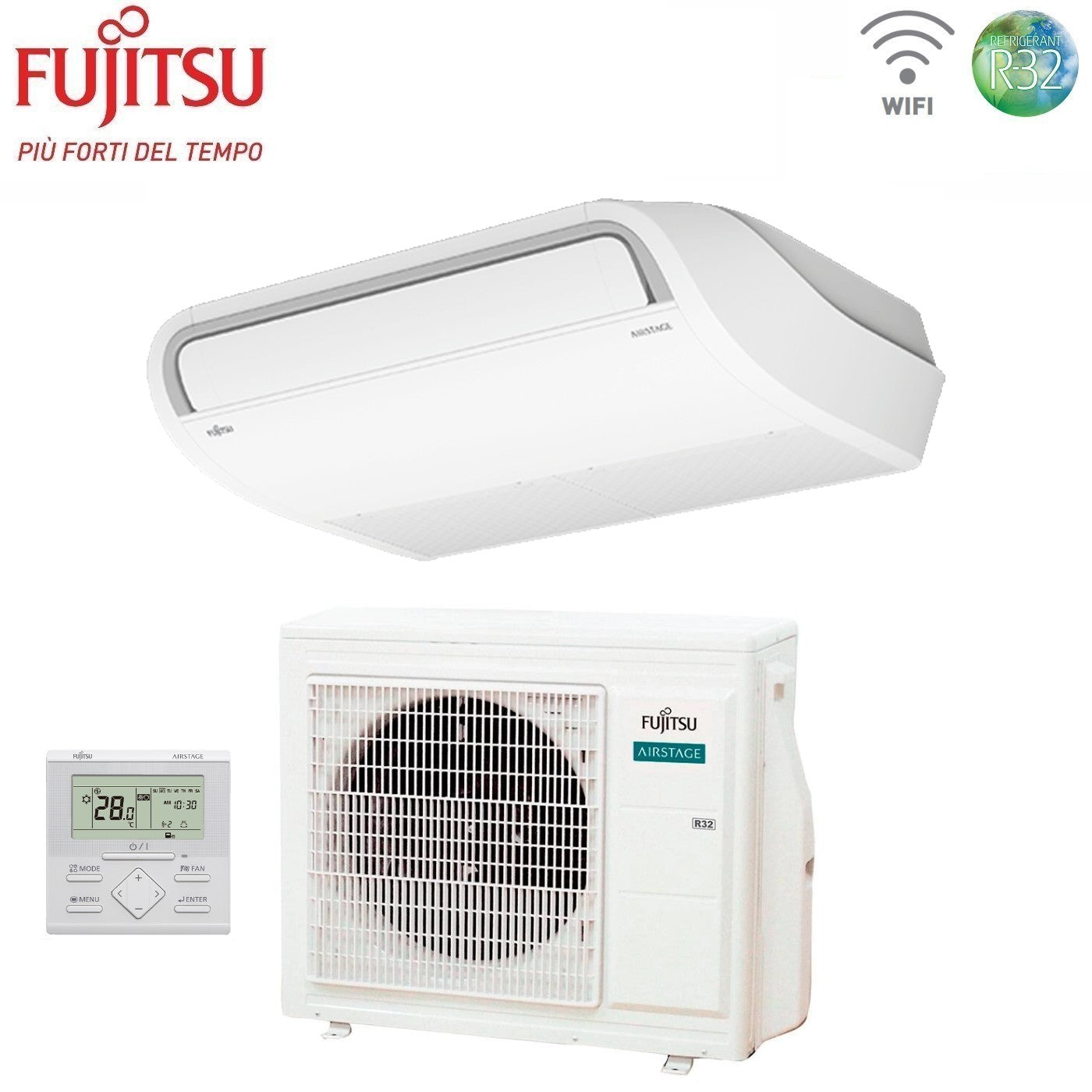

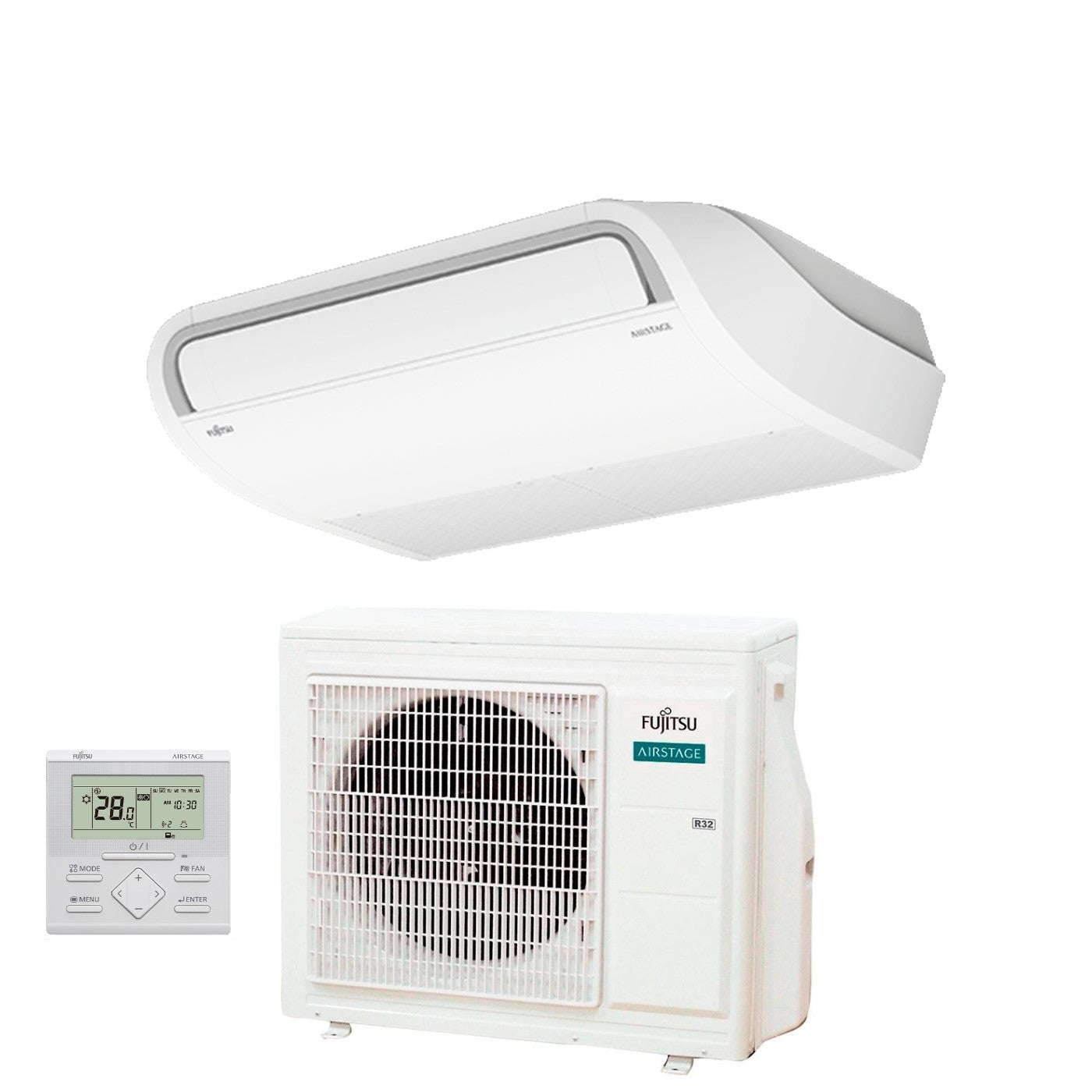

Fujitsu Inverter Ceiling Air Conditioner ECO KR series 36000 Btu ABYG36KRTA + AOYG36KQTA R-32 3NGF83105 Wi-Fi Optional Class A+/A Three-phase with standard wired control
€2.710,05
Prijs met korting
€2.710,05
Normale prijs
Ga direct naar de productinformatie
Fujitsu Inverter Ceiling Air Conditioner ECO KR series 36000 Btu ABYG36KRTA + AOYG36KQTA R-32 3NGF83105 Wi-Fi Optional Class A+/A Three-phase with standard wired control
€2.710,05
Prijs met korting
€2.710,05
Normale prijs
Technical features
- Indoor unit product code: ABYG36KRTA
- Outdoor unit product code: AOYG36KQTA
- Standard wire control code: UTY-RLRY
- Kit code: 3NGF83105
- Power: 36000 Btu
- Optional wi-fi card (Code UTY-TFSXZ1)
Optional commands
- Compact remote control: UTY-RCRYZ1 (code 3IVF9044)
- Receiver and remote control kit: UTY-LBTYH (code 3NDN9027)
- Touch Panel remote control: UTY-RNRYZ5 (code 3IVF9041_50)
- Simplified wired control: UTY-RSRY (code 3IVF9090)
Energy efficiency
- SEER : 5.6
- SCOP: 3.9
- Cooling energy efficiency class: A+
- Heating energy efficiency class: A
- Annual energy consumption in cooling: 594 kWh/a
- Annual energy consumption in heating: 3117 kWh/a
Performance
- Cooling capacity: 9.5 kW
- Heating capacity: 10.8 kW
- Cooling absorption: 3.13 kW
- Heating absorption: 3.03 kW
- Indoor unit max air flow: 1850 m 3 /min
- Indoor unit sound power level: 59/59 dB(A)
- External unit sound power level: 70/70 dB(A)
- Indoor unit sound pressure level: 44~59 dB(A)
- Outdoor unit sound pressure level: 55~70 dB(A)
Electrical data
- Power supply (V,Hz, Ø): Three-phase ~400V, 50Hz
- Refrigerant gas: R32
- Operating range
- - Cooling: -10° ~ 46° C
- - Heating: -15° ~ 24° C
Installation data
- Liquid pipe diameter: 9.52 mm
- Gas pipe diameter: 15.88 mm
- Maximum pipe length: 30 m
- Maximum height difference Internal unit / External unit: 30 m
Dimensions and weight
- Indoor unit dimensions (HxWxD): 235×1700×705 mm
- Internal unit weight: 38 kg
- External unit dimensions (HxWxD): 788×940×320 mm
- External unit weight: 53 kg
Description
Flexible installation
The pipes can pass inside the unit and exit easily from five possible directions.
Easy Installation
The internal unit can be easily installed on the ceiling thanks to a new anchoring system.
Easy Maintenance
Maintenance is facilitated by the detachable front panel, the presence of a condensate collection tray and a large lateral access.
