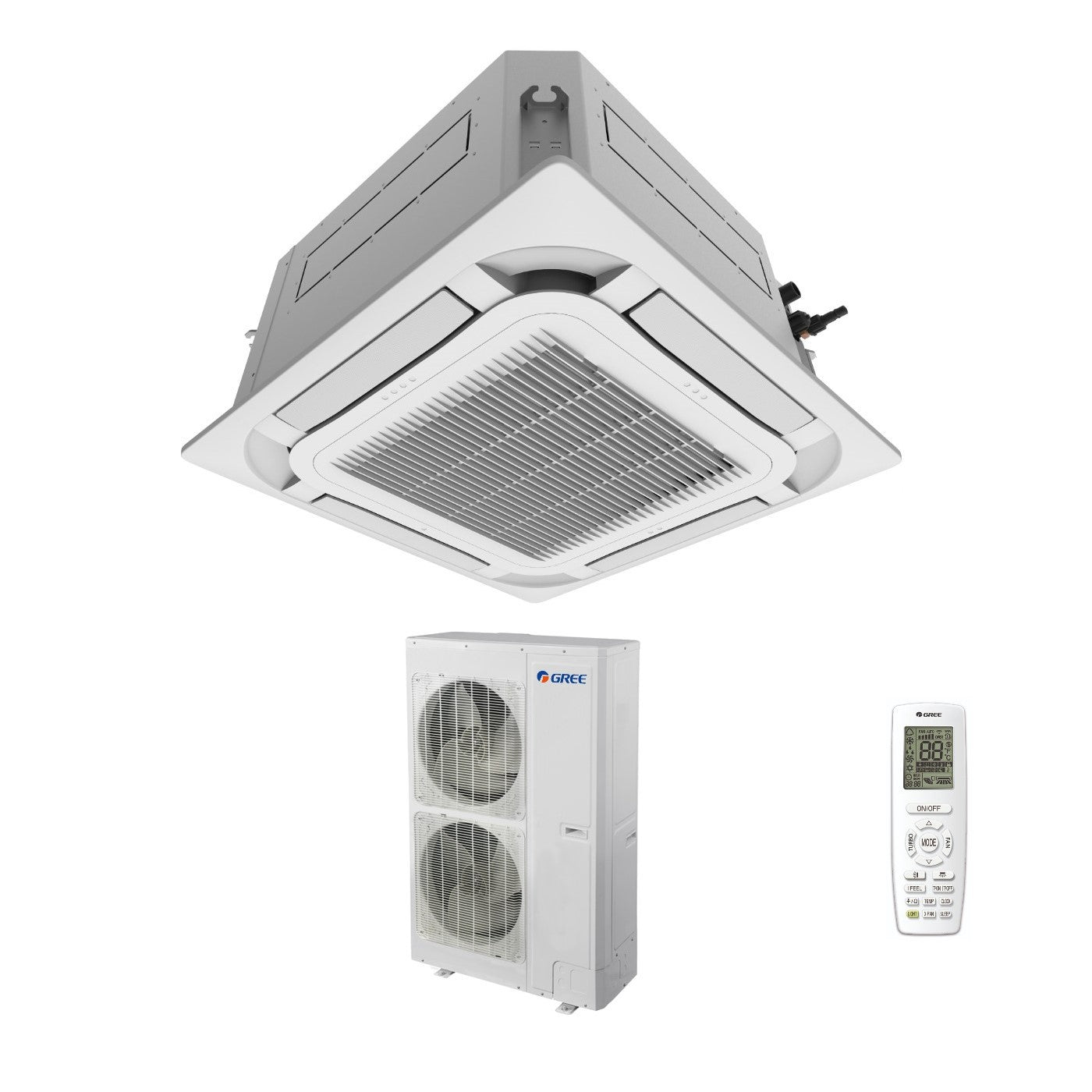

Gree 8-way cassette air conditioner 60000 Btu GUD160T/AT R-32 Optional three-phase Wi-Fi with remote control and panel included - New
Gree 8-way cassette air conditioner 60000 Btu GUD160T/AT R-32 Optional three-phase Wi-Fi with remote control and panel included - New
Technical features
- Indoor unit catalog code: GUD160T/AT
- Outdoor unit catalog code: GUD160W/NhA-X
- Panel catalog code: TF06
- Power: 60000 Btu
- Wi-Fi Optional: (Code MC20002050)
- Infrared Remote Control Included: YAP1F6
Energy efficiency
- SEER: 241.7%
- SCOP: 143.9%
- Cooling Capacity: 14.50 kW
- Heating Capacity: 17.00 kW
- Cooling absorption: 4.70 kW
- Heating absorption: 4.45 kW
- Indoor Unit Treated Air: 950~1500 m 3 /h
- Indoor Unit Sound Power Level: 46~63 dB(A)
- External Unit Sound Power Level: 71~73 dB(A)
- Indoor Unit Sound Pressure Level: 48~54 dB(A)
- External Unit Sound Pressure Level: 57 dB(A)
Electrical Data
- Power (V,Hz, Ø): 380~415/50/3
- Refrigerant gas: R32
- Operating range
- - Cooling: -20° ~ 48° C
- - Heating: -20° ~ 24° C
- Liquid pipe diameter: 9.52 mm (3/8")
- Gas pipe diameter: 15.88 mm (5/8")
- Maximum length of pipes: 75 m
- Maximum height difference Internal Unit / External Unit: 30 m
Dimensions and weight
- Internal Unit Dimensions Without Panel (HxWxD): 290x840x840 mm
- Internal Unit Weight: 36 Kg
- Panel dimensions (HxWxD): 52x950x950 mm
- Panel weight: 6 kg
- External Unit Dimensions (WxHxD): 1345x900x340 mm
- External Unit Weight: 112 Kg
Gree Compact Cassettes with 360° Air Delivery
• 8-way cassettes for applications in the small commercial / tertiary sectors
• Suitable for shops, offices, meeting rooms, hotels, restaurants, clubs, gyms and open space areas
• Compact and attractive design
• 8-way air delivery, 360° flow, with flap oscillation range between 45 and 80°, differentiated according to the hot/cold mode, for maximum comfort
• The 570 x 570 mm dimensions are ideal for installation in false ceilings from standard 600 x 600 mm modules
• Fan with optimized aerodynamic profiles to guarantee maximum silence
• The condensate drain pump is integrated for a height difference of up to 1000 mm
• Dual room temperature sensors for customizable comfort: selectable return air temperature sensor on the unit or temperature sensor on the wired controller
• Connection to a fresh air intake from the outside is possible
• High energy efficiency, at all powers expressed, both in cold and in heat, especially with a view to operation 365 days a year (seasonal efficiency)
• The special refrigerant valve closing system prevents and excludes the risk of refrigerant leaks due to inappropriate maintenance
• The electrical box has a special design and is made of fireproof material, for maximum protection of the electronic board from fire risks
Wi-Fi Optional
By integrating the kit, which can be purchased separately, it will be possible to remotely control the on/off, mode, temperature, etc. of the unit via the APP installed on your smartphone. to program your comfort at any time, even when you are away from home
External Unit
Characteristics
• Energy class up to A++ in cooling mode and up to A+ in heating mode
• Intelligent compressor frequency regulation, accurate temperature control
• Reliable cooling and heating down to -20°C outside temperature
• Minimization of the noise level thanks to the axial fan
• Rapid achievement of comfort conditions: the unit allows rapid cooling and heating and is able to quickly reach the temperature set by the user
• Intelligent defrost: the unit is able to correctly evaluate the presence of frost on the outdoor unit through a temperature sensor. The objective is to "defrost only when needed", optimizing the heating effect for high environmental comfort
