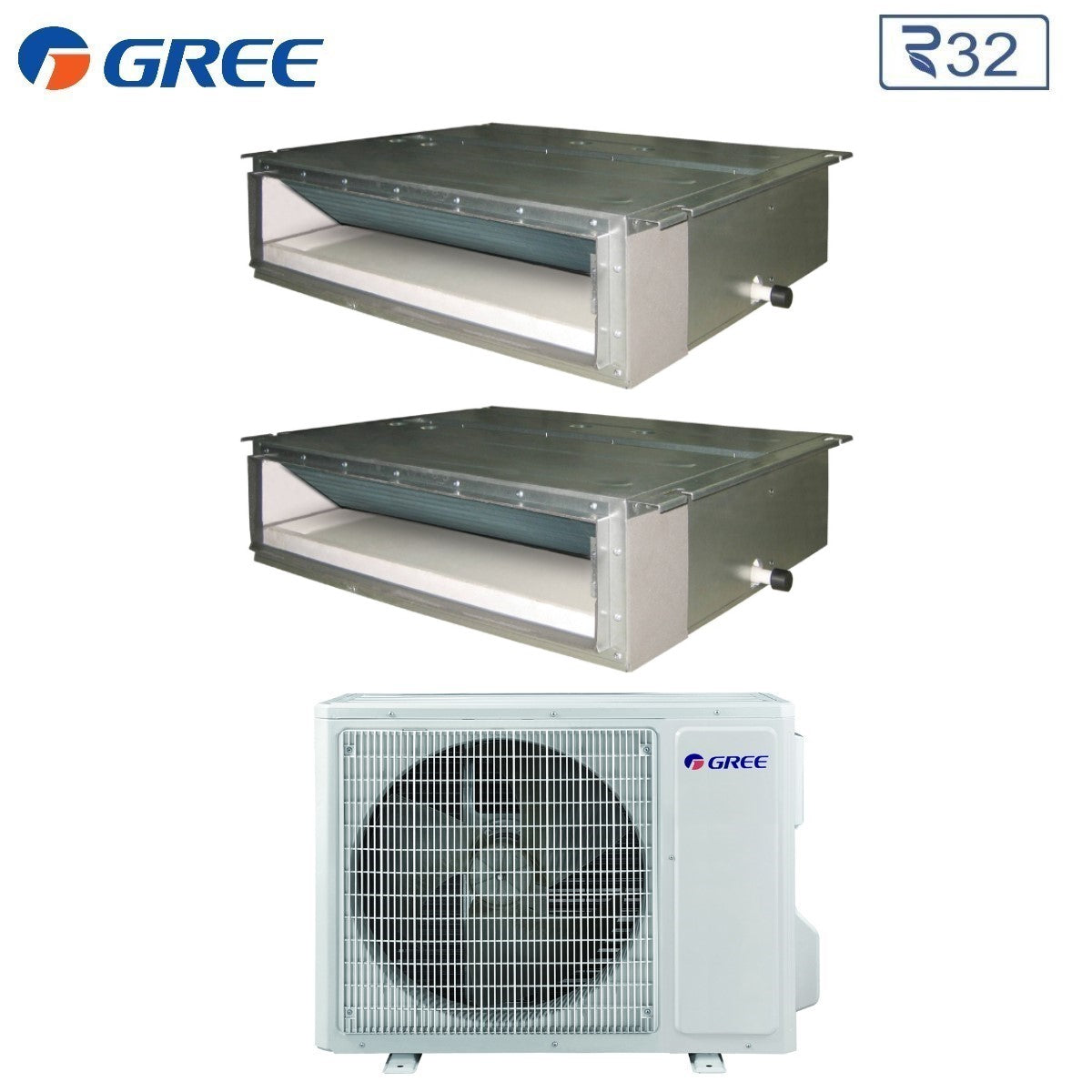

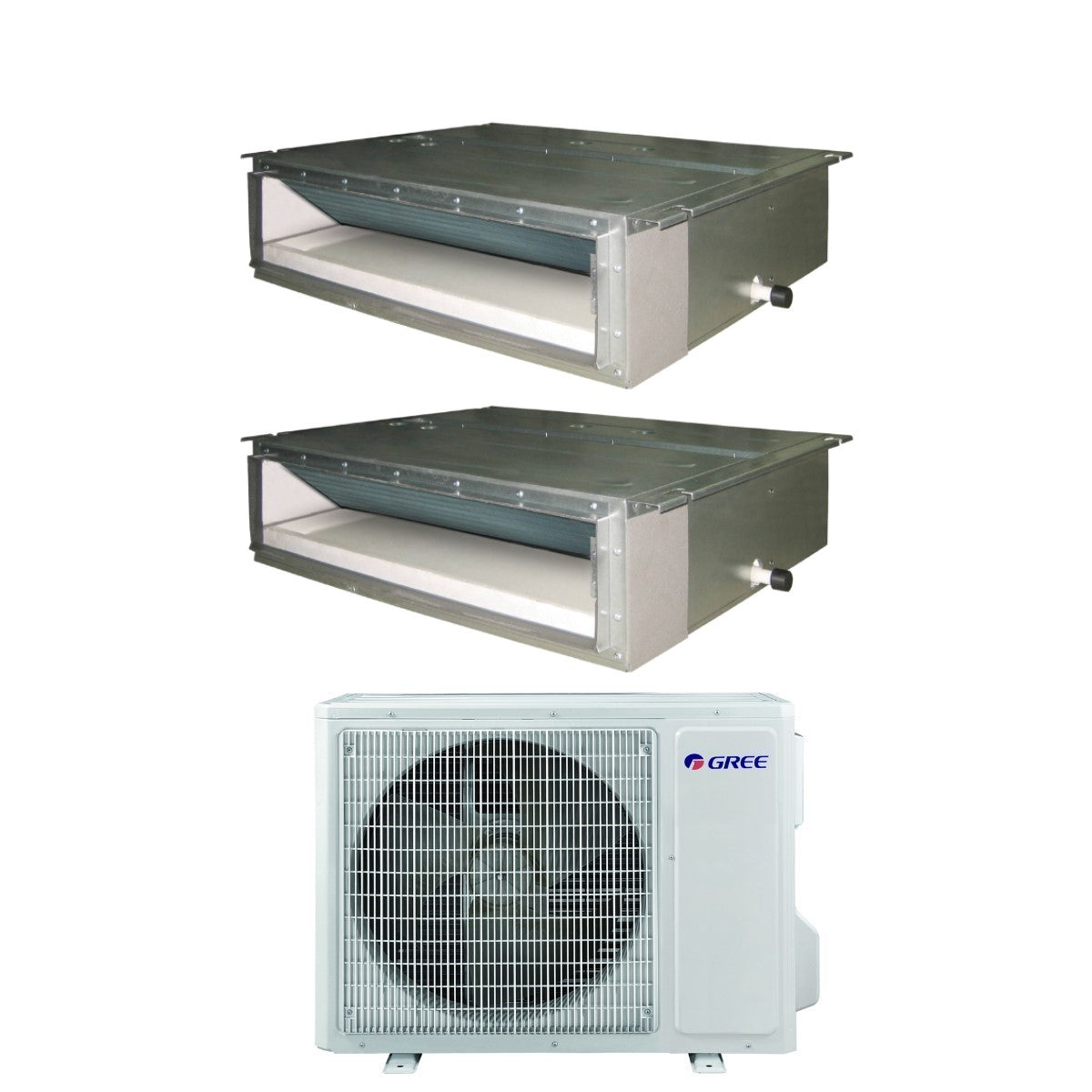

Gree Ducted Air Conditioner Dual Split Inverter 9+12 with GWHD(24)NK6OO R-32 9000+12000

Technical features

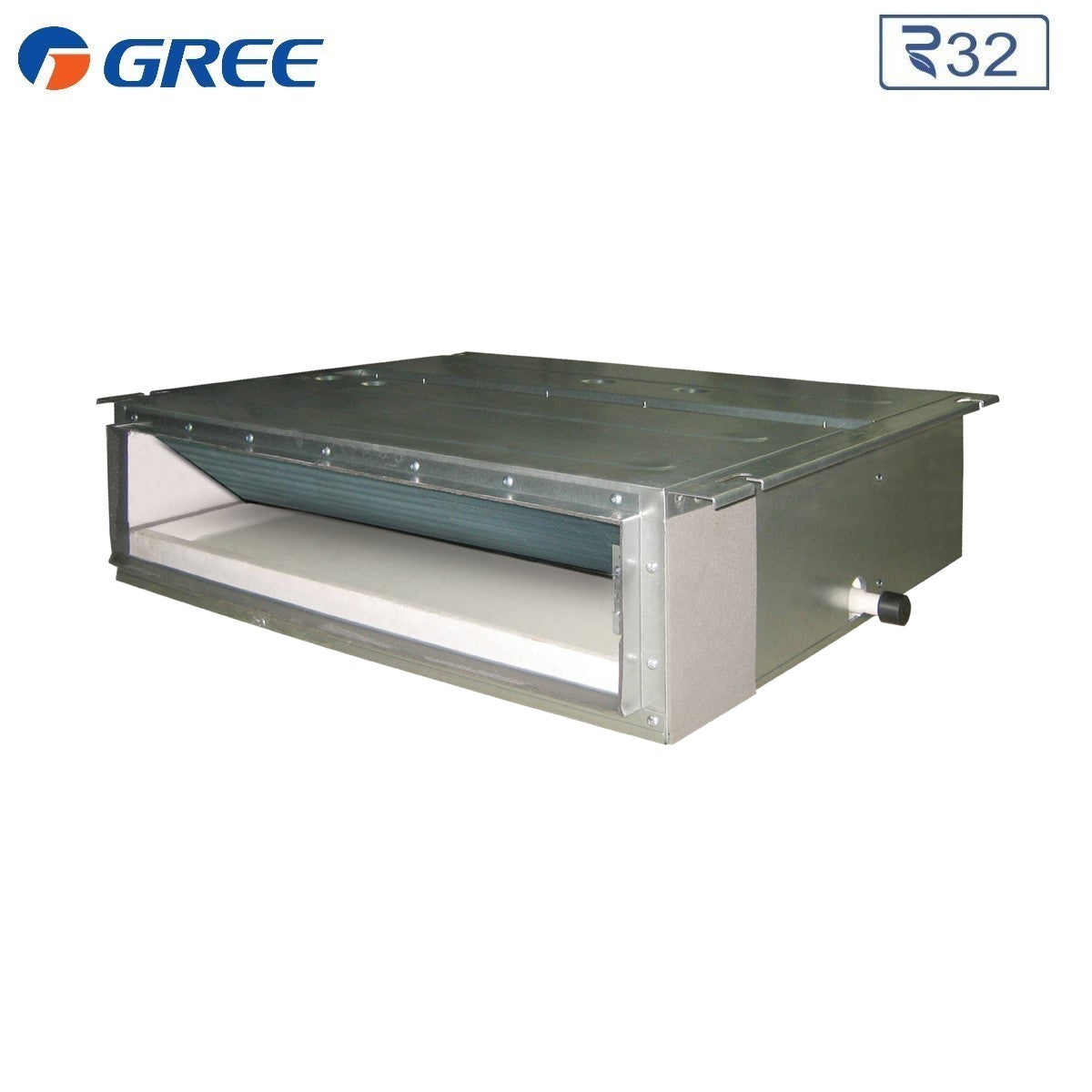

Internal Units

1) Model:

• Indoor unit catalog code: 1x GFH(09)EA-K6DNA1B/I
• Power: 9000 Btu
• Cooling Capacity: 2.50 kW
• Heating capacity: 2.80 kW
• Indoor Unit Treated Air: 250 ~ 450 m ³ /h
• Sound Power Level: 41 ~ 47 dB(A)
• Sound Pressure Level: 31 ~ 37 dB(A)
• Liquid pipe diameter: 6.35 mm (1/4")
• Gas pipe diameter: 9.52 mm (3/8")
• Internal Unit Dimensions (HxWxD): 200x700x615 mm
• Internal Unit Weight: 22.0 Kg

External Unit

Model:

• Outdoor Unit catalog code: GWHD(24)NK6OO
• Max indoor units: up to 3 indoor units

Energy efficiency:

• SEER : 6.1
• SCOP : 4.0
• Cooling Energy Efficiency Class: A++
• Heating Energy Efficiency Class: A+
• Annual energy consumption in Cooling: 407 kWh/a
• Annual energy consumption in Heating: 2189 kWh/a

Performance:

• Cooling Capacity: 7.1 kW
• Heating Capacity: 8.6 kW
• Cooling absorption: 1.88 kW
• Heating absorption: 2.23 kW
• Sound power level: 68 dB(A)
• Sound pressure level: 58 dB(A)

Characteristics:

• Power (V/Hz/F): 220~240/50/1
• Refrigerant gas: R-32
• Guaranteed temperature range:
• - Cooling: -15° ~ 43° C
• - Heating: -15° ~ 24° C

• External Unit Dimensions (HxWxD): 654x889x340 mm
• External Unit Weight: 47.5 Kg
