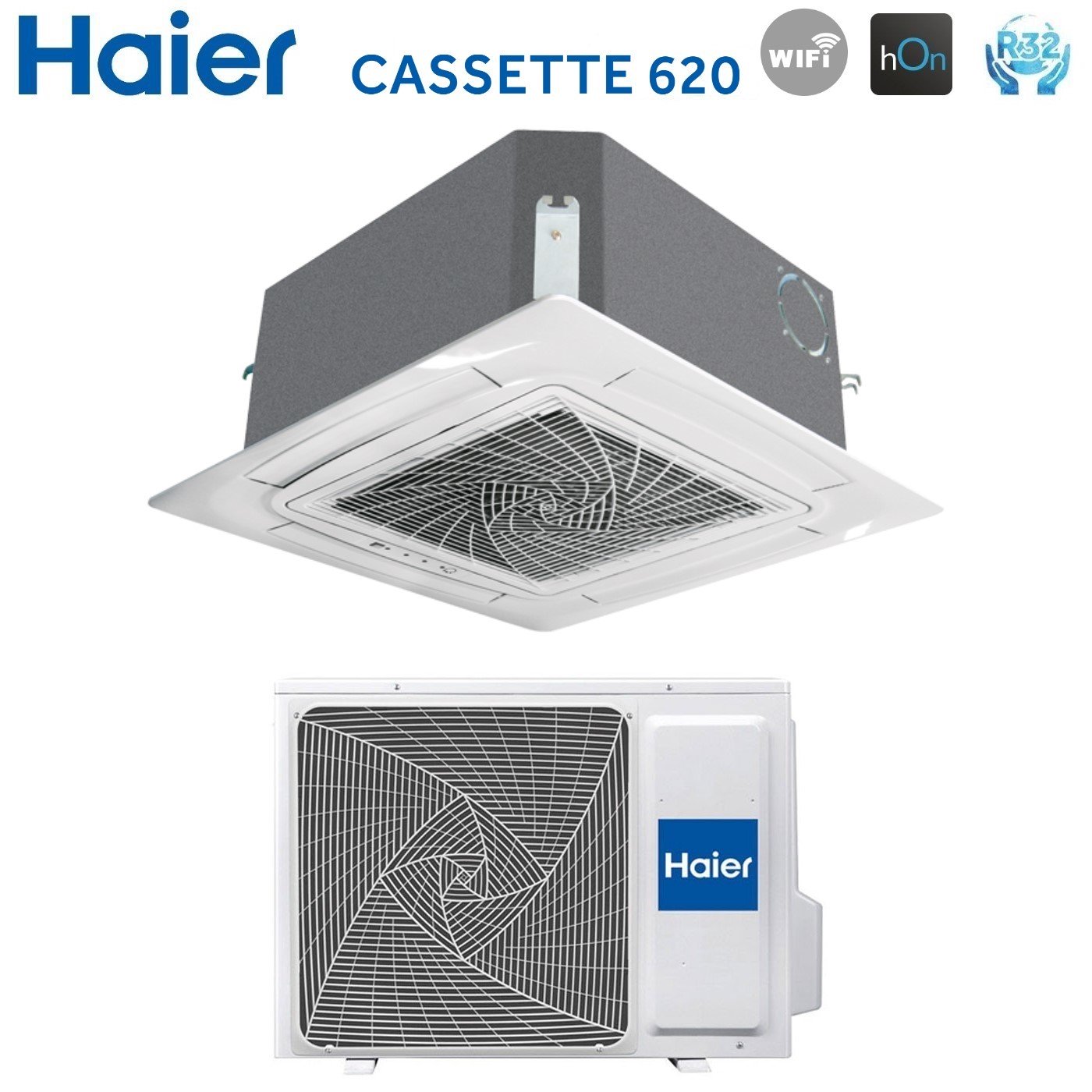

Haier Air Conditioner Cassette 4-Way Inverter Cassette620 Series 18000 Btu AB50S2SC2FA R-32 Wi-Fi Optional with Panel Included Wired Control Haier White HW-BA116ABK
Haier Air Conditioner Cassette 4-Way Inverter Cassette620 Series 18000 Btu AB50S2SC2FA R-32 Wi-Fi Optional with Panel Included Wired Control Haier White HW-BA116ABK
Control to be purchased separately.
Technical features
- Indoor unit catalog code: AB50S2SC2FA
- Indoor unit commercial code: 2501455C2
- Panel Code: PB-620KB
- Outdoor unit catalog code: 1U50S2SJ2FA
- Outdoor unit commercial code: 2502305T2
- Power: 18000 Btu
Energy efficiency
- SEER : 6.1
- SCOP: 3.8
- Cooling Energy Efficiency Class: A++
- Heating Energy Efficiency Class: A
- Annual Energy Consumption in Cooling: 363 kWh/a
- Annual Energy Consumption in Heating: 1932 kWh/a
- Cooling Capacity: 5.0 kW
- Heating Capacity: 5.5 kW
- Cooling absorption: 1.53 kW
- Heating absorption: 1.52 kW
- Indoor Unit Treated Air: 500~700 m 3 /h
- Internal Unit Sound Power Level: 55 dB(A)
- External Unit Sound Power Level: 63 dB(A)
- Indoor Unit Sound Pressure Level: 32~42 dB(A)
- External Unit Sound Pressure Level: 51 dB(A)
Electrical Data
- Power (V,Hz, Ø): 220~240/50/1
- Refrigerant gas: R32
- Operating range
- - Cooling: -10° ~ 43° C
- - Heating: -15° ~ 24° C
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 12.70 mm (1/2")
- Maximum length of pipes: 25 m
- Maximum height difference Internal Unit / External Unit: 15 m
Dimensions and weight
- Internal Unit Dimensions (WxDxH): 570x570x260 mm
- Internal Unit Weight: 19 Kg
- Panel dimensions (WxDxH): 620x620x60 mm
- Panel weight: 2.8 kg
- External Unit Dimensions (WxDxH): 820x338x614 mm
- External Unit Weight: 37.8 Kg
Haier Cassette 620 air conditioner
Cassette 620 is a cassette air conditioner , i.e. an air conditioner that is installed recessed into the ceiling .
This makes it the optimal solution for offices, shops, companies or any other environment where space is limited or where you want the air conditioner to be visually space-saving
What it offers:
- Discreet design with compact panel with low visual impact
- Silence with sound level at 28 db(A)
- Fresh Air for constant air exchange
Design
Thanks to its design with a compact panel that is recessed into the ceiling , the cassette air conditioner is a discreet and elegant solution for air conditioning offices, shops, hotels and large environments.
The unit, equipped with four independent ways, can be built into the plasterboard false ceiling : in this way the air conditioner is no longer a disturbing element, but is harmoniously integrated into the environment ; Furthermore, it also allows you to gain more living space
Silence
The use of DC Inverter fans and design optimization decrease the noise level of the indoor units. The optimized air flow guarantees maximum silence of the air conditioner. Does the noise caused by your air conditioner bother you? Haier air conditioners feature an advanced noise control system with optimized air duct and cross-flow fan design
Fresh Air
The air exchange allows the introduction of clean air into the environment. The "Fresh Air" air inlet arrangement introduces fresh air into the room, up to a maximum of 20% of the nominal air flow of the unit
Wi-Fi Optional
Allows you to set the air conditioning remotely even during your absence.
Imagine you're rushing home in the middle of summer or lying on the couch, but you can't find the remote control. What you want is to be able to easily control your air conditioner wherever you are and at any time with "Haier Smart Air 2" directly from your phone or tablet
With the Haier "hOn" application you can control all the Haier group appliances in your Smart Home from your smartphone or tablet with a single app. Furthermore, via hOn, you can manage all the basic functions , purification functions and much more. The app allows the use of voice commands because it is compatible with Google Assistant and Alexa and therefore also allows voice control
