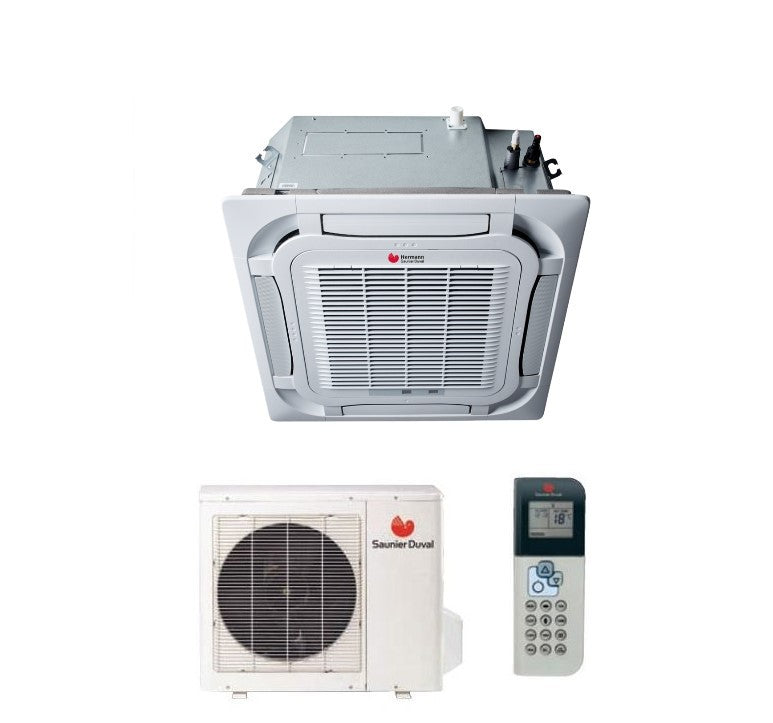

Hermann Saunier Duval Air Conditioner 4-Way Cassette Inverter VivAir SDH19 series 34000 BTU SDH 19-100 IKN R-32 - New

• Sound Pressure: 55 dB(A)
• Dimension: 820 x 940 x 460 mm
• Weight: 83 kg
• Refrigerant gas: R-32
• Pipe diameter: 3/8 - 5/8

VivAir SDH 19

Hermann Saunier Duval offers the new range of high-efficiency commercial cassette air conditioners with R32 refrigerant gas.
The use of the new ecological gas R32 ensures a lower environmental impact thanks to the low global warming potential (GWP=675) equal to approximately one third compared to R410A gas (GWP=2,088).

These units meet the air conditioning needs of small and medium-sized commercial environments, covering a power requirement of up to 14 kW . The efficiency of the new range allows you to reach efficiency levels up to energy class A++ , ensuring maximum comfort and savings on consumption. The outdoor unit with DC inverter compressor is equipped with an electronic expansion valve to increase the efficiency of the air conditioner and is universal for both cassette and ducted indoor units.

High performance for commercial premises

Cassette air conditioner DC 19 series air conditioner by Saunier Duval. We have a range of 3 high-performance models for commercial premises, with various powers from 5 Kw to 8.5 Kw. They also have two versions of single-phase voltage and three-phase voltage. This air conditioning model is highly efficient and has a low noise level. With a unique 360° design to achieve better heat distribution. This will allow you to enjoy maximum comfort with minimum consumption.

DC Inverter technology of Saunier Duval air conditioners

The Saunier Duval range of air conditioners is DC Inverter technology, which allows us greater energy savings compared to conventional inverter systems. With the new Inverter technology, consumption adapts to air conditioning needs in a modular way, guaranteeing significant energy savings. The equipment can operate in extreme temperatures. In addition to 3D DC Inverter technology, it contains an electronic expansion valve and a modulating fan.

You can refrigerate or heat rooms as you wish with Saunier Duval cassettes

The cassette air conditioner is reversible, as it allows us to cool or heat the rooms according to the users' needs, thanks to the new turbo function. With R32 refrigerant which increases the performance of the equipment being much more environmentally friendly than other conventional refrigerants.

Saunier Duval climate control infrared control

The infrared remote control is standard, comfortable and attractive, it will give us control of the functions necessary for comfort such as Sleep function, programmer clock, light stand, automatic mode or ventilation control and operation modes. It also contains condensation control to ensure operation in extreme temperature conditions. With cold operation up to +46ºC and hot operation from -10ºC.

Features of the Saunier Duval cassette air conditioner

• High efficiency and low noise level with 3D DC DC inverter technology: DC Inverter Compressor + DC Inverter modulating external fan + DC Inverter internal fan
• New R32 refrigerant: Increases equipment performance which is much more environmentally friendly than other conventional refrigerants
• High energy efficiency: seasonal energy labeling up to class A ++ in cold mode and A + in heat mode
• Long cold storage distances: the new product reaches refrigerated lengths of 35 to 75 meters and height differences of 20 to 30 meters depending on the model
• External air vents: to obtain optimal air renewal in the room
• Operation in a wide range of outdoor temperatures: Comfort ensured in extreme conditions: -20 OC to 48 OC in cold mode and -15 OC to 24 OC in heating mode
• New 360° Design: 360° air distribution provides unparalleled comfort
• Extremely quiet operation: Configurable by optional cable control, minimizes noise emissions
• Standard infrared remote control and optional cable wall control: new design, convenient and attractive with Sleep functions, programmer with clock, operating modes, among many others

Advantages :

• New R32 refrigerant gas
• Infrared remote control supplied as standard
• Improved comfort thanks to efficient 340° air distribution
• “I Feel” function for maximum comfort (room temperature sensor on the remote control)
