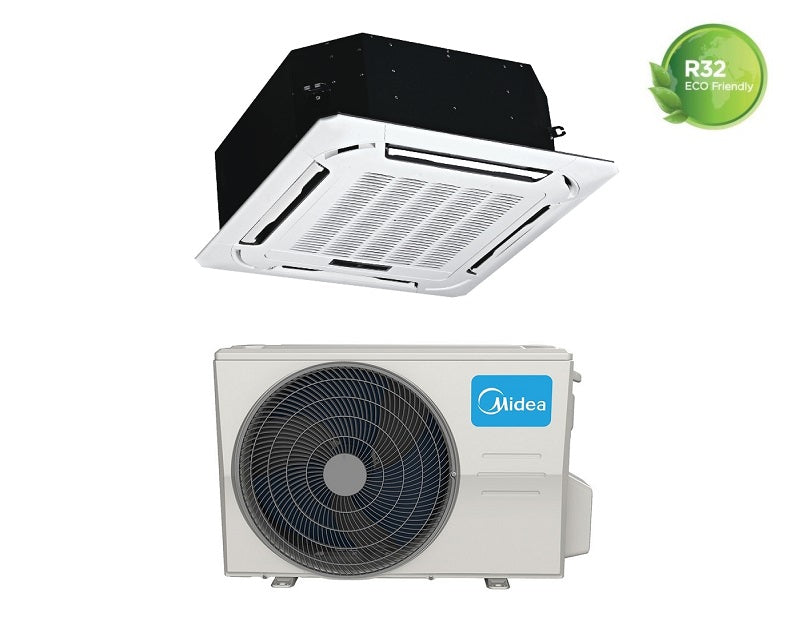

Midea Inverter Air Conditioner 4-Way Cassette Super Slim 90x90 36000 btu MCD1-36HRFN8 A++ Wi-Fi Optional Grill Included THREE-PHASE
Midea Inverter Air Conditioner 4-Way Cassette Super Slim 90x90 36000 btu MCD1-36HRFN8 A++ Wi-Fi Optional Grill Included THREE-PHASE
Midea Inverter Air Conditioner 4-Way Cassette Super Slim 90x90 36000 btu MCD1-36HRFN8 A++ Wi-Fi Optional Grill Included THREE-PHASE
- Indoor unit MCD1-36HRFN8-QRD0W
- Outdoor unit MOD30U-36HFN8-QRD0W
- Power 380-415 / 3 / 50
- Cooling/heating capacity kW 3.95 (0.90 - 4.20) / 3.00 (0.80 - 3.95)
- Dimensions ui WxHxD 830 x 830 x 245
Energy efficiency class
- A++ cooling
- A+ heating
Energy efficiency
- SEER (cooling mode) 6.7
- SCOP (heating mode) 4.0
- Sound pressure level dB(A) 50 / 47.5 / 44.5 / 39
Panel
- Panel Model T-MBQ4-04A1
- Panel dimensions (WxHxD), 950 x 55 x 950 mm
OUTDOOR UNIT
- Model Name MOD30U-36HFN8-QRD0W
- Compressors Type Inverter
- R32 gas
- Power supply 380-415 / 3 / 50
- Sound power level, dB(A) 70
- Pipe diameter Liquid 9.52 Gas 15.90 mm
- Dimensions (WxHxD), 946 x 410 x 810 mm
4-WAY SUPER SLIM CASSETTE
Automatic restart
In the event that the air conditioner stops working unexpectedly due to a power failure, it will automatically restart as soon as the power is restored and will resume operation in the mode set before it was turned off.
Heating 8°C
In 8°C heating mode, this constant temperature is maintained, thus protecting the house from overcooling in winter or from freezing pipes and houseplants. The regime is particularly suitable in case of long absence of the occupants of the house.
Fresh air inlet
Outside air can be brought in through an additional ventilation duct. This ensures clean, fresh air in the air-conditioned room.
360° airflow
The mode provides an extremely light and soft airflow, which circulates throughout the room and ensures even temperature distribution.
Human activity sensor (optional)
The human activity sensor monitors the presence of people in the room and takes into account the power delivered by the system to guarantee perfect comfort.
Emergency operation
In the best air conditioners, when a sensor temperature error occurs, the system stops working. With Midea, the indoor unit reports an error code, but the system continues to operate in emergency mode.
Built-in condensate pump
The built-in condensate pump allows the condensate to rise up to a maximum of 750 mm.
Door of the alarm system
When a fault is detected in the climate control system, an external alarm system is activated which signals an error and automatically stops its operation.
Memory slot
The position of the horizontal valve of the air conditioning system is memorized when it is turned off and automatically restored when it is turned back on.
Refrigerant leak detection
The indoor unit of the air conditioner detects an error code ""EC"", which will display and stop working automatically when a freon leak is detected. This will protect the air conditioning compressor from damage caused by high temperatures when refrigerant leaks.
Wired control (optional)
The wired controller can be fixed to the wall for a permanently mounted control solution.
Centralized management (optional)
The central control is a multifunctional device capable of controlling up to 64 indoor units with a maximum connection length of up to 1200 meters.
Without breeze
The innovative Breezeless effect guarantees uniform air distribution, thus avoiding direct exposure to people in the room. This eliminates the feeling of airflow from the climate control system.
Wi-Fi ready
The air conditioners of this series have the possibility of installing a Wi-Fi module which allows you to control the air conditioner from anywhere and at any time via a mobile application installed on your smartphone or tablet.
LED display
The indoor unit is equipped with a large LED display that provides information on the operation of the climate system.
Product Warranty All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase
