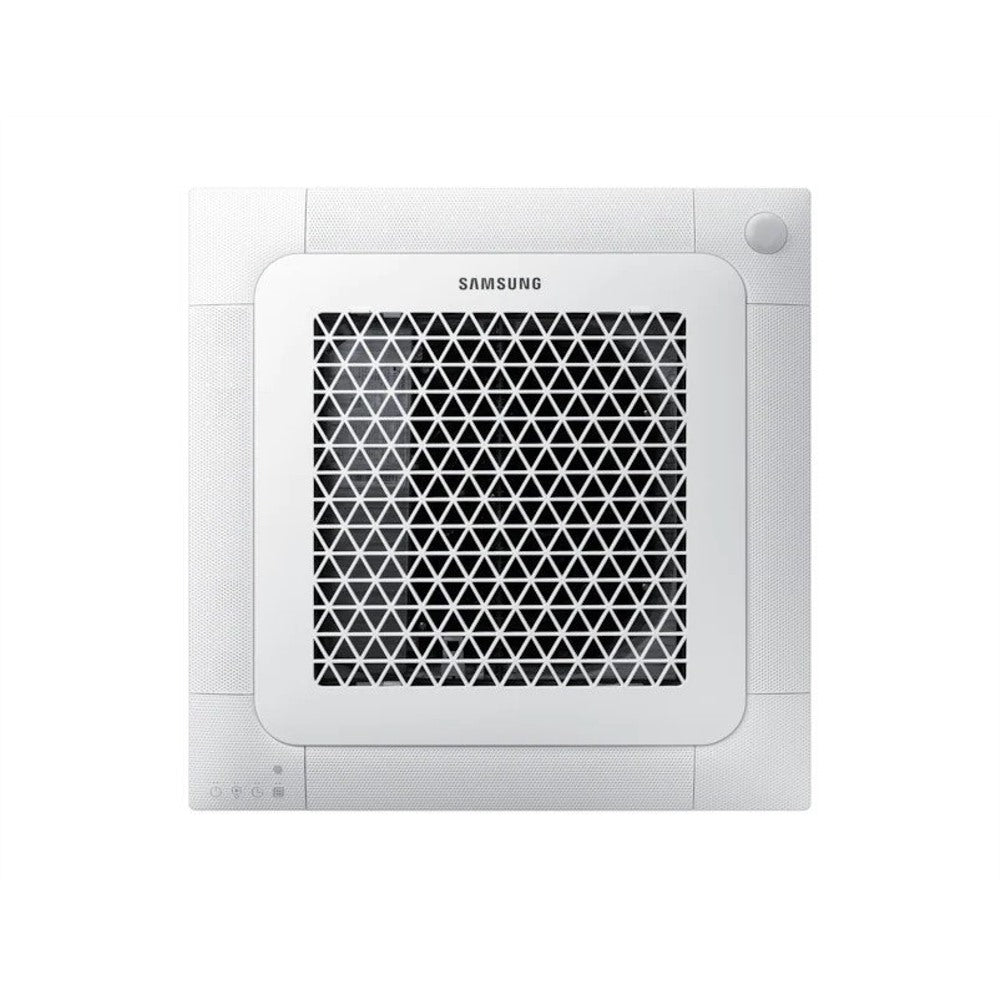

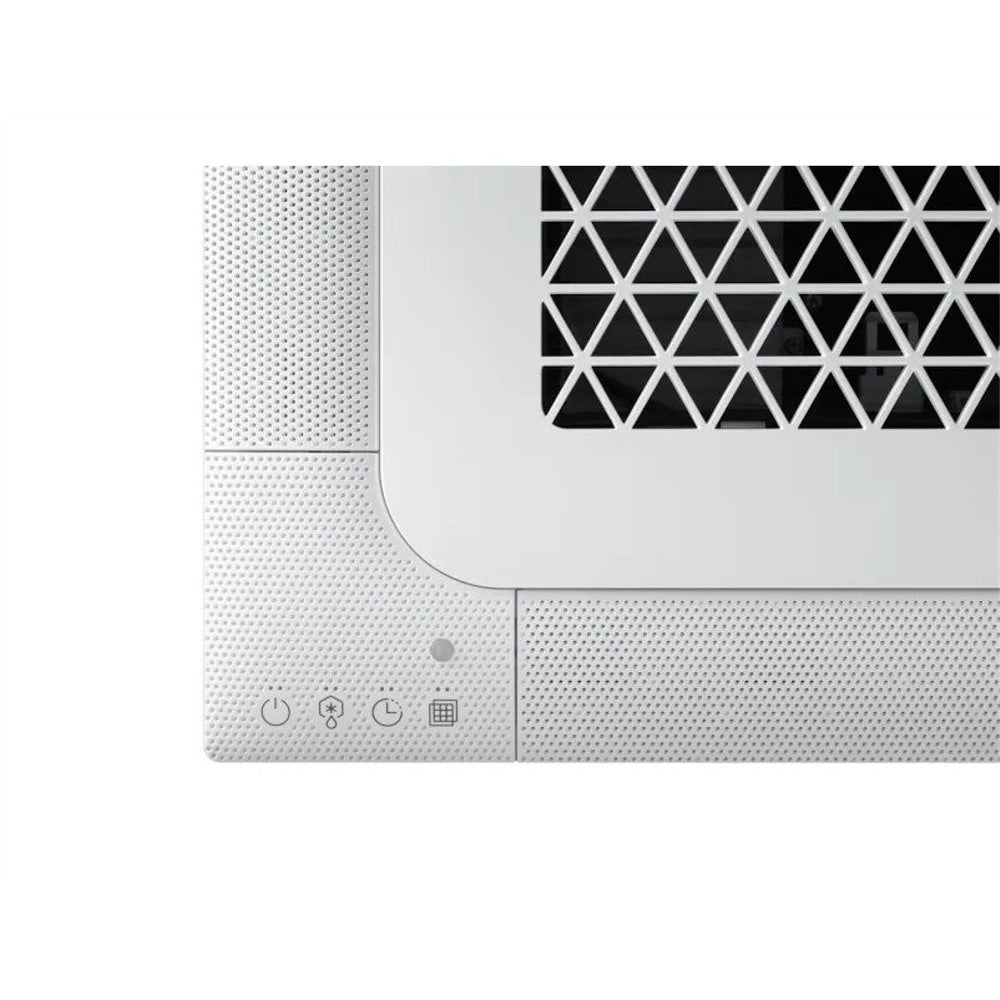

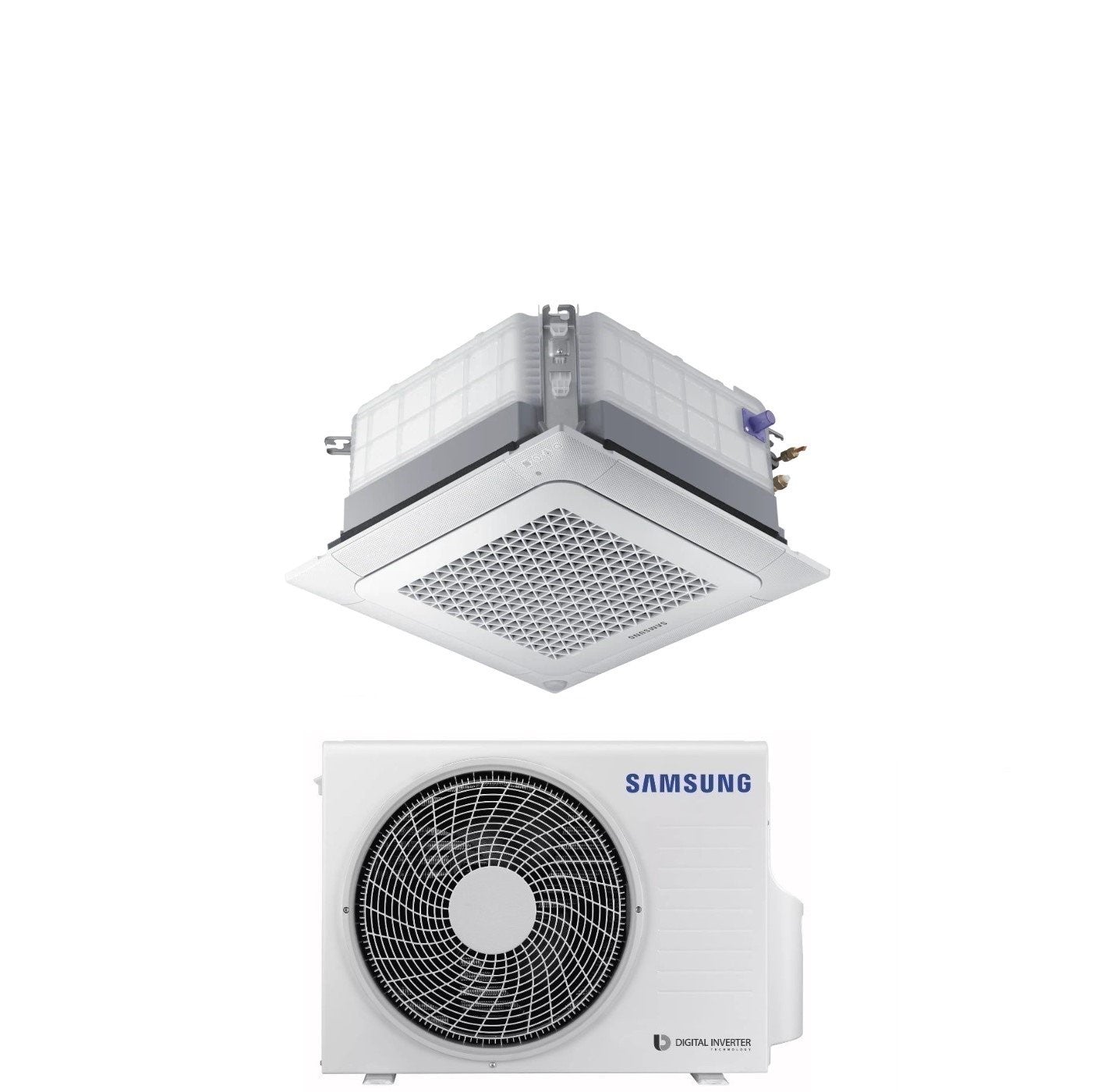

Samsung Inverter Air Conditioner Cassette 4 Way Mini Windfree 18000 Btu AC052RNNDKG R-32 Wi-Fi Optional with Panel Included
Nessun Comando
€1.572,50
Prijs met korting
€1.572,50
Normale prijs
Ga direct naar de productinformatie
Samsung Inverter Air Conditioner Cassette 4 Way Mini Windfree 18000 Btu AC052RNNDKG R-32 Wi-Fi Optional with Panel Included
€1.572,50
Prijs met korting
€1.572,50
Normale prijs
Technical features
- Indoor unit catalog code: AC052RNNDKG/EU
- Outdoor unit catalog code: AC052RXADKG/EU
- False ceiling panel code: PC4SUFMAN
Optional accessories
Energy efficiency
- SEER : 6.5
- SCOP : 4.1
- Cooling energy efficiency class: A++
- Heating energy efficiency class: A+
Performance
- Cooling capacity: 5.00 kW
- Heating capacity: 5.50 kW
- Indoor unit treated air: 10.5 m³/min
- Indoor unit sound power level: 56 dB(A)
- External unit sound power level: 62 dB(A)
Electrical data
- Power (V,Hz, Ø): 220~240/50/1
- Refrigerant gas: R32
- Operating range
- Cooling: -15° ~ 50° C
- Heating: -20° ~ 24° C
Installation data
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 12.70 mm (1/2")
- Maximum pipe length: 30 m
- Maximum internal unit and external unit height difference: 20 m
Dimensions and weight
-
Indoor unit dimensions (WxHxD): 575x250x575 mm
-
Indoor unit weight: 12.0 kg
- Panel dimensions (WxHxD): 620x46x620 mm
- Panel weight: 2.7 kg
- External unit dimensions (WxHxD): 880x638x310 mm
- External unit weight: 43.5 kg

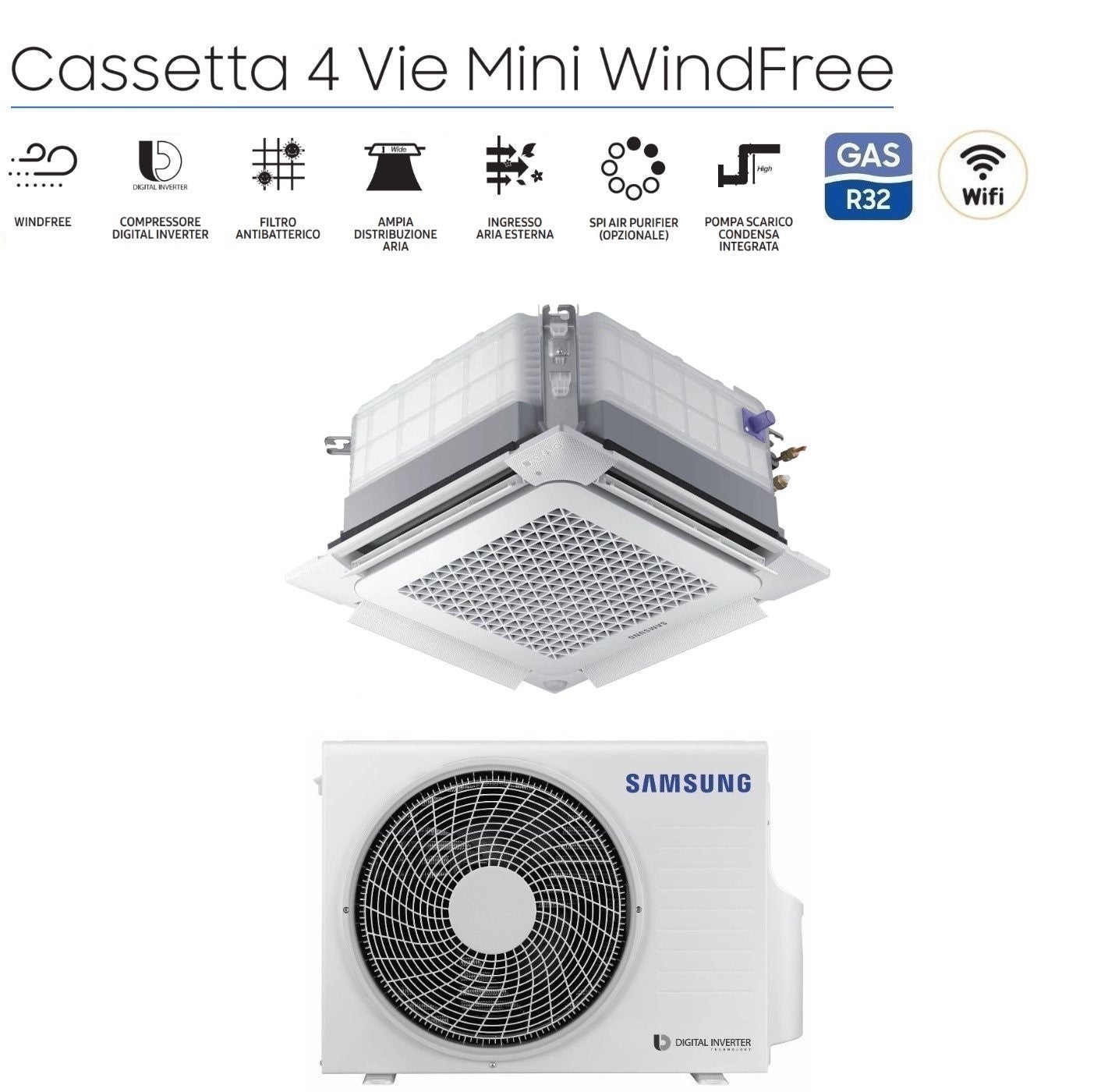

Samsung Mini WindFree cassette
- WindFree mode to avoid direct air jets thanks to 9,000 microholes
- Comfort guaranteed thanks to the humidity sensor
- New fins with a depth of 66 mm, increased air throw
- Air delivery with guide vane individually adjustable between 32° and 75°
- Pre-cut for external air inlet; Fan with inverter motor; Turbo Mode available
- Built-in condensate drain pump (750 mmH2O); Antibacterial fi lter included
- Communication with "Nasa" protocol; manageable via app via smartphone and tablet
- Panel with small dimensions 620x620
- Power supply: Single phase 220 V - 50 Hz
- Twin Rotary Inverter outdoor unit compressor (except 2.6/3.5kW Single Rotary models)
The only ones with thousands of micro-holes and no direct air jet . The Samsung commercial range is completed with the innovative 4-way mini cassettes and 90x90cm cassettes equipped with WindFree technology. The units are in fact equipped with micro-perforated fins which allow uniform cooling without direct air jets, ensuring comfort in the environment.
Compact and lightweight external units
The new external drives are lighter and more compact than conventional products. The external ones have 1 or 2 fans based on the power produced
Installation flexibility
The pipe can be installed in 4 different directions making the installation extremely flexible.
Operating limit extensions
The extended temperature limits allow the machine to operate in cooling from -15°C to 50°C externally and in heating from -20°C to 24°C.
Comfort temperature
The Smart Inverter system adapts to keep the set temperature constant, so that it does not suffer high fluctuations.
Compact and lightweight external units
The new external drives are lighter and more compact than conventional products. The external ones have 1 or 2 fans based on the power produced
Installation flexibility
The pipe can be installed in 4 different directions making the installation extremely flexible.
Operating limit extensions
The extended temperature limits allow the machine to operate in cooling from -15°C to 50°C externally and in heating from -20°C to 24°C.
Comfort temperature
The Smart Inverter system adapts to keep the set temperature constant, so that it does not suffer high fluctuations.
High Efficiency Unit Range
The commercial range of high-efficiency units ensures high performance in all conditions.
Characteristics:
- Equipped with Twin Rotary BLDC Compressors which maintain high performance while reducing vibrations and noise.
- High seasonal efficiency in heating and cooling with units reaching class A++*
- Increased operating range up to -20 °C in cold and -25 °C in heat.
- The units can be managed remotely using the MIM-H04EN Wi-Fi kit.
- Availability of internal units with 4-way cassette type Mini and 90x90, wall-mounted units, ducted.
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
