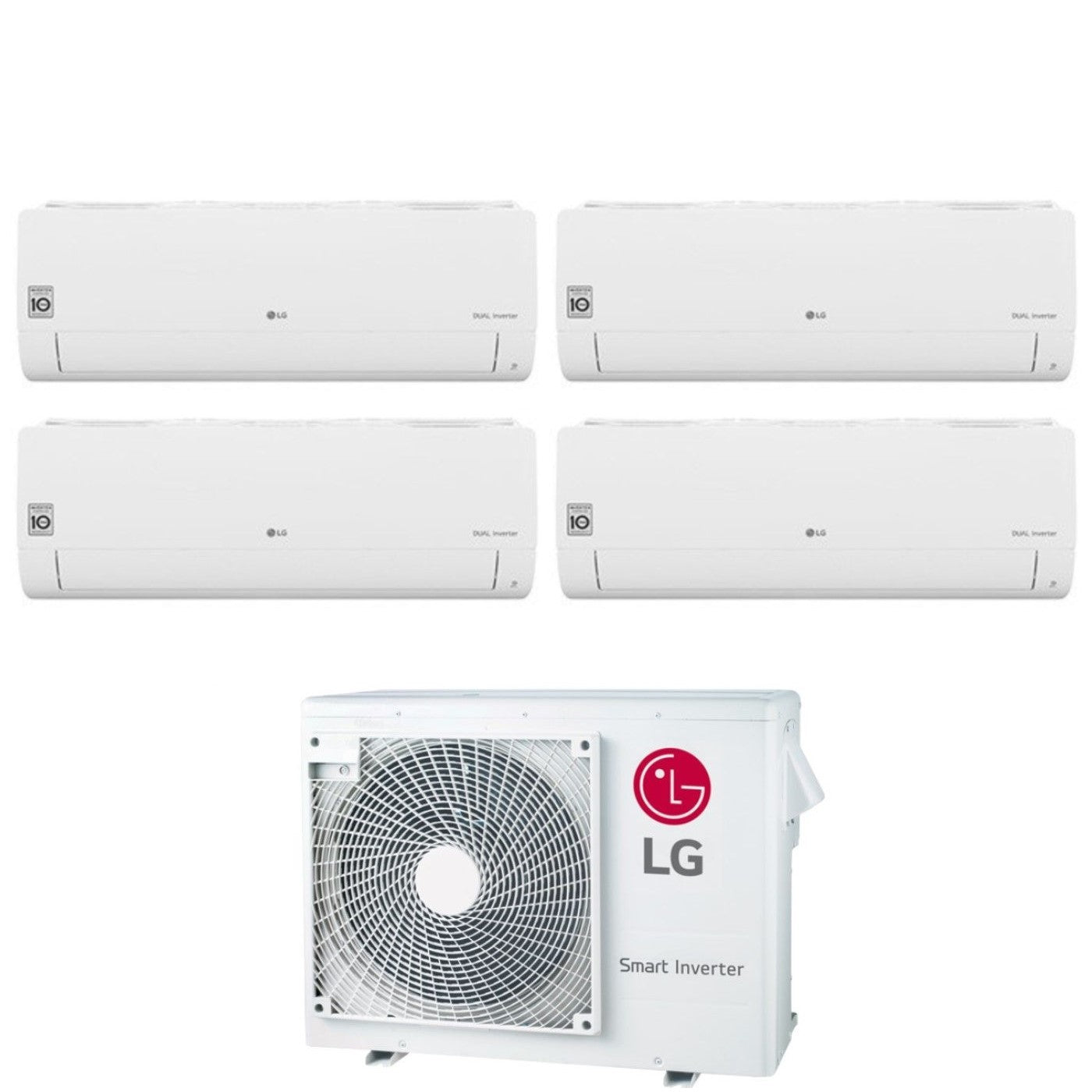

LG Quadri Split Inverter Air Conditioner Libero Smart Series 7+7+7+9 with MU4R25 U40 R-32 Integrated Wi-Fi 7000+7000+7000+9000 - New

LG Quadri Split Inverter Air Conditioner Libero Smart Series 7+7+7+9 with MU4R25 U40 R-32 Integrated Wi-Fi 7000+7000+7000+9000 - New

Technical features

Internal Unit

1) Model

• Indoor Unit Catalog Code: 3x MS07ET.NSJ
• Power: 7000 btu/h
• Cooling Capacity: 2.0 kW
• Heating Capacity: 2.3 kW
• Power consumption: 17 W
• Rated Current: 0.14 A
• Treated air: 7.2 m ³ /min
• Sound pressure level: 27~35 dB(A)
• Liquid pipe diameter: 6.35 mm (1/4")
• Gas pipe diameter: 9.52 mm (3/8")
• Internal Unit Dimensions (WxHxD): 837x308x189 mm
• Internal Unit Weight: 8.7 Kg
• Wi-Fi Integrated with LG ThinQ®
• Voice Control with Alexa and Google Home

External unit

Model:

• Catalog code: MU4R25.U40
• Gases: R-32
• Power (V/Hz/Φ): 1,220~240-50
• Max combinable internal units: 4

Energy efficiency:

• SEER: 8.20
• SCOP: 4.20
• Energy Efficiency Class (Cooled): A++
• Energy Efficiency Class (Heating): A+

Performance:

• Cooling Capacity (kW): 4.82
• Heating Capacity (kW): 4.01

Operational limits:

• Cool Min~Max °C -10~48
• Heating Min~Max °C -18~18

Dimensions and weight:

• External Unit WxHxD (mm): 950 x 834 x 330; 60.7kg
• Height difference: UI-UE (Max) 15 m; IU-IU (Max) m 7.5
• Connection pipe diameter:
• - Liquid: Ø6.35 (1/4) x 4
• - Gas: Ø9.56 (3/8) x 4
• Single branch length (Max): 25 m
• Total length of pipes: 70

Dual Inverter compressor guaranteed for 10 years

LG, which places great trust in the quality and reliability of its products, offers a 10-year warranty on the Inverter compressor of all mono and multi-split models in this catalogue.

The aforementioned warranty covers the costs of the Inverter compressor part only for a total period of 10 years from the date of purchase of the air conditioner . Any other cost other than the value of the replaced component alone is to be considered excluded from coverage.

LG Libero Smart

Energy saving

Inverter technology is able to modulate the power supplied based on actual needs. This allows you to keep the temperature constant, avoiding energy waste, in favor of greater efficiency and maximum energy savings

Smart control for a smart life

Voice Control

With a simple voice command, thanks to the compatibility of LG ThinQ with Google Assistant you can control your LG air conditioner: just with your voice you can set on and off, operating mode and temperature

Remote Control

With LG ThinQ you can remotely access your LG air conditioner, both at home and away from home, with maximum convenience. So your life becomes simpler, smarter and more comfortable

Monitoring

Now you can easily check the operation, energy consumption and cleaning of the filters directly from your smartphone. Control of your LG air conditioner is at your fingertips

* Google and Google Home are trademarks of Google LLC.
* LG SmartThinQ is now renamed LG ThinQ.
*Products with smart features and voice assistant may vary depending on the country and model. Check with LG for service availability

Characteristics
