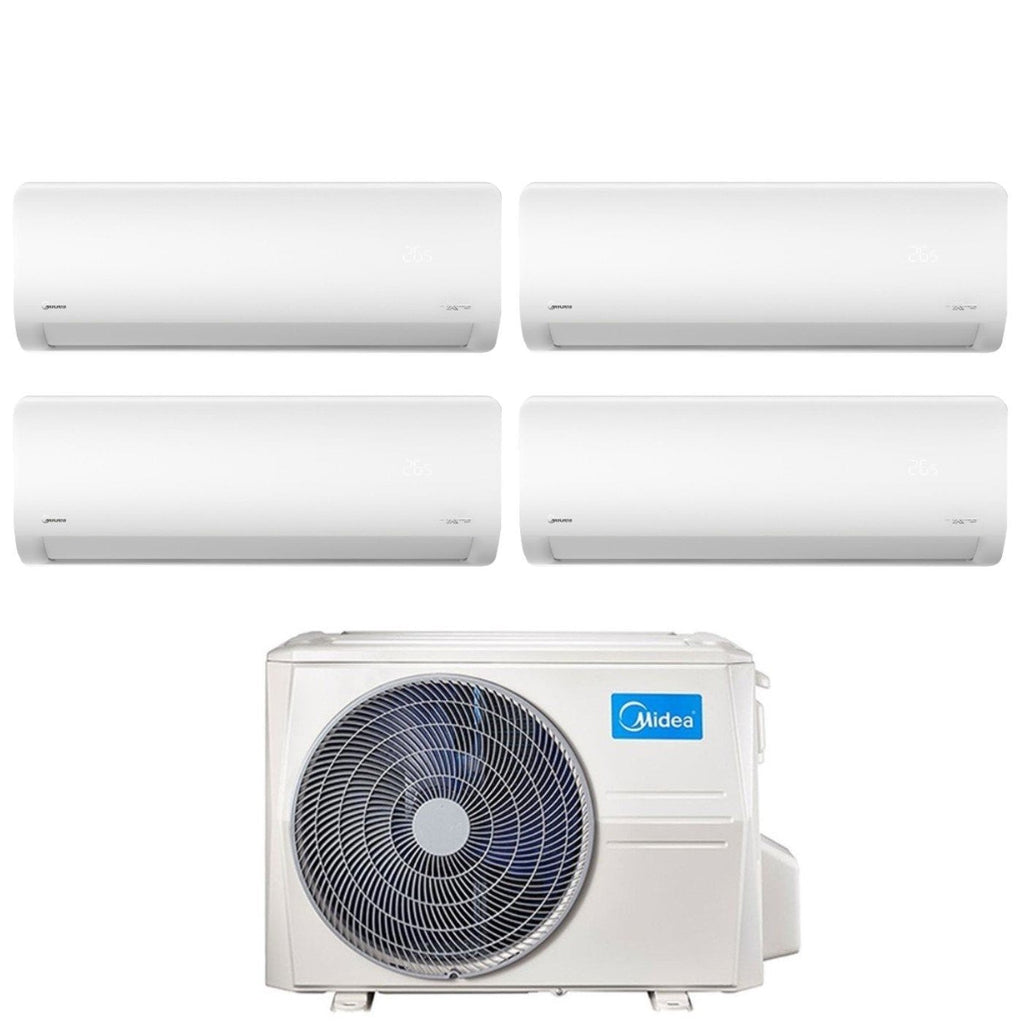

Midea Quadri Split Inverter Air Conditioner XTREME 9+9+9+12 series with M4OE-28HFN8 R-32 Integrated Wi-Fi 9000+9000+9000+12000 - New
Midea Quadri Split Inverter Air Conditioner XTREME 9+9+9+12 series with M4OE-28HFN8 R-32 Integrated Wi-Fi 9000+9000+9000+12000 - New
Technical features
Internal Units
1) Model:
- Indoor Unit Catalog Code: 3x MSAGBU-09HRFN8
- Series: Xtreme
- Power: 9000 btu/h
- Cooling Capacity: 2.6 kW
- Heating capacity: 2.8 kW
- Air flow: 300~360~510 m 3 /h
- Sound Power Level: 55 dB(A)
- Sound pressure level: 22~32~37 dB(A)
- Liquid Pipe Diameter: 6.35 mm (1/4")
- Gas Pipe Diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (WxHxD): 835x295x208 mm
- Internal Unit Weight: 8.7 Kg
- Integrated Wi-Fi
2) Model:
- Indoor Unit Catalog Code: 1x MSAGBU-12HRFN8
- Series: Xtreme
- Power: 12000 btu/h
- Cooling Capacity: 3.5 kW
- Heating capacity: 3.8 kW
- Air flow: 350~400~530 m 3 /h
- Sound Power Level: 56 dB(A)
- Sound pressure level: 23~32~38 dB(A)
- Liquid Pipe Diameter: 6.35 mm (1/4")
- Gas Pipe Diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (WxHxD): 835x295x208 mm
- Internal Unit Weight: 8.7 Kg
- Integrated Wi-Fi
External Unit
- Outdoor Unit catalog code: M4OE-28HFN8-Q
- Max indoor units: up to 4 indoor units
Energy efficiency:
- SEER : 7.0
- SCOP : 4.0
- Cooling Energy Efficiency Class: A++
- Heating Energy Efficiency Class: A+
- Annual energy consumption in Cooling: 410 kWh/a
- Annual energy consumption in Heating: 2275 kWh/a
Performance:
- Cooling Capacity: 8.21 kW
- Heating Capacity: 8.79 kW
- Std Cooling absorption: 2.5 kW
- Std Heating absorption: 2.4 kW
- Sound power level: 66 dB(A)
- Sound pressure level: 66 dB(A)
Characteristics:
- Power (V/Hz/Φ): 220~240/50/1
- Refrigerant gas: R-32
- Liquid tube diameter: 6.35 mm (1/4") x4
- Gas pipe diameter: 9.52 mm (3/8") x3 + 12.70 mm (1/2")
- Maximum pipe length: 35 m
- Maximum height difference Internal Unit / External Unit: 15 m
- Guaranteed temperature range:
- - Cooling: -15° ~ 50° C
- - Heating: -15° ~ 24° C
Dimensions:
- External Unit Dimensions (WxDxH): 946x410x810 mm
- External Unit Weight: 62.1 Kg
Midea Xtreme
The new Midea by environmental conditions
To ensure you have the greatest comfort in the world
Midea Inverter air conditioners offer three operating modes: 50%, 75% and 100% power. You can choose your favorite mode to save energy
Temperature oscillation contained in +/-0.1 °C
It is no longer necessary to repeatedly turn the air conditioner on or off or continuously adjust the temperature because Inverter 4 keeps the temperature constant efficiently thanks to the variation in the rotation speed of the compressor
High silence
Extreme operates with very low noise, less than 20 decibels to ensure that your sleep is not disturbed
No more drafts, now just gentle puffs of air
Prevent the wind from blowing directly at you by using the remote control to instantly adjust the wind direction
Air conditioning of large environments
The optimized air duct design and turbo fan speed provide stronger airflow and allow cool air to reach up to 25 meters away*. (*applies to 90IDU only).
3D Airflow
The directional fins move automatically to direct the airflow to every corner of the room and keep it comfortably cool
Characteristics
- Cooling and heating
- Cooling kW: 2.6 / 3.2 / 5.3 / 7.2
- Heating kW: 2.8 / 3.8 / 5.5 / 7.6
- Self-diagnosis
- 1W Stand by
- Condensation control
- Follow Me function
- Eco function
- LED display
- Refrigerant leak alarm
- GEAR function
- Do Not Disturb function
- Hydrophilic Aluminium
- Remote control
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
