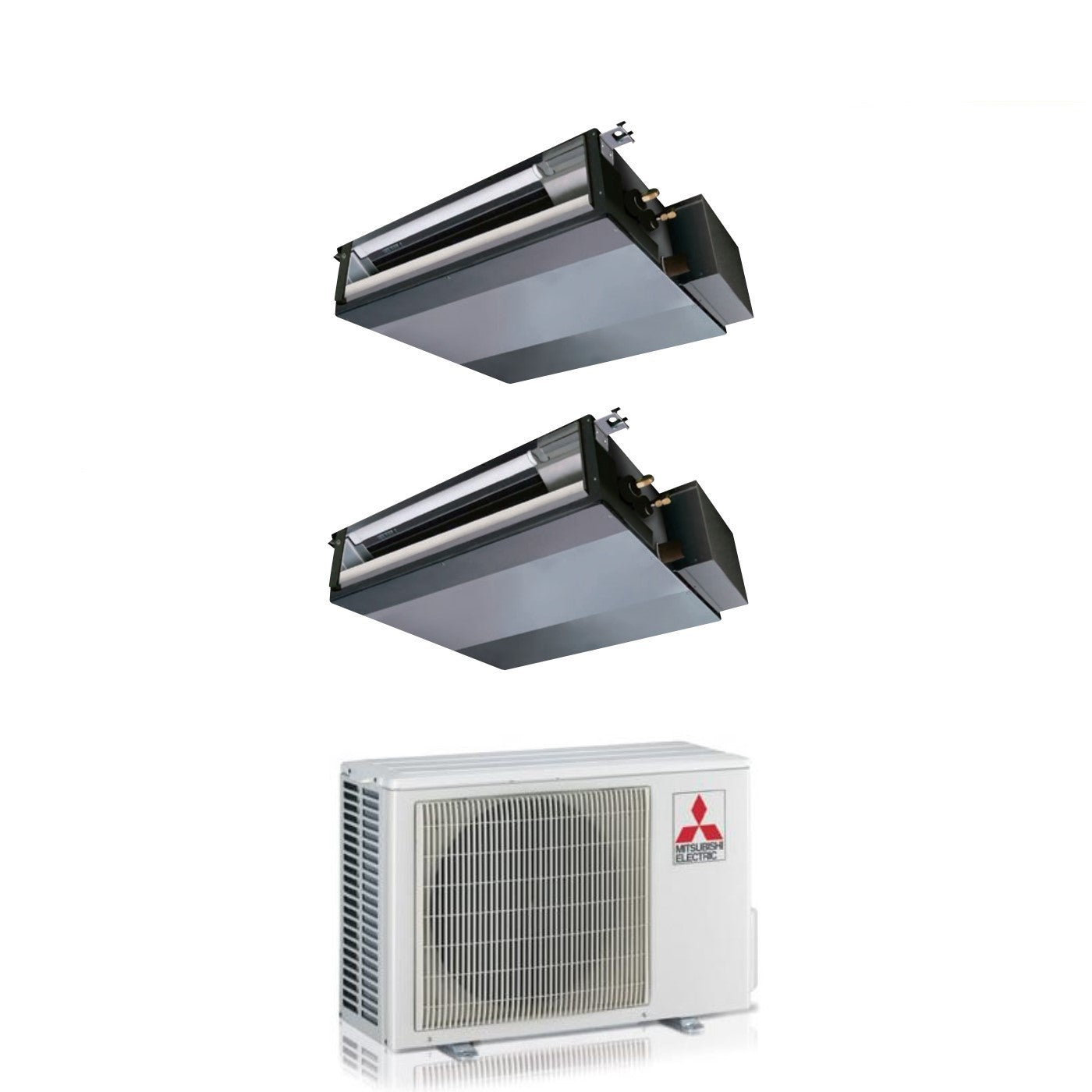

Mitsubishi Electric Dual Inverter Air Conditioning Ductable (Ducted) SEZ-M 12+12 with MXZ-2F53VF R-32 Wi-Fi Optional 12000+12000
Mitsubishi Electric Dual Inverter Air Conditioning Ductable (Ducted) SEZ-M 12+12 with MXZ-2F53VF R-32 Wi-Fi Optional 12000+12000
Technical features
Internal units
- Indoor unit catalog code: 2x SEZ-M35DA2
- Power: 12000 btu
- Cooling capacity: 3.5 kW
- Heating capacity: 4.2 kW
- Cooling absorption: 1.00 kW
- Heating absorption: 1.07 kW
- Treated air: 7 ~ 11 m 3 /min
- Sound power level: 51 dB(A)
- Sound pressure level: 23~31 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Indoor unit dimensions (HxWxD): 200x990x700 mm
- Indoor unit weight: 22.0 kg
- Remote control: PAR-FL32MA-E
- Infrared receiver: PAR-FA32MA-W
- Deluxe remote control: PAR-41MAA
- Adapter: PAC-SH29TC-E
- Wi-Fi card: MAC-587IF-E
External unit
- Outdoor unit catalog code: MXZ-3F53VF
- Number of connectable internal units: Up to 2 internal units
Energy efficiency
- SEER: 8.63
- SCOP: 4.6
- Cooling energy efficiency class: A+++
- Heating energy efficiency class: A++
- Annual energy consumption in cooling: 215 kWh/a
- Annual energy consumption in heating: 973 kWh/a
Performance
- Cooling capacity: 5.3 kW
- Heating capacity: 6.4 kW
- Cooling absorption: 1.4 kW
- Heating absorption: 1.56 kW
- Sound power level: 61 dB(A)
- Sound pressure level: 46~51 dB(A)
Electrical data
- Power (V/Hz/Φ): 220~240/50/1
- Refrigerant gas: R-32
- Guaranteed temperature range:
- - Cooling: -10° ~ 46° C
- - Heating: -15° ~ 24° C
- Liquid tube diameter: 6.35 mm (1/4") x2
- Gas pipe diameter: 9.52 mm (3/8") x2
- Maximum pipe length: 30 m
- Maximum height difference between internal unit and external unit: 15 m Internal Unit Above
- Maximum height difference between internal unit and external unit: 10 m Internal Unit Below
Dimensions and weight
- External unit dimensions (HxWxD): 550x800x285 mm
- External unit weight: 37.0 kg
Multisplit DC Inverter
The Inverter system is an electronic device that allows you to efficiently vary the speed of the compressor and, consequently, the power supplied by the air conditioner, based on the cooling or heating request.
Compared to traditional fixed speed (On/Off) air conditioners, inverter air conditioners reach the required temperature sooner and keep it stable, without annoying changes, to the benefit of comfort and electricity consumption.
High seasonal efficiency
Operating economy is the great advantage of Mitsubishi Electric air conditioners. Thanks to the DC Inverter regulation system and the careful design of the components used, energy efficiency reaches extraordinary levels. The entire range of multi-split air conditioners (MXZ-D) reaches high efficiency values even on a seasonal basis.
Maximum Silence for Maximum Comfort
The DC Inverter multisplit units are characterized by the very low noise level emitted. By activating the silent mode, this level can be further reduced automatically when the demand is lower (e.g. during the night in cooling mode).
Efficiency
Thanks to careful design and the introduction of the R32 refrigerant, the efficiency of the new multisplit outdoor units is significantly increased, reaching class A+++ in cooling (sizes 2F42,2F53,3F54) and A++ (sizes 2F42,2F53,3F54) in heating.
Connectivity
The extraordinary connectivity available with the new external units allows you to satisfy every need. The MXZ-F unit demonstrates all-round versatility , being connectable to a large part of the indoor unit range of the Residential and Commercial Line, whether they are wall-mounted units, ceiling cassettes or ducted.
Silence
The new MXZ-F multisplit outdoor units reach a new level of operating silence, reducing sound emission by up to 4dB compared to the previous model in cooling mode and up to 3dB in heating mode.
R32: reduced environmental impact
Thanks to the use of R32 refrigerant and a reduced pre-charge of the units compared to the previous model, the MXZ-F units introduce a significantly lower quantity of equivalent tonnes of CO2 into the environment.
Automatic noise reduction mode
By setting this function, it is possible to automatically reduce the noise level of the external unit when the internal loads to be satisfied are reduced, such as during night cooling.
Mitsubishi Electric Ducted Compact Unit SEZ-M DA Super compact for impossible installations
The SEZ-M units have compact dimensions to be installed even in narrow spaces. The reduced noise emissions increase the liveability of the environments.
Super compact size
The small dimensions of the SEZ-M line, height 200 mm and depth 700 mm for the entire range, make installation suitable even in particularly narrow false ceilings
Adjustable air flow
The fan driven by the DC Inverter motor makes the SEZ line units particularly versatile: 4 different static pressure selections selectable from the control (5/15/35/50 Pascal) allow installation with both long ducts and direct exhaust, balancing excellently air flow and silent operation.
DC Inverter
The Inverter system is an electronic device that allows you to efficiently vary the speed of the compressor and, consequently, the power supplied by the air conditioner, based on the cooling or heating request.
Compared to traditional fixed speed air conditioners (On/Off), inverter air conditioners reach the required temperature sooner and keep it stable, without annoying changes, to the benefit of comfort and electricity consumption .
Thanks to the DC Inverter regulation system and the careful design of the components used, seasonal energy efficiency reaches extraordinary levels.
Silence & comfort
The quality of the environment in which we stay also depends on the perceived noise level.
Mitsubishi Electric air conditioners help maintain the highest acoustic comfort by reducing noise emissions to a minimum, thanks to great care in design and construction details
MELCloud, Wi-Fi control
MELCloud is the new Wi-Fi control for your Mitsubishi Electric system. By taking advantage of the support of the cloud, the "Cloud", to transmit and receive information and the optional dedicated Wi-Fi interface MAC-567IF-E, you can easily control your system wherever you are via your PC, tablet or smartphone ; all you need is an internet connection. The MELCloud service was created to have maximum compatibility with PCs, Tablets and Smartphones thanks to dedicated Apps or via Web Browser.
One word is enough for you!
MELCloud is compatible with Google Home. By saying «Hey Google!», or «Ok Google!» you have full control of the climate control system. MELCloud is compatible with Amazon Alexa. One word will be enough to freely manage your air conditioning units
Product guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
