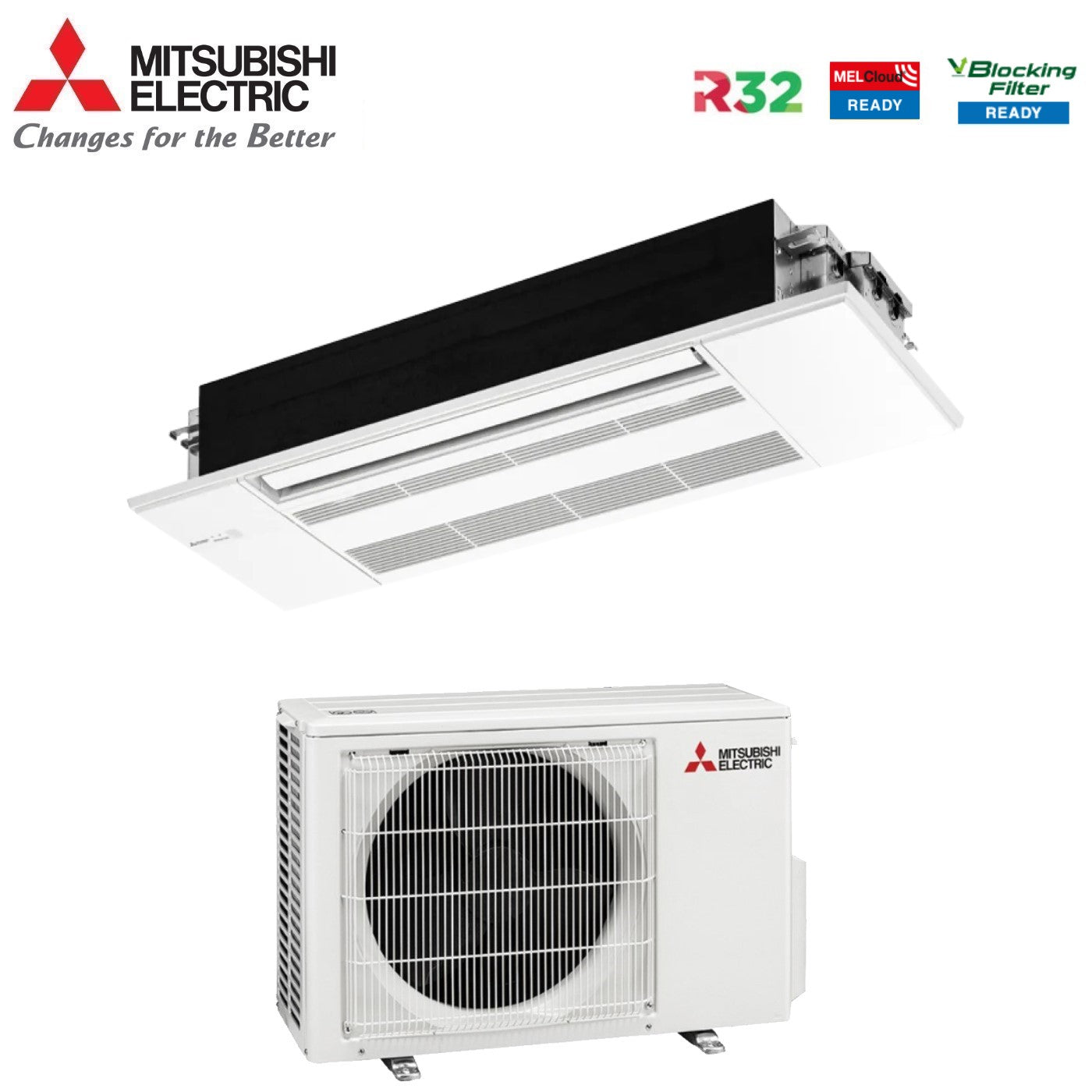

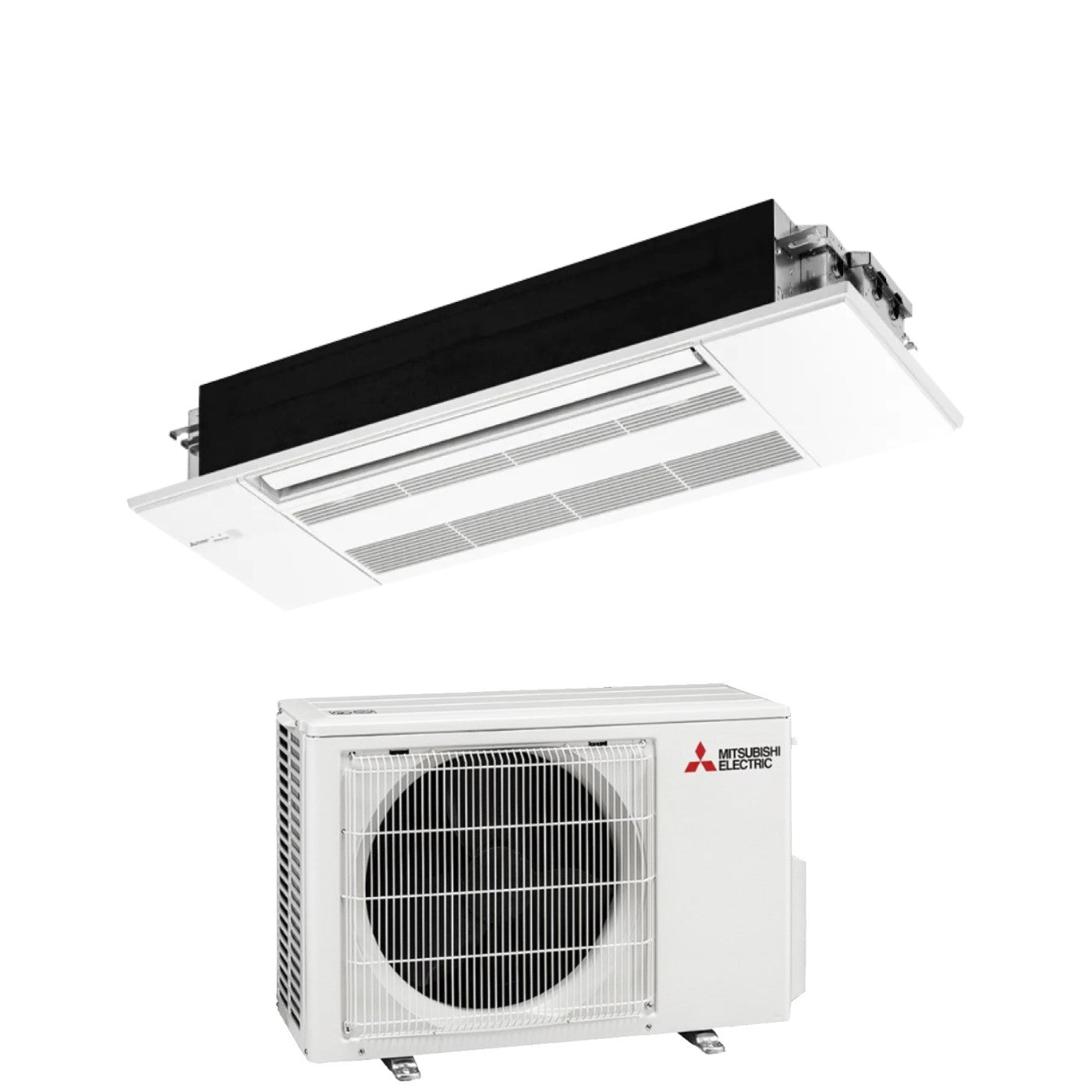

Mitsubishi Electric Inverter Air Conditioner 1-way cassette 12000 btu MLZ-KP35VF R-32 New Wi-Fi Optional SLZ-KP

Mitsubishi Electric Inverter Air Conditioner 1-way cassette 12000 btu MLZ-KP35VF R-32 New Wi-Fi Optional SLZ-KP

Technical features

Model:

• Internal unit catalog code: MLZ-KP35VF
• External unit catalog code: SUZ-M35VA
• Type: Inverter

Energy efficiency:

• SEER/SCOP (W/W): 7.0/4.6
• Energy Efficiency Class (Cooled): A++
• Energy Efficiency Class (Heating): A++
• Power (BTU): 12000

Performance:

• Nominal capacity (min/max) T=+35°C kW 3.5 (0.8 - 3.9)
• Nominal capacity (min/max) T=+7°C kW 4.1 (1.1 - 4.9)
• Annual energy consumption 1 kWh/a 175
• Annual energy consumption1 kWh/a 791
• Sound pressure (SLo-Lo-Mid-SHi) ui dB(A) 27 - 32 - 36 - 40
• Sound pressure eu min/max dB(A) 48 / 48

Electrical data:

• Voltage/Freq./Phases V/Hz/n° 230 / 50 / 1

Characteristics:

• Refrigerant gas: R32

Dimensions:

• Internal Unit HxWxD (mm): 185 x 1102 x 360; 15
• Grid HxWxD (mm) : (24 x 1200 x 424); 3
• External Unit HxWxD (mm): 550 x 800 x 285; 30kg

SLZ-KP SERIES

Modern design and installation versatility

The MLZ-KP units are designed to be installed wherever you want, without sacrificing a valuable design and excellent performance.

Small size, great design

The height of only 175 mm and the depth of 414 mm allow installation not only in traditional false ceilings but also in small lowerings or plasterboard vaults, giving prestige and design to the room where they are installed.

Comfortable Air Distribution

Using the infrared remote control it is possible to fully regulate the air flow in the four directions in order to avoid annoying air currents, to the full advantage of comfort. Not only that, the new MLZ-KP model is able to create a horizontal throw parallel to the ceiling, optimizing comfort in the environment and avoiding annoying direct currents.

Silence and optimal air distribution

An elegant and slender line, a modern and refined design, performance, silence and optimal air distribution: 1-way cassette units find the ideal application in prestigious residential environments as well as in offices or commercial establishments. The exclusive combination with Multisplit DC Inverter systems allows you to create an ideal climate all year round with maximum comfort and minimum energy consumption.

MELCloud Ready

The new MLZ-KP has a special space for housing the MELCloud interface inside the Chassis, on the back of the panel.

Condensate drain pump

The provision of a drain pump with a head of 500 mm facilitates the drainage of condensation water even in critical conditions.
