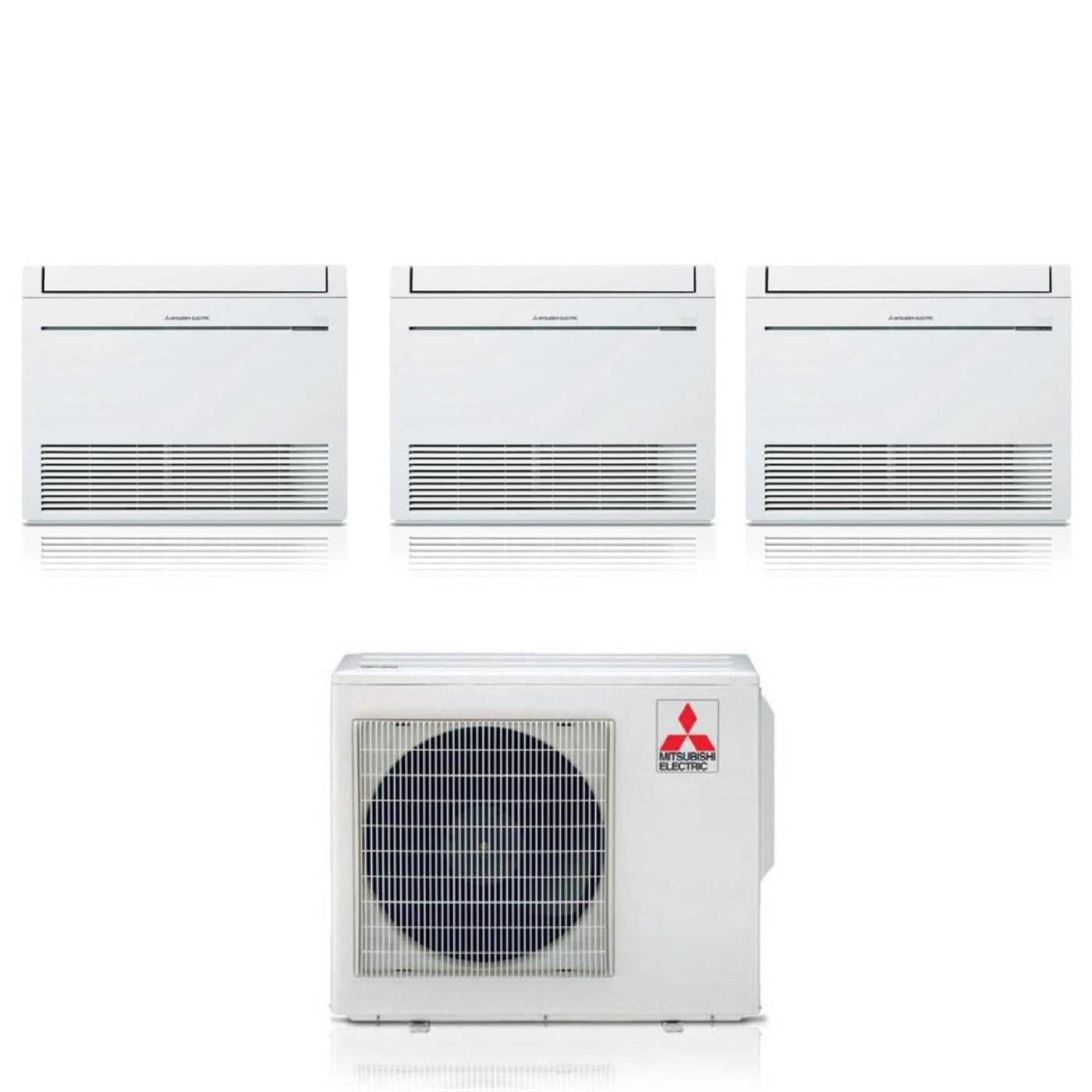

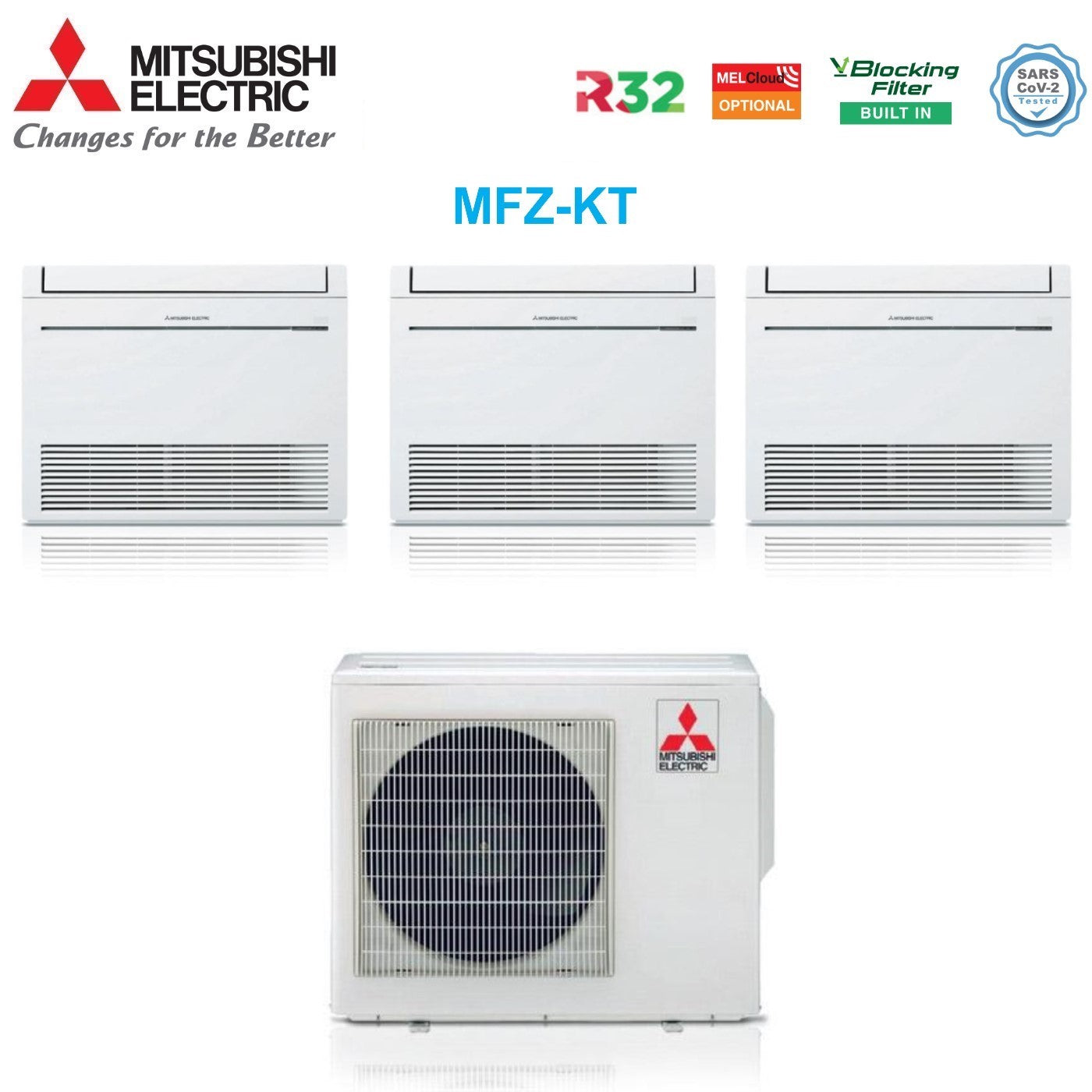

Mitsubishi Air Conditioner Floor Trial Split Inverter MFZ-KT 9+9+9 series with MXZ-3F54VF3 R-32 9000+9000+9000 - New
Mitsubishi Air Conditioner Floor Trial Split Inverter MFZ-KT 9+9+9 series with MXZ-3F54VF3 R-32 9000+9000+9000 - New
Technical features

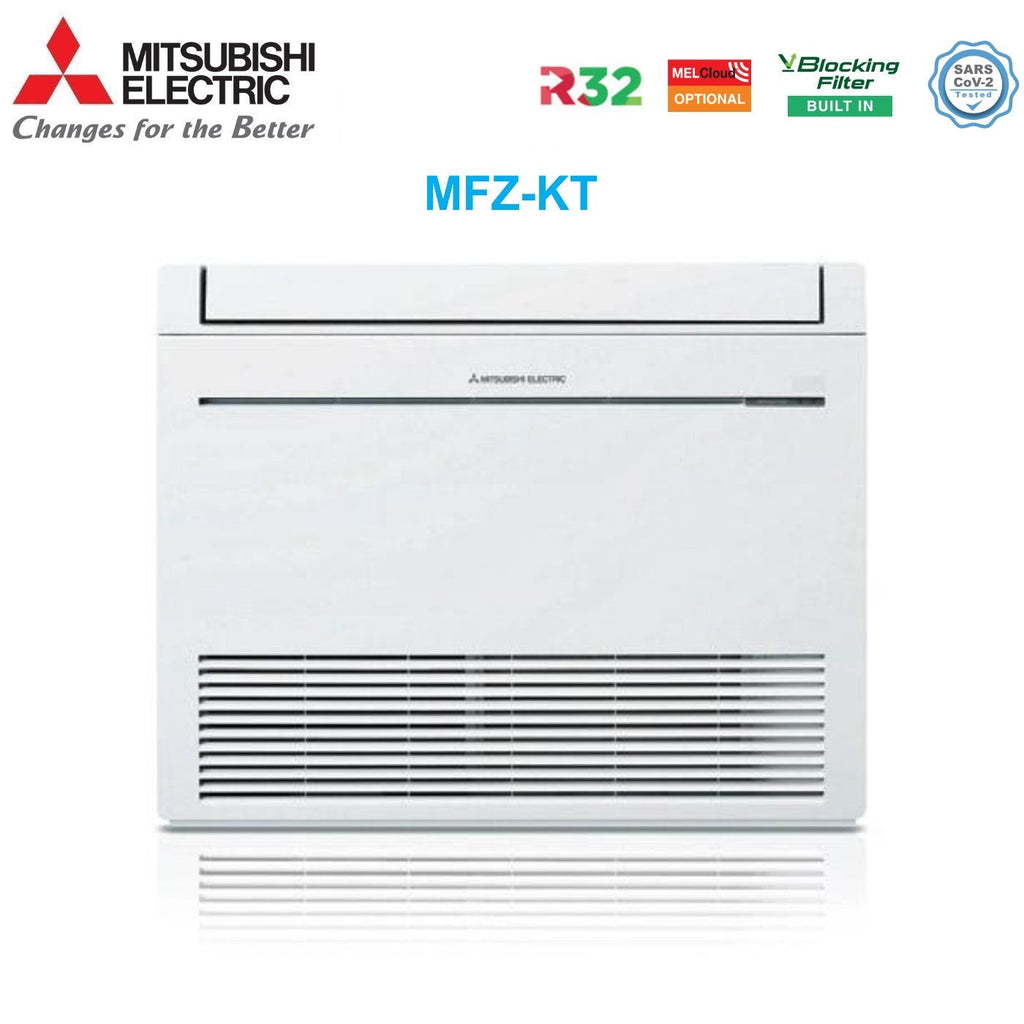

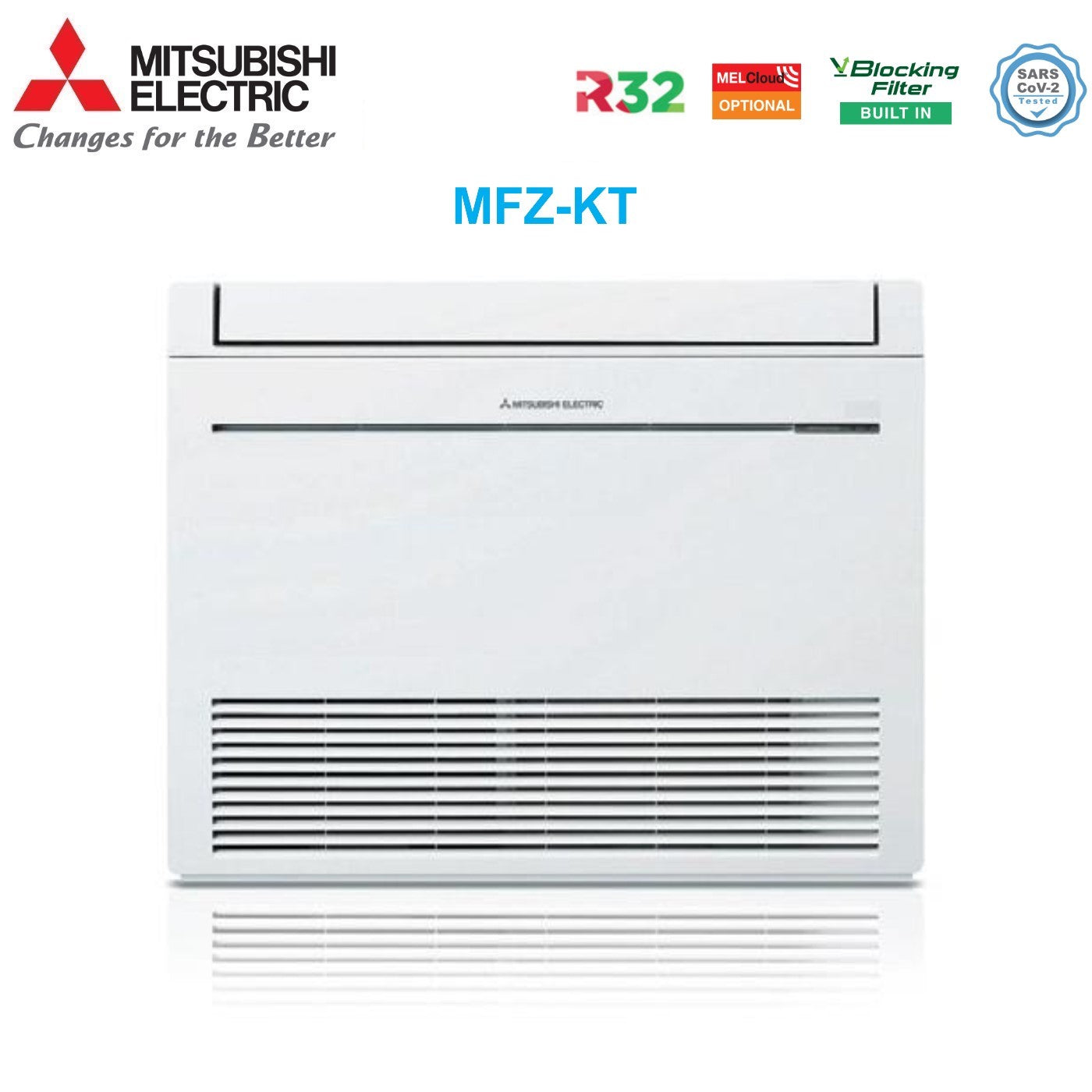

Indoor unit :
Model:
- Indoor unit catalog code: 3x MXZ-KT25VG
- Type: Inverter
- Power (BTU): 9000
- Weight: 15
External Unit
Model:
- Outdoor Unit Catalog Code: MXZ-3F54VF3
- Max number of internal units that can be connected: 3
- Weight: 58 kg
Technical Characteristics Cooling:
- Nominal Capacity (min/max): 5.4Kw (2.9-6.8)
- Nominal Absorbed Power: 1.32 Kw
- SEER: 8.52Kw
- Energy Efficiency Class: A+++
- Annual Energy Consumption: 222 KWh/a
- Theoretical load: 5.4 Kw
Technical Characteristics Heating:
- Nominal Capacity (min/max) : 7.0 (2.6-9.0)
- Nominal Absorbed Power: 1.4 Kw
- SCOP: 4.61 kW
- Energy Efficiency Class: A++
- Annual Energy Consumption: 1520 Kwh/a
- Theoretical load: 5 kw
Performance ;
- Sound pressure min/max: 46/50 dB (A)
- Nominal Sound Power: 60 dB (A)
Dimensions:
- Internal Unit H x W x D: 600 x 750 x 215
- External Unit H x W x D: 710 x 840 x 330
Installation Data:
- Liquid Pipe Diameter: 6.35 mm (1/4) x3
- Gas Pipe Diameter: 9.52 mm (3/8) x3
- Maximum length of pipes: 50 m
- Maximum height difference Internal Unit/External Unit: 15 m External Unit Above
- Maximum height difference Internal Unit7 External Unit: 10 m External Unit Below
Operation Range:
- Cooling : 10 ~ +46 °C
- Heating: 15 ~ +24 °C
General characteristics
The MFZ-KT units are designed to optimize air distribution and offer a simple and elegant design to adapt to any type of furniture.
- Compact and refined design
- High Energy Efficiency
- Exclusive Deflector Movement
- High Efficiency Antibacterial Filter Supplied
- Multisplit compatible
High Heating Capacity:
V Blocking Air Purifying Filter Supplied:
V Blocking is a new purifying filter that improves the previous silver ion filter system, adding an antiviral action capable of inhibiting viruses, bacteria, mold and allergens.
Standard Purifier Filter Supplied:
The standard purifying filter guarantees the removal of coarse polluting particles such as dust and impurities from the air with an additional antibacterial, anti-mold and odor-capturing effect
Multi-Flow Vane:
The delivery vent is characterized by the presence of three different deflectors, each with a profile specifically designed to optimize the distribution of the outgoing air, maximizing comfort in both cooling and heating.
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
