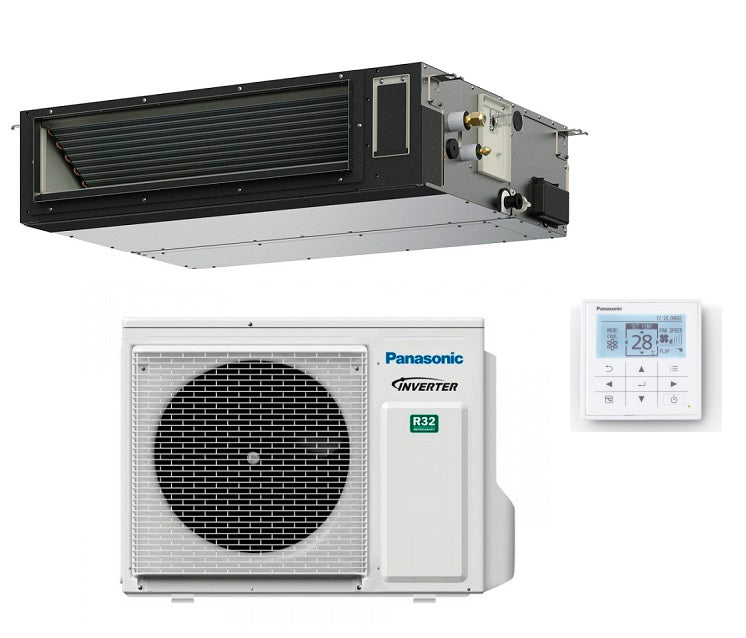

Panasonic Ducted Air Conditioner PACi NX Standard Inverter 12000 btu medium head S-3650PF3 + U-36PZ3E5 R-32 complete with CZ-RTC5B control

Panasonic Ducted Air Conditioner PACi NX Standard Inverter 12000 btu medium head S-3650PF3 + U-36PZ3E5 R-32 complete with CZ-RTC5B control

• Kit KIT-36PF3Z5
• CZ-RTC5B command

Performance data

• Cooling capacity (Nominal) kW 3.4
• SEER/ηsc (2) % 6.0 A+
• Annual consumption in cooling (3 kWh/a 198
• Heating capacity (Nominal) kW 3.4
• SCOP/ηsc (2) % 4.0 A+
• Annual heating consumption (3) kWh/a 839

Internal unit

• Dehumidification capacity L/h 14.0
• Air flow (Hi) m³/min 13.0
• Air flow (Average) m³/min 10.0
• Internal sound pressure (Hi/med/min) (5) dB(A) 30/27/22
• Dimensions HxWxD 250x800x730

External Unit

• Supply voltage V 220 - 230 - 240
• Air flow (Cool) m³/min 33.6
• External sound pressure (Raff -Hi) dB(A) 46
• Dimensions HxWxD mm 619x824x299
• Liquid/Gas pipes 1/4 - 1/2

PACi NX - The new generation has arrived

The NX series with R32 refrigerant was developed to meet the need to simplify renovation work using a 3-wire communication mode. It is integrated with IoT solutions and nanoe™ technology.

PACi NX Series - Standard range: an easy solution to integrate into renovation projects

The new series has been developed with a 3-wire communication mode. This simplifies the replacement of older systems where 3-wire wiring is prevalent

Better indoor air quality

nanoe™ X technology has the potential to inhibit a wide variety of bacteria, viruses and pollutants. This patented technology is designed to improve air quality in both residential and commercial settings.

Key points of the range

PACi: Commercial air-to-air range. The compact, high-efficiency solution for shops, restaurants, offices or residential applications Big savings and greater comfort. Panasonic has developed a wide range of high-efficiency commercial air conditioners. This range confirms our commitment
for the environment. Inverter compressors optimize performance, consequently reducing energy costs.

Energy saving

Refrigerant gas R32. Our heat pumps containing R32 refrigerant show a drastic reduction in the heating potential value
global (GWP).28%
Econavi. Intelligent sensors of the Econavi system (human activity sensor and light sensor) automatically adjust the airflow power, thus saving energy efficiently.

Natural comfort for your interior spaces nanoe™ X, technology based on the benefits of hydroxyl radicals.

Nowadays we worry about leading a healthy and balanced life. We make sure we do adequate physical activity, we are careful about what we eat, what we touch, not always the air we breathe and technology supports us in improving the quality of air in living spaces.

Abundant in nature, hydroxyl radicals (also known as OH- radicals) have the ability to inhibit pollutants, certain types of viruses and bacteria to improve and deodorize the environment. nanoe™ cleaner and more pleasant.

A natural process

Hydroxyl radicals are unstable molecules that react with other elements such as hydrogen, capturing it. Thanks to this reaction, hydroxyl radicals have the potential to inhibit the development of various pollutants such as bacteria, viruses, mold and odors, neutralizing their unpleasant effects. This natural process has important advantages as it helps to improve the quality of internal environments.

The PF3 units have been completely redesigned to ensure better flexibility. It is now possible to install the units even in a vertical position with a significant external static pressure (maximum 150 Pa).

Selectable air inlet position

It is possible to choose the position of the incoming air using a removable panel, to allow rear or bottom entry, depending on the duct installation.
