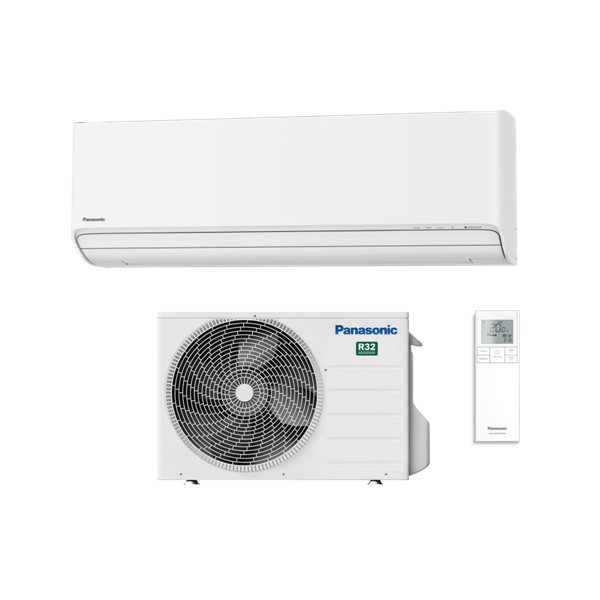

Panasonic Inverter Air Conditioner Etherea White Series 12000 Btu CS-Z35ZKEW R-32 Integrated Wi-Fi Matt White A+++/A++
Panasonic Inverter Air Conditioner Etherea White Series 12000 Btu CS-Z35ZKEW R-32 Integrated Wi-Fi Matt White A+++/A++
Panasonic Inverter Air Conditioner Etherea White Series 12000 Btu CS-Z35ZKEW R-32 Integrated Wi-Fi Matt White A+++/A++
Technical features
- Kit KIT-Z35-ZKE
- Cooling capacity (Nominal) kW 3.50
- Cooling capacity (Min) kW 0.85
- Cooling capacity (Max) kW 4.20
- EER (Nominal) (1) W/W 4.27
- SEER (2) 9.50 A+++
- Theoretical capacity in cooling. - Pdesign kW 3.5
- Cooling consumption (Nominal) kW 0.82
- Cooling consumption (Min) kW 0.20
- Cooling consumption (Max) kW 1.16
- Annual consumption in cooling (3) kWh/a 129
- Heating capacity (Nominal) kW 4.00
- Heating capacity (Min) kW 0.80
- Heating capacity (Max) kW 5.50
- Heating capacity at -7°C kW 3.2
- COP (Nominal) (1) W/W 4.55
- SCOP (2) 5.20 A+++
- Heating consumption (Nominal) kW 0.88
- Heating consumption (Min) kW 0.18
- Heating consumption (Max) kW 1.46
- Annual heating consumption (3) kWh/a 781
Indoor unit CS-Z35ZKEW
- Supply voltage V 230
- Internal / external unit connections mm² 4 x 1.5
- Air flow (Cooling) m³/min 12.7
- Air flow (Heating) m³/min 14.4
- Dehumidification capacity L/h 2
- Internal sound pressure (Cool -Hi) (4) dB(A) 42
- Internal sound pressure (Cool -Hi) (4) dB(A) 42
- Internal sound pressure (Raff-Lo) (4) dB(A) 28
- Internal sound pressure (Raff-Q-Lo) (4) dB(A) 19
- Internal sound pressure (Heating -Hi) (4) dB(A) 43
- Internal sound pressure (Risc -Lo) (4) dB(A) 33
- Internal sound pressure (Risc -Q-Lo) (4) dB(A) 1
- Indoor unit dimensions (Height) 295 mm
- Indoor unit dimensions (Width) 870 mm
- Indoor unit dimensions (Depth) 229 mm
- nanoe X Mark 3 generator
Outdoor unit CU-Z35ZKE
- Air flow (Cool) m³/min 29.8
- Air flow (Heating) m³/min 29.8
- External sound pressure (Cool -Hi) (4) dB(A) 48
- External sound pressure (Cool -Hi) (4) dB(A) 48
- External sound pressure (Heating -Hi) (4) dB(A) 50
- External unit dimensions (Height) (5) mm 542
- External unit dimensions (width) (5) mm 780
- External unit dimensions (Depth) (5) mm 289
- Net weight 31 kg
- Connection pipe (Liquid side) Inch (mm) 1/4 (6.35)
- Connection pipe (Gas side) Inch (mm) 3/8 (9.52)
- Connection pipe length 3 ~ 15 m
- Difference in elevation (int/east) (6) m 15
- Length cooing without adding refrigerant 7.5 m
- Additional refrigerant quantity g/m 10
- Refrigerant (R32) / CO2 Eq. kg / T 0.81 / 0.55
- Operating external temperature range (Cool- Min) °C -10
- Operating external temperature range (Cool- Min) °C -10
- Operating external temperature range (Cool - Max) °C +43
- Operating outdoor temperature range (Heating - Min) °C -20
- Operating external temperature range (Heating - Max) °C +24
New Etherea with nanoe™
A smart solution to improve air quality and make your home comfortable and welcoming
New Etherea models: an ideal proposal for your home The new Etherea models are equipped with nanoe™ X technology based on the benefits of hydroxyl radicals. With advanced control options, high performance, a sleek design and smart features, Etherea is designed to make your home comfortable, cleaner and a great place to live.
Natural comfort for your interior spaces nanoe™ the environment. nanoe™
nanoe ™ nanoe™ Allow your air conditioning system to improve air quality by taking advantage of nanoe™ X technology and the Panasonic Comfort Cloud app.
What makes nanoe™ X technology unique?
Thanks to this advanced technology, even tightly woven fabrics can be treated with nanoe™
Internal cleaning
The internal cleaning function allows you to sanitize the internal structure of the internal unit. It uses nanoe™
The new cross-flow fan is coated to prevent dust from adhering to its surfaces and may be effective against certain types of bacteria and mold
Advanced remote control and voice assistant
Panasonic has dedicated time and resources to developing intelligent technology to improve its air conditioning systems and offer a variety of benefits. Etherea is compatible with Panasonic's Comfort Cloud app, designed to easily manage all systems functions with one smart device. Convenient centralized control The Panasonic Comfort Cloud app allows you to conveniently manage and monitor multiple air conditioning units from a single mobile device.
The Etherea range takes advantage of the Aerowings 2.0 function. Panasonic's Aerowings function incorporates two independent fins that concentrate the air flow to heat or cool the room in the shortest possible time while helping to evenly distribute fresh air throughout the room. room. Thanks to the new wider secondary fin (72 mm), more than doubled in size compared to other conventional models, control over the direction of the airflow has been further improved.
