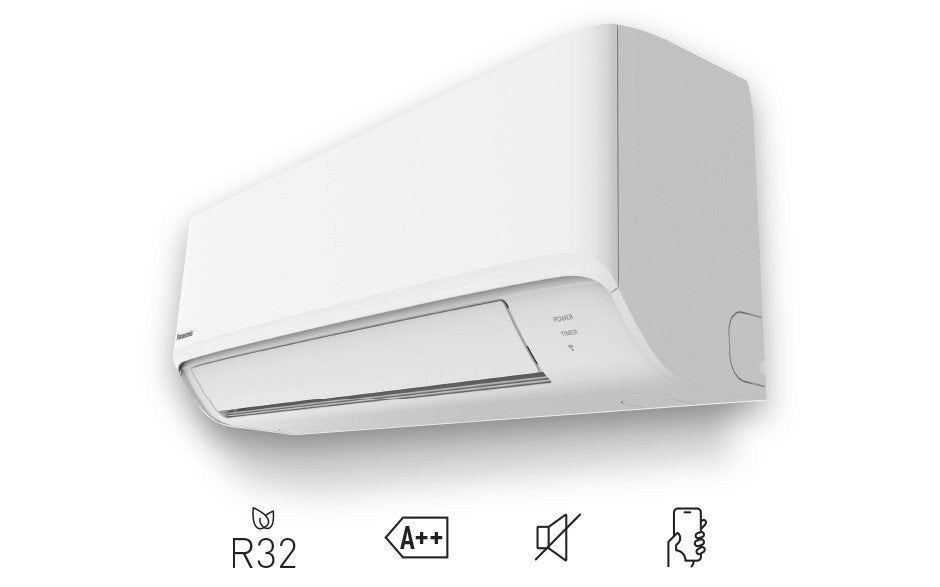

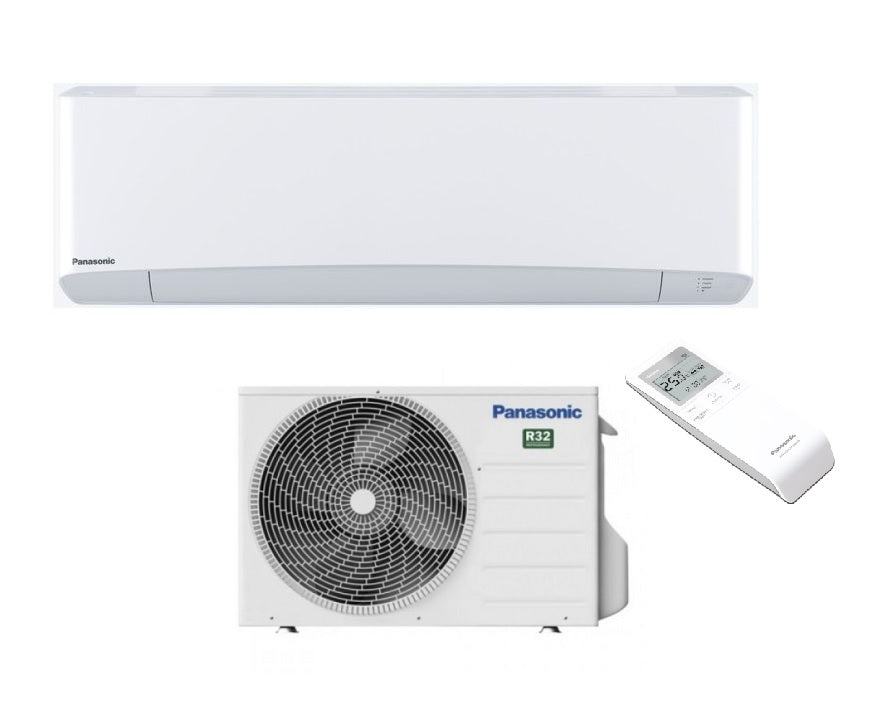

Panasonic Inverter Air Conditioner TZ Series 12000 Btu CS-TZ35ZKEW R-32 Integrated Wi-Fi A++/A++ - New
Panasonic Inverter Air Conditioner TZ Series 12000 Btu CS-TZ35ZKEW R-32 Integrated Wi-Fi A++/A++ - New
Technical features
- Indoor unit catalog code: CS-TZ35ZKEW
- Outdoor unit catalog code: CU-TZ35ZKE
- Power: 12000 Btu
- Integrated Wi-Fi
Energy efficiency
- SEER : 6.8
- SCOP: 4.60
- Cooling Energy Efficiency Class: A++
- Heating Energy Efficiency Class: A++
- Annual Energy Consumption in Cooling: 180 kWh/a
- Annual Energy Consumption in Heating: 852 kWh/a
- Cooling Capacity: 3.5 kW
- Heating Capacity: 4.0 kW
- Internal Unit Sound Pressure Level: 42/30/20 dB(A)
- External Unit Sound Pressure Level: 48/50 dB(A)
Electrical Data
- Power (V,Hz, Ø): 220~240/50/1
- Refrigerant gas: R32
- Operating range
- - Cooling: -10° ~ 43°C
- - Heating: -15° ~ 24°C
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Maximum length of pipes: 15 m
- Maximum height difference Internal Unit / External Unit: 15 m
Dimensions and weight
- Internal Unit Dimensions (HxWxD): 290x779x209 mm
- Internal Unit Weight: 8 Kg
- External Unit Dimensions (HxWxD): 542x780x289 mm
- External Unit Weight: 29 Kg
Super-compact wall-mounted TZ
The ideal air conditioner for the narrowest spaces in your home. TZ with powerful and efficient R32 refrigerant

Air quality
· nanoe ™ X Mark 1 technology based on the benefits of hydroxyl radicals
· Works by improving air quality, guaranteeing a cleaner and more pleasant environment throughout the day.
Intelligent control
· Built-in Wi-Fi for instant connectivity, now with faster, easier setup
· Advanced control via smartphone with Panasonic Comfort Cloud app.
· Compatible with Google Assistant and Amazon Alexa
Design
· Super compact design, only 779 mm wide
· Frame and components designed for easy installation and maintenance
· Easy-to-use high-class backlit remote control
High comfort
· Aerowings to control the direction of the airflow
· Super Quiet! Only 20dB(A)
nanoe™ X: technology that improves air quality 24/7
Nowadays we worry about leading a healthy and balanced life. We make sure we do adequate physical activity, we pay attention to what we eat, what we touch, but we don't always pay attention to the air we breathe. Thanks to technology it is possible to improve the air quality of indoor environments.
It works by improving the quality of indoor air, so as to make the environment around you a cleaner place, guaranteeing the maximum level of comfort. nanoe™
Technology designed for maximum comfort
Thanks to Panasonic's Aerowings function it is possible to guarantee greater control over the direction of the flow
of air thus making the environment more comfortable. Homogeneous and uniform cooling. In cooling mode, the fins direct the air flow upwards, thus avoiding direct exposure to a flow of cold air.
Panasonic air conditioners with Aerowings feature an internal design with a larger intake grille
and super-high fan speed to produce greater airflow
Homogeneous and uniform cooling. In cooling mode, the fins direct the air flow upwards, thus avoiding direct exposure to a flow of cold air.
Supercompact design
The compact design of the internal units is only 779 mm wide. This allows for greater installation possibilities,
even in limited spaces above a door.
