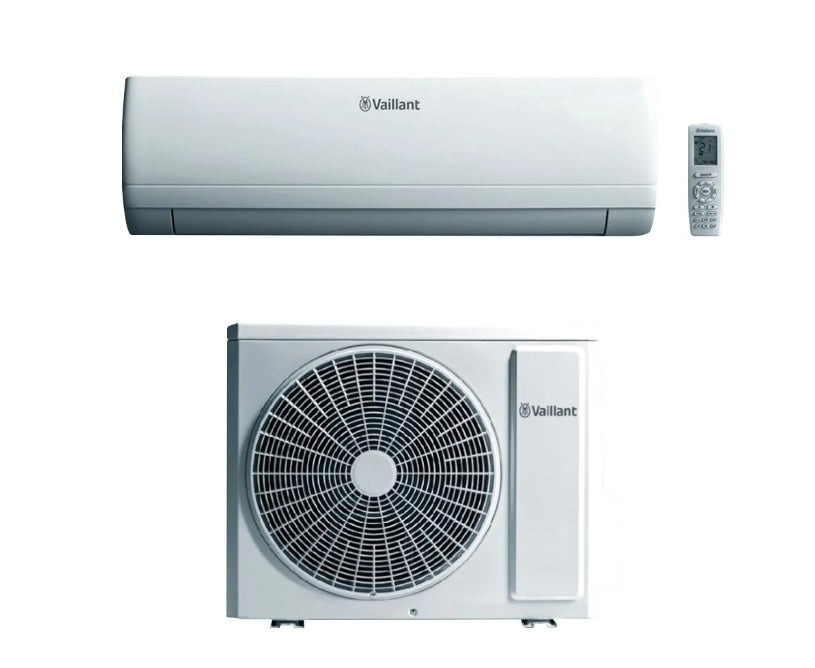

Vaillant air conditioning Inverter climaVAIR INTRO 12000 btu VAIL 1-030 WN A++/A+ Wi-Fi Optional

Vaillant air conditioning Inverter climaVAIR INTRO 12000 btu VAIL 1-030 WN A++/A+ Wi-Fi Optional

Technical features

Model:

• Combination code: VAIL 1-025 WN
• Indoor unit code: VAIL 1-030 WNI
• Outdoor unit code: VAIL 1-030 WNO
• Type: heat pump
• Power: 12000 Btu

Energy efficiency:

• SEER: 6.1
• SCOP: 4.0
• Energy Efficiency Class (Cooling): A++
• Energy Efficiency Class (Heating): A+

Performance:

• Cooling power kW 3.2
• Heating power kW 3.40
• Air flow (Turbo/H/M/L) m3 /h 590/520/400/320
• Indoor unit sound pressure (Turbo/H/M/L) dB(A) 41/37/33/26
• External unit sound pressure db (A) 51
• Power (V/Hz/Φ): 230/50/1

Characteristics:

• Refrigerant gas: R-32
• DC Inverter compressor type
• External cooling temp. (min-max) °C -15 | 483
• External heating temp. (min-max) °C -15 | 24
• Liquid/gas pipe diameter 1/4 - 3/8"

Dimensions and weight:

• Internal Unit HxWxD (mm): 254x819x185
• External Unit including refrigeration connections HxWxD (mm): 550x775x320

climaVAIR intro

Compact, versatile and simple to install, the systems of the "intro" range are the answer for those who want a discreet and functional design, without giving up the best of technology."

In fact, the internal units, with a depth of up to 18.5 cm, adapt perfectly to all installation contexts. Achieving the perfect balance between energy efficiency and comfort has never been so simple with the intuitive Timer function, to program the air conditioning on and off and avoid unnecessary waste of energy. Furthermore, the WiFi module, available as an accessory for all products in the climaVAIR intro range, together with the free App, allows you to manage the comfort of your home with maximum flexibility, even from your smartphone.

Salient features

• Compact design and compact dimensions, the air conditioners of the climaVAIR intro line are designed to guarantee maximum flexibility in every installation context (depth of the internal unit up to 18.5 cm and weight up to 7.8kg). Predisposition for the WiFi module accessory for remote management
  (accessory) with free App for iOS and Android systems already available for download (see page 32)
• Seasonal efficiency value in cooling up to A++
• Standard infrared remote control with "I Feel" function. When the function is active, the room temperature is measured by the temperature sensor integrated in the remote control
• "Turbo" function to reach the desired temperature in the shortest time possible
• "Auto clean" function By eliminating humidity inside the internal unit and keeping the heat exchanger dry, it prevents the proliferation of bacteria and bad odors

Product Warranty All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
