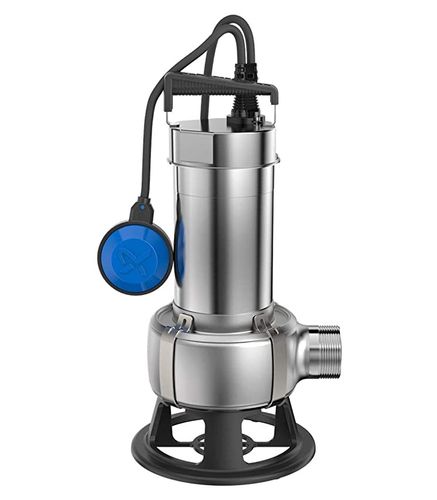

Grundfos submersible single-impeller single-phase electric pump for sewage in stainless steel ap 35b.50.06.a1 96004562

Grundfos submersible single-impeller single-phase electric pump for sewage in stainless steel ap 35b.50.06.a1 96004562

General characteristics

• Brand: Grundfos
• Model: ap 35b.50.06.a1
• Code: 96004562

Data sheet

• Max flow rate: 5 l/s
• Max head: 11 m
• Impeller type: VORTEX
• Max. Particle: 35 mm

Material

• Pump body: EN 1.4301 AISI 304 stainless steel
• Impeller Steel: stainless steel EN 1.4301 AISI 304

Installation

• Ambient temperature limit: 0 .. 40 °C
• Connection type: Rp
• Size attack: 2 inch
• Max. depth installation length: 2 m
• Inst. dry/submerged chamber: S
• Automatic pairing: Y

Liquid

• Liquid temperature range: 0 .. 40 °C
• Density: 998.2 kg/m³

Electrical data

• Power input P1: 1 kW
• Motor type: 1-phase PSC
• Rated power - P2 :0.66 kW
• Mains frequency: 50 Hz
• Rated voltage: 1 x 230V
• Rated current: 4.6A
• Cos phi - power factor: 0.98
• Rated transmission speed: 2810 rpm
• Capacitor Capacitance - Running: 16 µF/400 V
• Protection class (IEC 34-5): IP68
• Insulation class (IEC 85): F
• Integrated motor protection: CONTACT
• Thermal protection: internal
• Electric cable length: 5 m
• Cable plug type: SCHUKO

Controls

• Level switch: Float

Other

• Net weight: 9.9kg
• Gross weight: 11.6 kg

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 12 months from the date of purchase.
