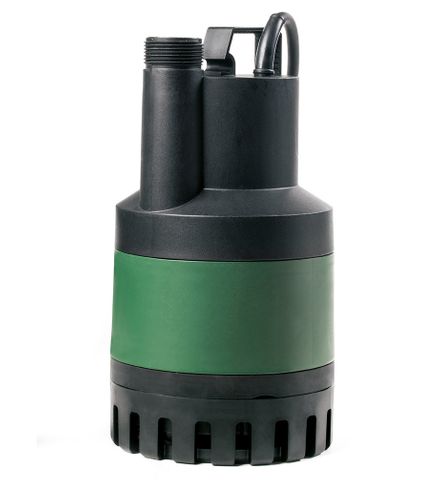

DAB NOVA Up 600 M-NA Submersible Electric Pump for Clear Water Drainage for Domestic Use 99504625

Technical features

• Model

  Dab Submersible Electric Pump Model Nova Up 600 M-NA For Clear Water Drainage For Domestic Use

• Energy efficiency

  Operation range:
  from 1 to 15 m3
  /h with heads up to 10 metres.
  Liquid temperature range:
  from 0°C to +35°C for domestic use.
  Pumped liquid: cloudy water without fibers
  Minimum draft depth:
  NOVA UP 300 MA 120 mm
  NOVA UP 300 M-NA 60 mm
  NOVA UP 600 MA 165 mm
  NOVA UP 600 M-NA 70 mm
  Maximum immersion: 7 meters.
  Installation: vertical, fixed or portable.
  Degree of protection: IP 68.
  Insulation class: F.

APPLICATIONS
The vertical delivery submersible drainage pump is suitable for domestic use in fixed applications with automatic operation,
for drying out basements and garages subject to flooding.

Thanks to its compact and easy to handle shape, it also finds particular application as a portable pump for emergency cases such as: withdrawing water from tanks or rivers, emptying swimming pools and fountains or excavations and
underpasses.

Also suitable for gardening and hobbies in general.

This pump can be used with liquids containing sized bodies
solid up to 10mm. The level switch allows a fixed installation guaranteeing automatic operation. Equipped with a removable filter, it vacuums
up to a minimum of 2/3mm (with filter removed).

CONSTRUCTION FEATURES OF THE PUMP

Pump body, impeller, cap and suction grille in water-resistant technopolymer.
Motor, rotor shaft and screws in stainless steel.
Triple seal with interposed rings with oil pre-chamber.

CONSTRUCTION FEATURES OF THE ENGINE

Continuous service asynchronous submersible type.
Stator inserted in an hermetic stainless steel casing and covered by a cap that encloses wiring, microswitch and capacitor.
Rotor mounted on oversized, greased-for-life ball bearings to ensure silence and durability. Thermo-amperometric protection
built-in and permanently inserted capacitor.

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
