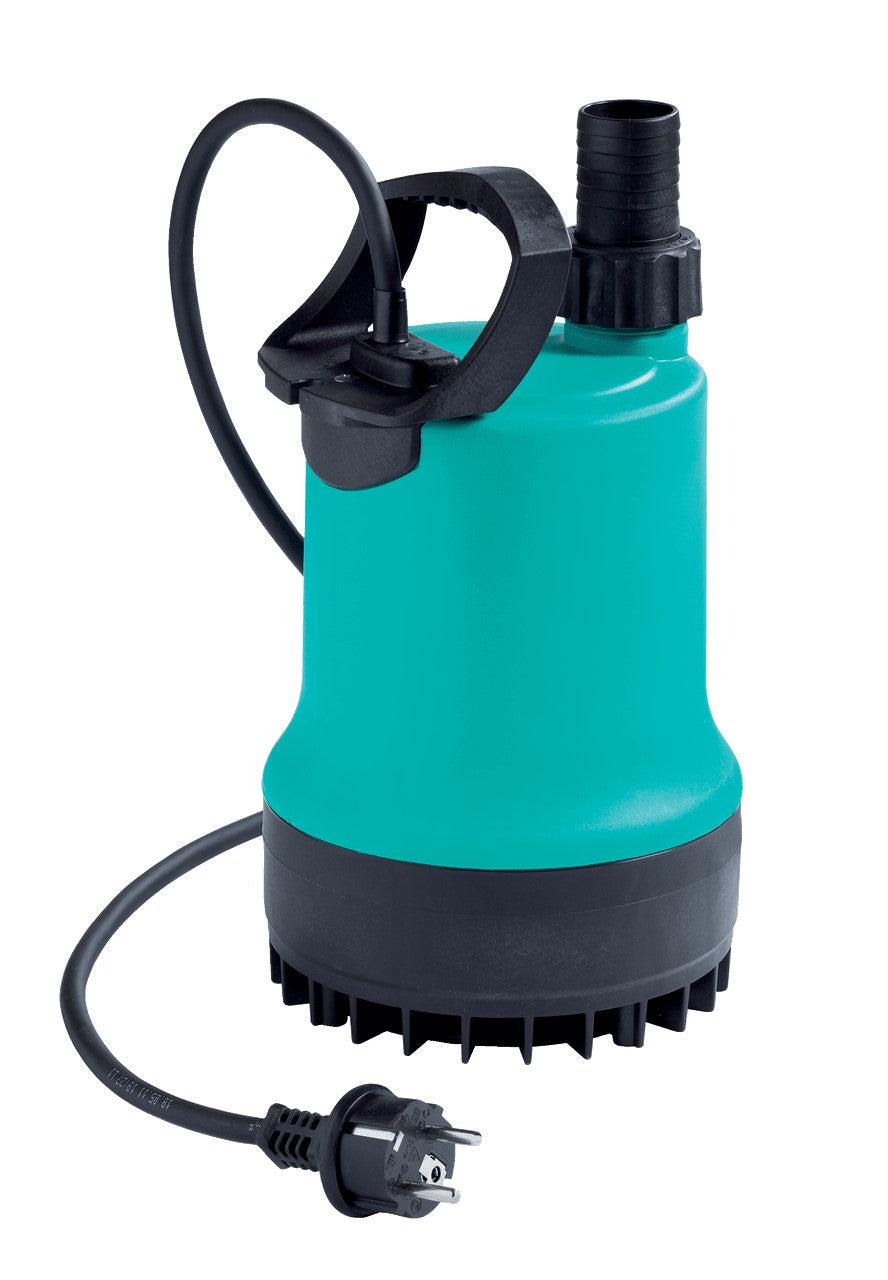

Wilo submersible electric pump for mobile submerged installation Drain TM 32/7 A 4048412

Wilo submersible electric pump for mobile submerged installation Drain TM 32/7 A 4048412

General characteristics

• Brand: Wilo
• Model: Drain TM 32/7 A
• Code: 4048412

Data sheet

• Hydraulic data
• Maximum operating pressure PN: 2 bar
• Impeller structure type: Open multi-channel impeller
• Free spherical passage of the hydraulic system: 10 mm
• Max. immersion depth: 1 m
• Min. fluid temperature Tmin: 3 °C
• Max. temperature of the fluid Tmax: 35 °C
• Min. ambient temperature Tmin: 3 °C
• Max. ambient temperature Tmax: 35 °C

Engine data

• Mains power: 1~230V, 50Hz
• Voltage tolerance: ±10%
• Power factor cos f: 0.92
• P2 motor rated power: 0.25 kW
• Power consumption P1 max: 320 W
• Rated current IN: 1.5A
• Inrush current I: 2.4A
• Connection type: Direct online (DOL)
• Nominal rpm n: 2900 1/min
• Max. frequency of starts: t 50 1/h
• Insulation class: F
• Degree of protection: IP68
• Operating mode (immersed): S1
• Operation mode (non-submerged): S3-25%

Cable

• Connection cable length: 4 m
• Cable type: H07RN-F
• Cable section: 3G1 mm²
• Mains plug: Schuko
• Connection cable type: Non-removable

Equipment/operation

• Float Switch: Yes
• Type of explosion protection: -
• Motor protection: Bimetal

Materials

• Pump body: PP-GF30
• Impeller: PPE/PS-GF20
• Pump side gasket material: BQ1PFF
• Engine side gasket material: NBR
• Gasket material: NBR
• Motor material: Stainless steel

Assembly quota

• Pipe connection on the pressure side: G 1¼
