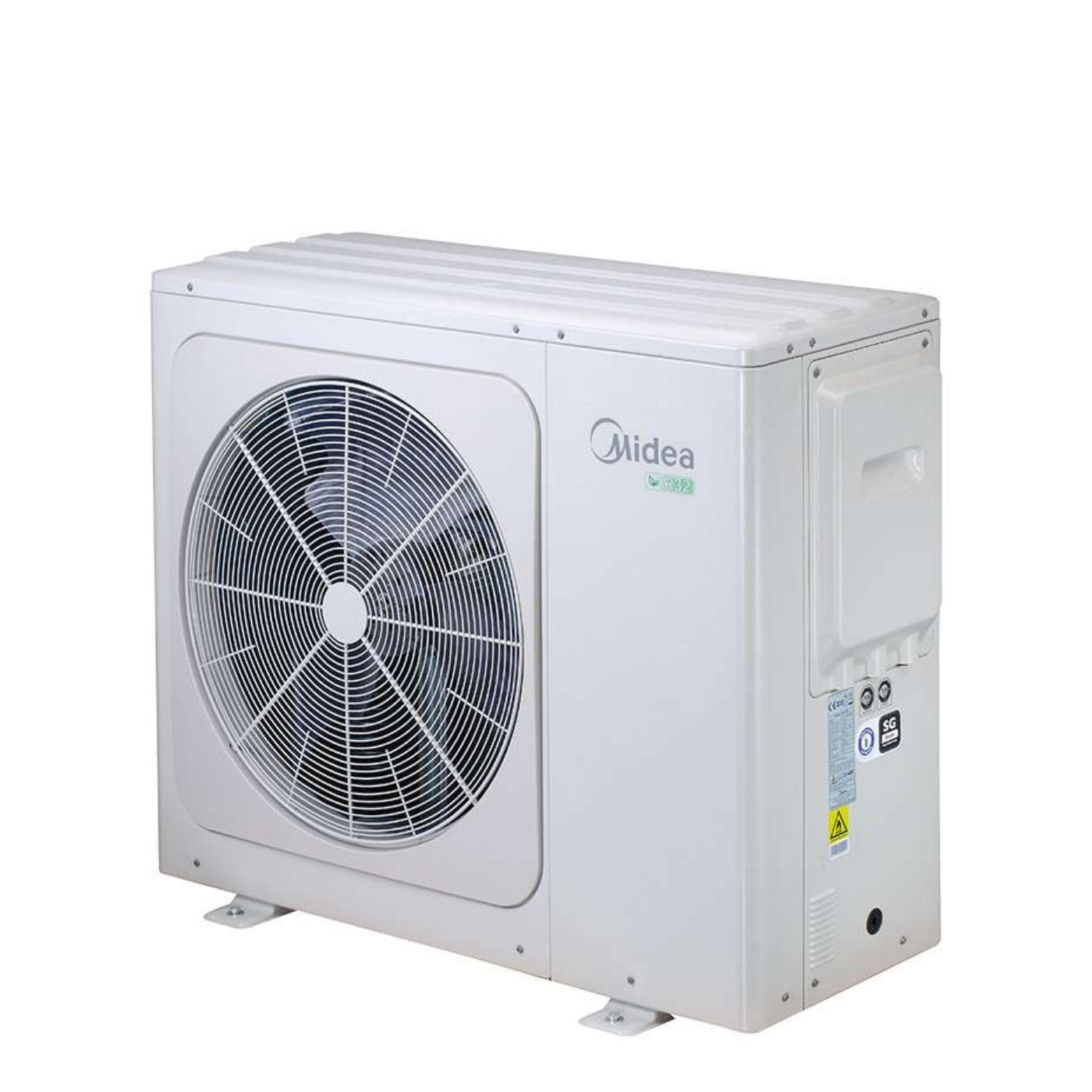

Monobloc Air/Water Heat Pump Midea M Thermal Power MHC-V12WD2N8-C Single Phase R-32 with Control Included

Technical features

• Model: MHC-V12WD2N8-C
• Command included

Energy efficiency

• Energy efficiency class TMA 35°C: A+++
• Energy efficiency class TMA 55°C: A++

Performance

Heating at +7°C TE 85% RH and TMA+35°C Δ 5

• Nominal capacity: 12.2 kW
• Electrical power: 2,490 kW
• COP: 4.90

Heating at +7°C TE 85% RH and TMA+45°C Δ 5

• Nominal capacity: 12.5 kW
• Electrical power: 3,378 kW
• COP: 3.70

Heating at +7°C TE 85% RH and TMA+55°C Δ 5

• Nominal capacity: 12.0 kW
• Electrical power: 4.0 kW
• COP : 3.0

Cooling to +35°C TE TMA+18°C Δ 5

• Nominal capacity: 12.2 kW
• Electrical power: 2,652 kW
• EER: 4.60

Cooling to +35°C TE TMA+7°C Δ 5

• Nominal capacity: 11.6 kW
• Electrical power: 3,742 kW
• EER: 3.10

Electrical data

• Power (V,Hz, Ø): 220~240/50/1
• Refrigerant gas: R-32
• Operating range
• - Cooling: -5° ~ 43° C
• - Heating: -25° ~ 35° C
• - DHW: -25° ~ 43° C

Acoustic data

• Sound power: 70 dB(A)

Dimensions and weight

• Dimensions (WxHxD): 1040x865x410 mm
• Weight: 106.0 kg

Air/Water monoblock heat pump Midea M Thermal Monoblock (Power Series)

Monobloc multipurpose generator for cooling, heating and domestic hot water production. All the components of the refrigeration circuit and the hydraulic circuit are contained in a single module.

Reversible version : M Thermal produces hot water for radiant heating or radiators or for the production of domestic hot water using a storage tank equipped with an exchanger not supplied by Midea. The product is also capable of operating in cooling mode for summer air conditioning .

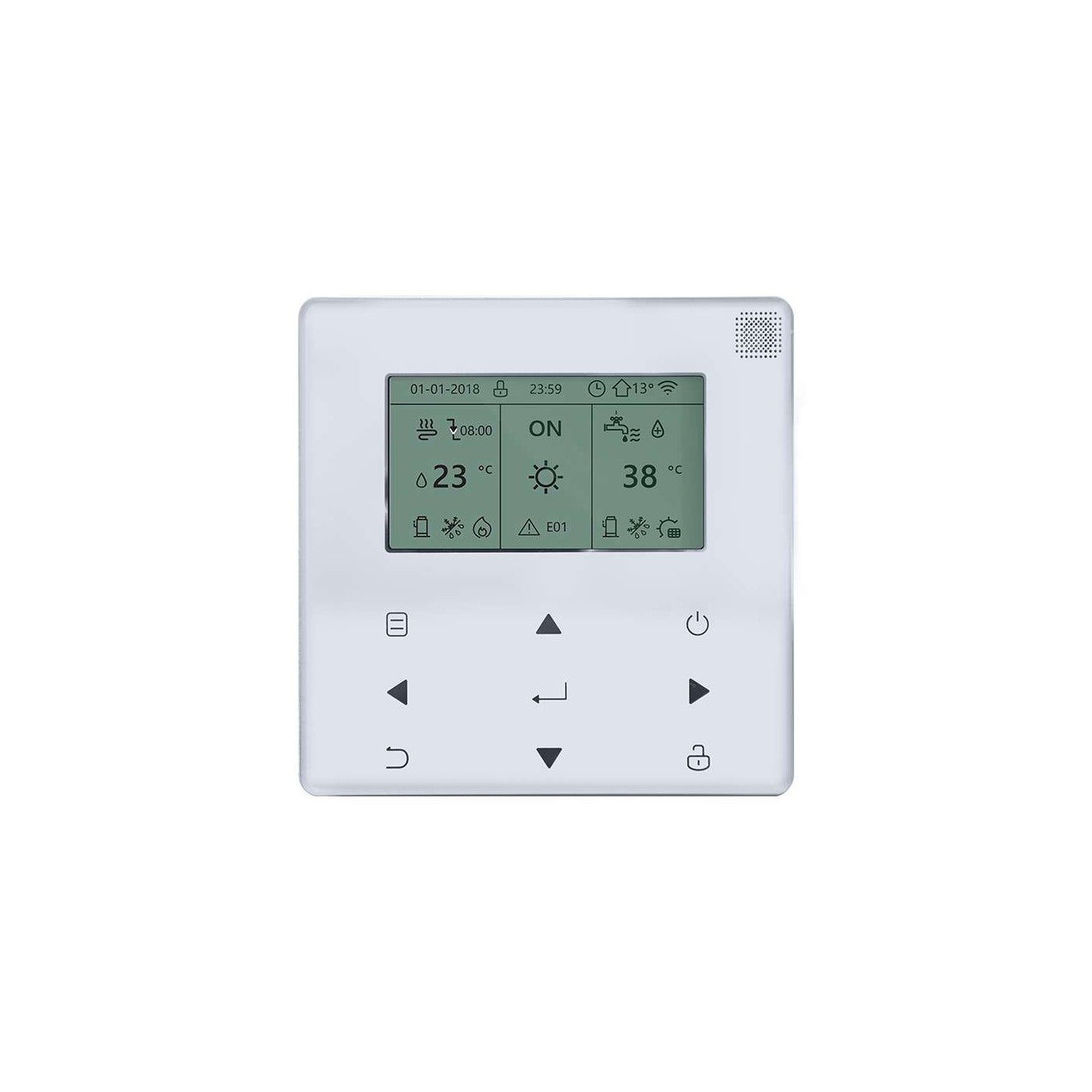

Wired control with Smart Kit : M Thermal is equipped with a wired control with integrated Smart Kit which allows you to control the product from the MSmartHome application. The control is also equipped with a weekly programmer for managing the operation, a sensor for detecting the room temperature and a DHW disinfection programming function.

SG ready certification : The M Thermal Power Series Monoblock units are equipped with interface mechanisms for connection with Smart Grid: the management of the products occurs in accordance with the electricity supply in a simple and economical way.

Adjustable water delivery temperature up to 65°C : M Thermal allows you to set the water delivery temperature for the heating function up to maximum temperatures of 65°C. The system is capable of operating with both low enthalpy and medium temperature systems.

Two temperature zone control : M Thermal is able to control two differentiated temperature zones to simultaneously manage terminals that operate at different diffusion temperatures. Various types of hydraulic control systems such as 3-way valves, circulation pumps and one-way valves can be connected to the product.

Wired control with HomeBus protocol : M Thermal Power Series Monoblock uses a simple bipolar conductor for control wiring. The connection between the unit and the control is simpler and free from wiring errors

Solar thermal integration M Thermal can control a system of solar thermal panels for integration with the production of domestic hot water.

DHW production : The M Thermal units can produce domestic hot water using a tank and an optional temperature detection sensor.

Compact dimensions : The units have extremely compact dimensions which allow installation in any context.

DHW recirculation pump control : M Thermal Power Series Monoblock is able to control a recirculation pump for the DHW circuit. It is possible to set up to a maximum of 12 daily programming on the wired control to always guarantee immediate delivery to the withdrawal points.

Product guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
