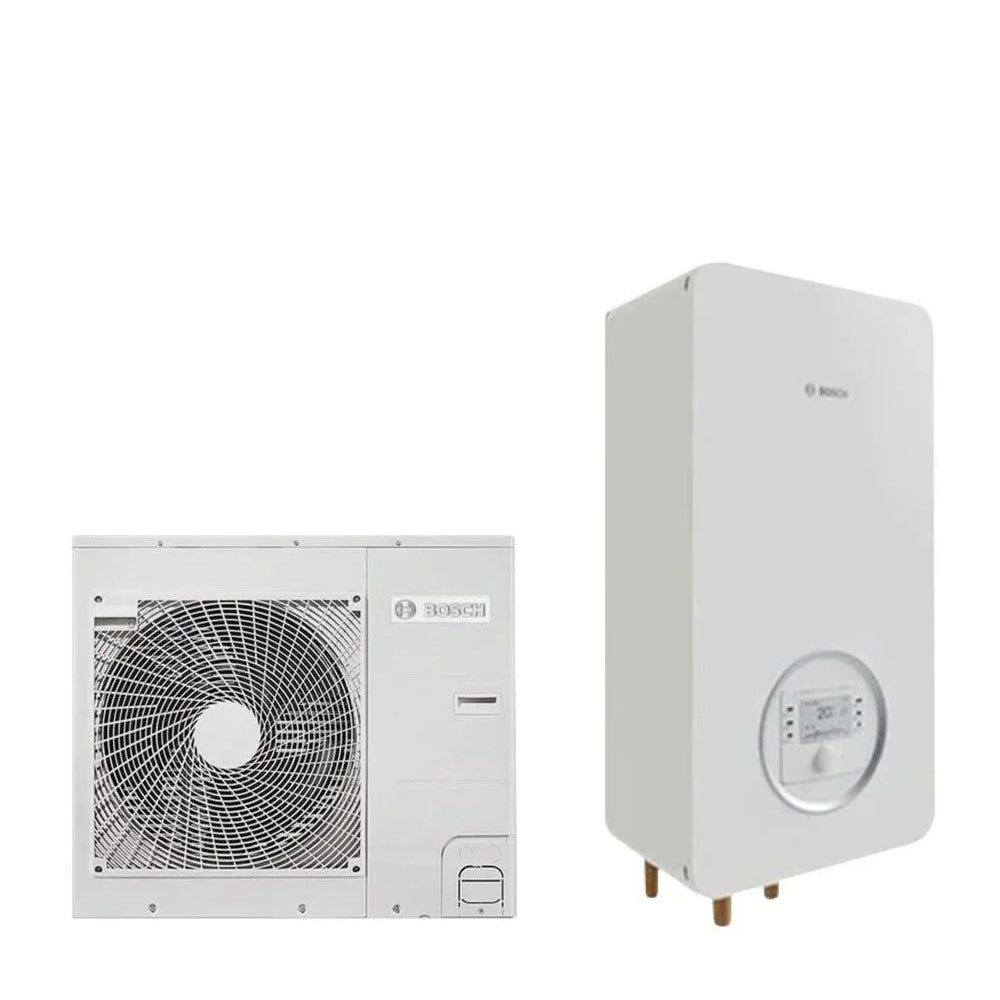

Bosch CSH 3000i AW 6 ORS Reversible Air-Water Split Heat Pump of 6 kW R-40 + Wall-Mounted Internal Unit Code 7735252262
Bosch CSH 3000i AW 6 ORS Reversible Air-Water Split Heat Pump of 6 kW R-40 + Wall-Mounted Internal Unit Code 7735252262
IN CASE OF NO IMMEDIATE AVAILABILITY, THE PRODUCT WILL BE ORDERED AND SHIPPED WITHIN 10 WORKING DAYS.
Technical features
- Model: CSH3000iAW 6 ORS
- Indoor unit code: 8732940817
- External unit code: 8738206020
- Product code: 7735252262
Optional commands
- CR10 modulating thermostat
Energy efficiency
- Average climate energy efficiency class: A+
- Average climate annual energy consumption: 3532 kW
Performance
Heating
- Nominal thermal power with air 7° C and water 35° C: 8.61 kW
- Maximum thermal power with air 7° C and water 35° C: 8.61 kW
Cooling down
- Nominal thermal power with air 35° C and water 18° C: 6.87 kW
- Maximum thermal power with air 35° C and water 18° C: 8.85 kW
Performance
- Sound pressure: 52 dB(A)
- Sound power: 62 ~ 65 dB(A)
- Maximum flow temperature of the heat pump in heating / DHW production: 55° C
- Minimum heat pump delivery temperature in cooling: 7° C
Electrical Data
- Power (V,Hz, Ø): 220~240/50/1
- Refrigerant gas: R-410
- Operating range
- - Cooling: 15° ~ 45° C
- - Heating: -20° ~ 35° C
Dimensions and weight
- Dimensions (WxHxD): 950x834x390 mm
- Weight: 212 kg
Bosch heat pump with innovative wall-mounted internal unit that combines efficiency and flexibility to adapt to any need
Guaranteed energy savings
Guaranteed energy savings thanks to the high performance of the heat pump in both winter and summer
Maximization of savings
The regulation of the heat pump in hybrid systems is able to establish which is the most advantageous energy source through real-time measurements, in order to maximize economic savings
Wide range of powers
This heat pump offers a wide range of powers to satisfy every need, with seven power sizes from 5 kW to 15 kW with single-phase and three-phase power supply
Advantages
✓ Maximum protection from freezing of the connection between the internal and external units thanks to the split refrigerant circuit pre-loaded with the R410 refrigerant fluid
✓ Management of up to 4 heating and/or cooling circuits
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
