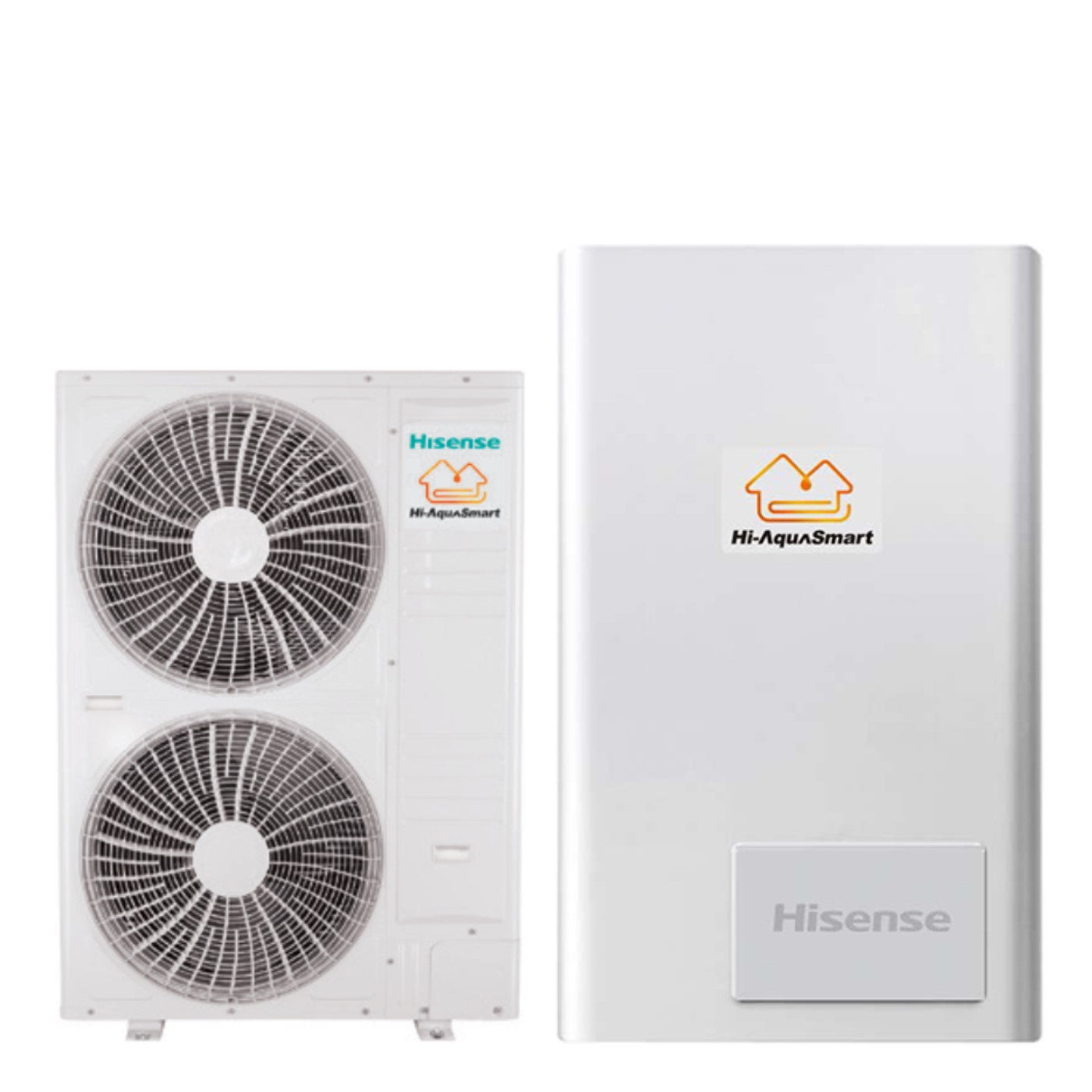

Hisense Hi-AquaSmart AHM-160UXCSAPA3 + AHW-160UCSEP R-410 Dual Fan Air/Water Split Heat Pump with Control Included

IN CASE OF NO IMMEDIATE AVAILABILITY, THE PRODUCT WILL BE ORDERED AND SHIPPED WITHIN 10 WORKING DAYS.

First start-up included

Technical features

• Indoor unit catalog code: AHW-140UCSEP
• Outdoor unit catalog code: AHM-160UXCSAPA3
• Command Included

Optional commands

• Temperature sensor: HTS-E1000A

Energy efficiency

• SCOP: 4.40
• Energy efficiency class: A+++

Performance

• Nominal heating capacity: 16.0 kW
• Nominal cooling capacity: 1,2,5 kW
• Indoor unit sound pressure: 33 dB(A)
• Outdoor unit sound pressure: 51~ 52 dB(A)
• Indoor unit sound power: 46 dB(A)
• External unit sound power: 65 ~ 66 dB(A)

Electrical Data

• Power (V,Hz, Ø): 220~240/50/1
• Refrigerant gas: R-410
• Operating range
• - Cooling: 10° ~ 43° Cbs
• - Heating: -20° ~ 35° Cbs
• - DHW: -20° ~ 43° Cbs

Installation Data

Dimensions and weight

• Internal unit dimensions (HxWxD): 890x520x320 mm
• External unit weight: 58 kg
• External unit dimensions (HxWxD): 1380x950x370 mm
• External unit weight: 111.5 kg

Hisense Hi-AquaSmart heat pump High efficiency 3 in 1 solution

The Hi-Aquasmart air-water heat pump system is able to capture free energy from the atmosphere and, with limited electricity consumption, use this heat in a useful way for heating and the production of hot water healthcare. By reversing the refrigeration cycle during the summer season, it also allows the internal environments to be air conditioned. In addition to allowing significant energy savings compared to traditional combustion boilers, thanks to the particular steam injection compressor it allows the thermal capacity to be kept unchanged as the external temperature decreases. These peculiarities make Hi-AquaSmart particularly effective even in renovations and in locations with very harsh climates.

Steam Injection Technology

Hi-Aquasmart adopts a steam injection scroll compressor, characterized by a higher compression ratio, better lubrication and a lower noise level than normal compressors. The steam injection system (EVI) and the stepless inverter regulation technique significantly improve the effectiveness of the refrigeration cycle and allows the thermal capacity to be kept practically constant even in the most demanding working conditions

Capacity unchanged at low external temperatures

Hi-Aquasmart can keep the heating capacity practically unchanged even at low ambient temperatures without the need for electrical resistors or additional heat sources. For example, the 14 kW model maintains the same nominal capacity up to -15°C, the 16 kW model up to -10°C

High efficiency DC circulator

The Hi-Aquasmart series is equipped with a DC (inverter) pump which allows you to minimize energy consumption for water circulation

Different operating modes

Different operation modes are available to customize and meet user needs

• Seven day timer
• Holiday setting mode
• OTC control mode
• DHW priority mode

Reduction of management costs

Compared to other traditional heating methods such as electric, oil or gas boilers, the heat pump system is much more efficient and consequently allows significant savings on energy bills.

Reduction of CO ₂ emissions

The heat pump allows you to significantly reduce CO2 emissions because by exploiting free energy from the air it reduces the need for equivalent primary energy

• 66% less than electric heaters
• 50% less than oil boilers
• 30% less than gas boilers

General system configuration

In addition to guaranteeing high thermal performance even in harsh climates, Hi-Aquasmart can manage external energy sources such as gas boilers and solar thermal, creating hybrid systems capable of guaranteeing maximum reliability in all conditions
