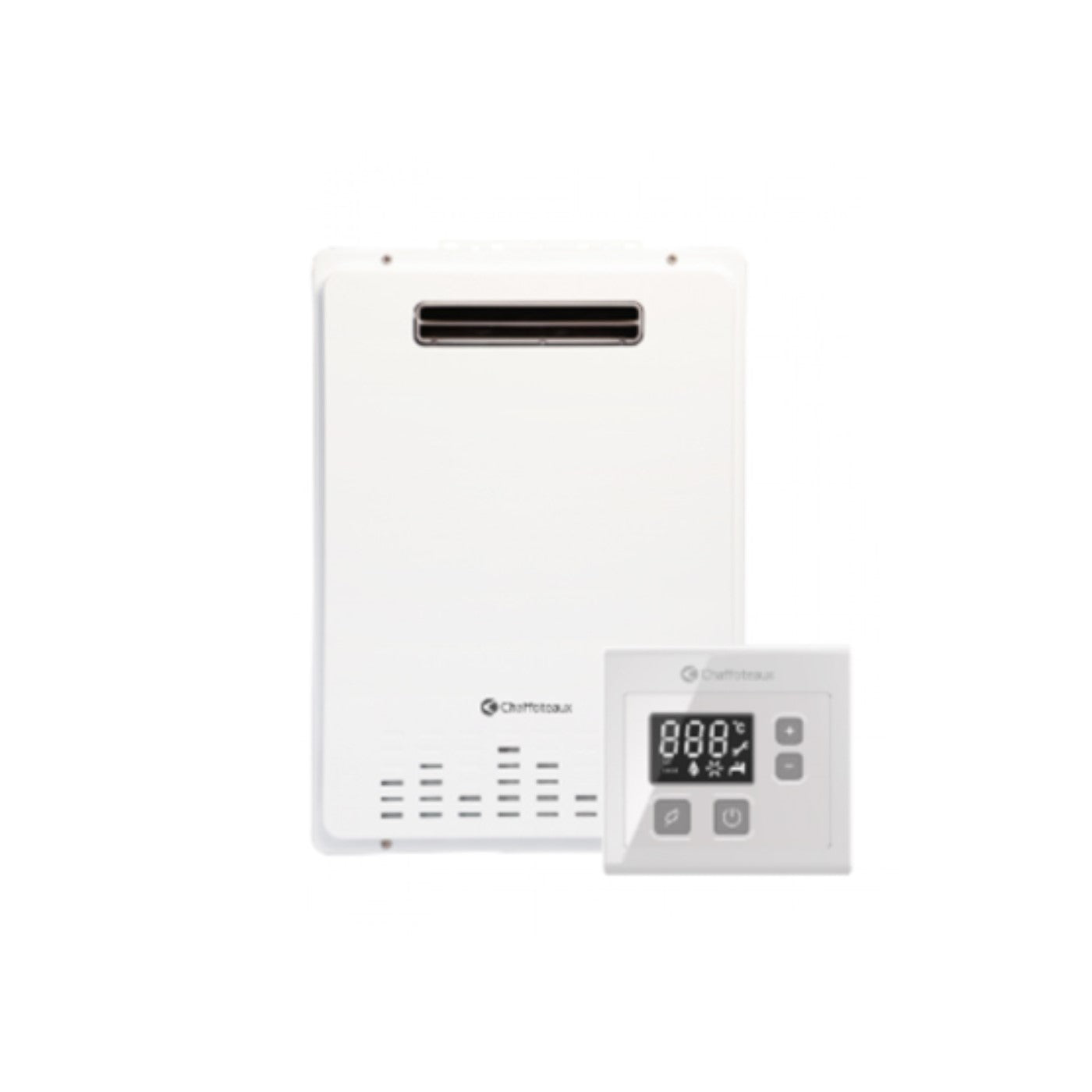

Chaffoteaux Avenir Plus LNX Outdoor Gas Water Heater 11 liters code 3632466 low NOx LPG

Chaffoteaux Avenir Plus LNX Outdoor Gas Water Heater 11 liters code 3632466 low NOx

• Energy class A
• Withdrawal profile M
• Product code 3632466
• Nominal heat input kW 22
• Minimum heat input 7.8 kW
• Nominal useful thermal power 19.2 kW
• Nominal flow rate (ΔT 25°C) 11.0 l/min
• Maximum hot water temperature 65 °C
• Minimum ambient temperature for use -20 °C
• Maximum power absorbed 33 W
• Power supply 230-50 V/Hz
• LPG
• Dimensions HxWxD mm 544x374x174

AVENIR PLUS LNX OUTDOOR

One of the most compact thermostatic gas water heaters on the market for outdoor use. High efficiency thanks to the multiple section modulating burner. Maximum safety thanks to installation outside the home, and easier and quicker thanks to the fact that it does not require smoke exhaust. Low NOx emissions: compliant with ERP regulation of 09.26.2018

COMFORT

• Modulating: allows great energy savings and offers greater comfort with a temperature
  stable in the presence of simultaneous requests for hot water.
• Thermostatic: High precision NTC probes to measure the incoming temperature of cold water and
  hot water outlet.
• New remote control with standard cable to view and change the temperature.

SAFETY

• Maximum safety thanks to installation outside the home.
• Quick and easy installation thanks to the fact that it does not require a smoke outlet.
• Antifreeze kit as standard and maximum electrical protection IPX5D.
• Safety valve as standard (safety group optional).

ENERGY SAVING AND RESPECT FOR THE ENVIRONMENT

• ECO function: reduces maximum power when not necessary to optimize consumption and emissions.
• Up to 25% less consumption thanks to electronic ignition and flame ionization.
• Solar kit with thermostatic valve allows you to integrate the system with solar systems.
