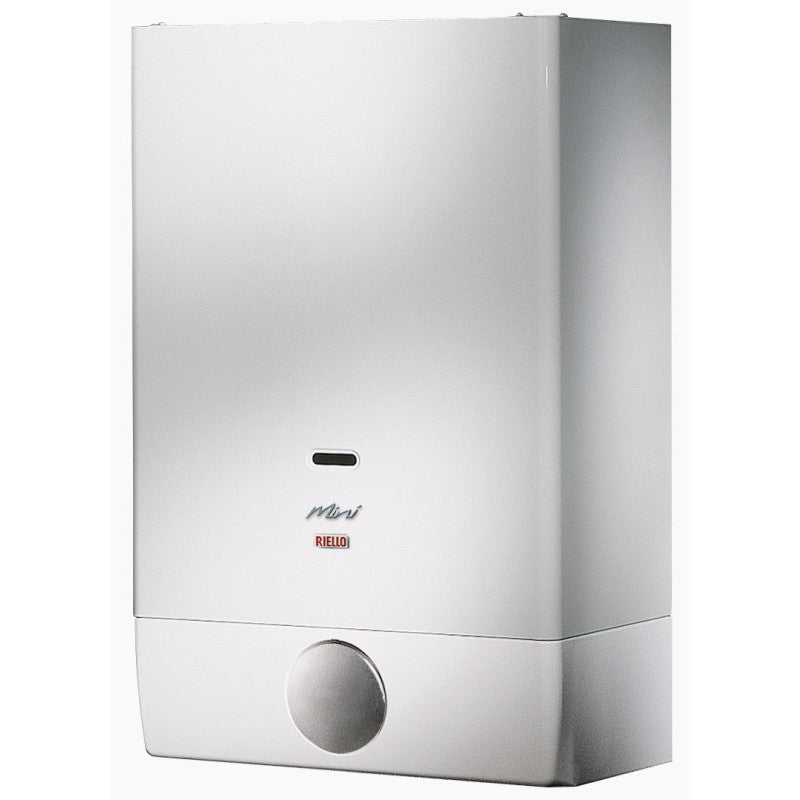

RIELLO MINI 11 LPG GAS WATER HEATER COMPLETE WITH SMOKE EXHAUST KIT

RIELLO MINI 11 LPG GAS WATER HEATER COMPLETE WITH SMOKE EXHAUST KIT

• product code: 20108606

Energy label specifications according to the European ErP directive

• Sanitary energy efficiency: Class A
• Load profile: L profile

Heating/DHW operation characteristics:

• Useful power - hearth: 17.6 - 20.5 kW
• Useful efficiency at max-min power: 91.8-84.0%
• Forced draft sealed chamber
• Min/normal/max pressure bar 0.15/2/10
• Domestic hot water production: 11 l/min
• Min withdrawal: l/min 2.5
• Electrical supply V/Hz 230/50
• IP X4D electrical protection rating
• Dimensions (hxwxd) 640 x 400 x 246 mm; 18.5 kg
• Power supply: LPG

RIELLO MINI

• Easy-to-use controls, fault signaling via LED
• Gas consumption is automatically adjusted to the quantity of hot water required, allowing significant energy savings
• Upper cover to be fixed to the casing to protect the appliance from the entry of liquids (outdoor version)
• The antifreeze heaters of the outdoor version guarantee operation with external temperatures down to -15°C
• Mounting template and power cable supplied
