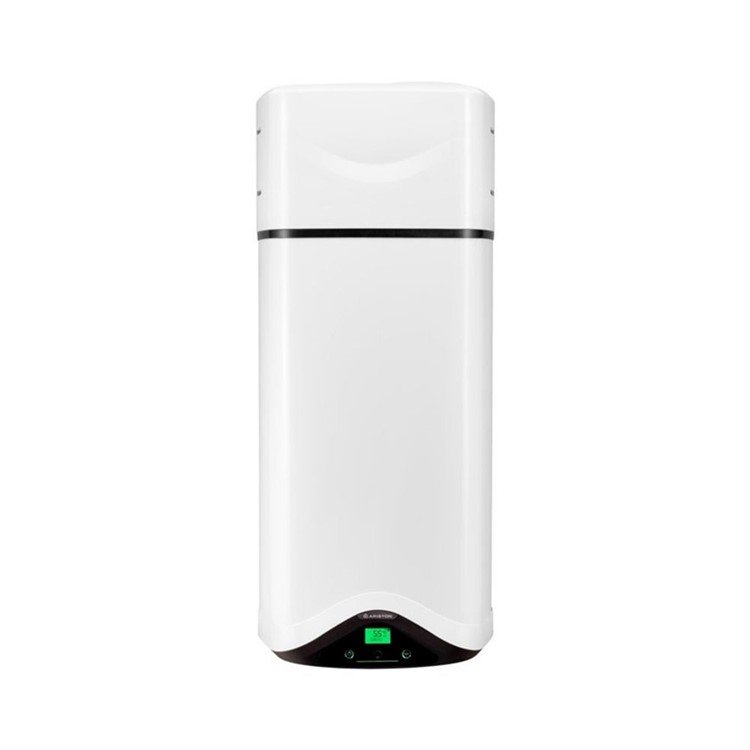

ARISTON NUOS EVO 110 A+ WH HEAT PUMP WATER HEATER WITH 110 LITERS STORAGE - NEW MODEL

Technical features

• Product code: 3629057

• Energy efficiency: Class A+
• Load profile: M profile

Heating/DHW operation characteristics:

• Monobloc wall-mounted water heater
• COP air 7°C (EN 16147): 2.45
• Heating time @ A7°C (EN 16147) h:min: 8:04
• Min/max air temperature °C: -5/42
• Sound power level db(A): 50
• Average electrical power absorbed W: 250
• Maximum quantity of hot water at 40°C: 128 litres
• Nominal storage capacity litres: 110
• Maximum working pressure bar: 8
• Voltage/Maximum absorbed power V/W: 220-240/1550
• Resistance power W: 1200
• Standard air flow m3 /h: 100-200
• Minimum volume of the installation room m3: 20
• Curb mass kg: 55
• Electrical protection IP24
• Insulation thickness mm: 41
• Water connections diameter " 1/2 M
• Minimum temperature of the storage room °C: 1
• Overall dimensions: see the attached image

Nuos Evo 80-110 A+ WH

Compact and easy to install, the Nuos Evo A+ heat pump water heater offers great performance and reliability. Ariston's innovation and research have created a water heater capable of using a natural and inexhaustible source of energy: the heat of the air, thus guaranteeing energy efficiency and savings. Nuos Evo is the optimal solution for those with limited space and allows you to save at least 70% energy compared to a traditional electric boiler. The product is so efficient that it reaches energy class A+, the highest energy class that can be declared starting from September 2017.

• Heat pump working range with air temperatures from -5 to 42°C /
• Ecological gas R134A allows water temperatures of up to 62°C to be reached in a heat pump
• Condenser wrapped around the boiler (not immersed in water)
• Low noise (silent function) / Titanium enamelled steel boiler
• Integrative electrical resistance
• Active anode (protech) + magnesium anode
• LCD display
• Functions: green, auto, boost, boost 2, hourly programming of voyage and anti-legionella sampling
• Product for internal installation

Green function Function that maximizes energy savings. The water heater works exclusively as a heat pump, heating domestic water up to 62 °C.

Boost function Function that reduces the water heater heating times to a minimum, increasing sanitary comfort. The machine works simultaneously as a heat pump and electric resistance, speeding up the heating of the water. Once the maximum operating temperature of the heat pump is exceeded, the electric resistance continues to heat up to the water set-point temperature.

Auto Mode Function that allows the best compromise of comfort and savings. The machine optimizes the heat pump and resistance activation logic.

Anti-legionella function This function provides automatic disinfection cycles. On a monthly basis the machine starts a check and, if necessary, heats the domestic water up to 65°C, maintaining it at this temperature until any bacterial proliferation in the tank is destroyed.

Hourly programming of withdrawals This is the function that allows you to program times and water temperatures to your liking. The water heater will reach the chosen temperature at the preferred time (up to two times can be programmed): the process will give priority to heating via the heat pump and, only if necessary, will take place via the electric resistors

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
