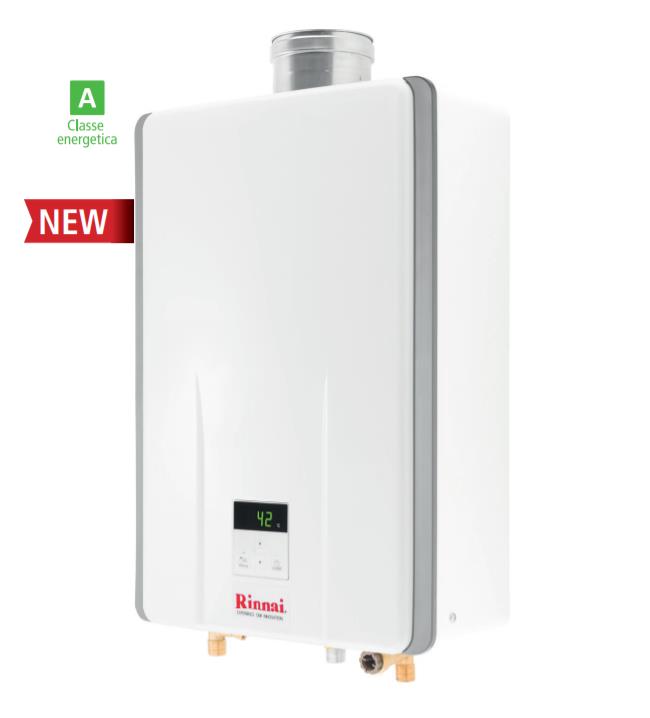

Rinnai Gas Water Heater Model INFINITY 14i Code REU-A1420FFU-LPG LPG Complete with Fume Exhaust Kit

Technical features

• Code: REU-A1420FFU-LPG
• Installation type: Internal
• Device type: C
• Energy class: A
• Load profile: L

Performance

• Thermal input (kW) min 4.1 / Max 27.2
• Hydraulic flow (l/min) min 2 l/min MAX 14 l/min (20 l/min ∆T=15°C)
• Maximum settable temperature (°C) 65
• Minimum activation pressure (bar) 0.1
• Nominal operating pressure (bar) min 1 Max 8.30
• Max number of additional commands that can be installed 3
• Electrical consumption (W) Normal 55 W Stand-by 1.5 W Antifreeze 116 W
• Connection predisposition with recirculation yes
• Predisposition for solar integration yes

Fittings and flue

• Flue system Ø 60/100 coax, max exhaust distance 5m+3 bends, splittable Ø 80/80. Male output. See the 'accessories' section
• Water Inlet: ½”
• Water outlet: ½”
• Gas ½”
• Antifreeze as standard, down to -15°C
• LPG powered

• Dimensions (WxDxH): 373 x 173 x 541 mm
• Weight: 14.5 kg

INFINITY

The Infinity 17i 17 litres/min water heater is a domestic instantaneous water heater to be installed inside the home. It produces hot water only when there is a real request (only when the tap is opened). Unlike a kettle, it does not need to keep large quantities of water in stock at high temperatures. This allows for great savings in terms of energy costs and water consumption . There is no need to mix the water, it comes out immediately at the desired temperature.

NEW The installer can select the "high altitude" setting to guarantee maximum performance of the water heater even when installed high in the mountains, in rarefied air conditions

NEW When the water heater and the utilities are distant and heat losses are generated, the installer can correct the temperature to the degree of use (from +1°C to +3°C) by perfecting the temperature at the tap

NEW a progressive alert signals any limescale deposits. This allows cleaning to be carried out before the level is high enough to cause a malfunction.

Instantaneous gas-fired domestic hot water producer for internal installation. Equipped with a control panel on the dashboard for managing temperature, degree and self-diagnosis. Anti-corrosion enamelled galvanized steel casing.

Like all Rinnai water heaters, the new Infinity controls the temperature to the degree and optimize comfort in the name of energy saving

Temperature refinement to the degree at the point of use

When the water heater is far from the users and the pipes generate heat losses, it is possible to correct the temperature at the tap from +1°C to +3°C

Are you a home user?

Register your new water heater on rinnai.it in the appropriate section to extend the warranty of your water heater to 4 years for free*

The warranty extension (valid only on spare parts) can be requested on domestic water heaters. Consult the technical manual to find out the details of the initiative.

IN OUR HOME WE ARE FREE TO BE OURSELVES

Rinnai responds to different hot water needs. A product available in different sizes 14 or 17 litres/minute. A studio flat, an apartment, one or more people living together. Always, an appliance that takes up very little space and offers infinite hot water, leaving room for what matters most

Characteristics

• Unlimited hot water without temperature changes
• Electronic ignition without pilot flame
• Temperature control to the degree via the standard control
• Flow rate regulator: constant temperature as the flow rate varies
• Integrated automatic reset as standard
• Progressive LC code that detects any limescale deposits
• Free warranty extension on rinnai.it

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
