Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

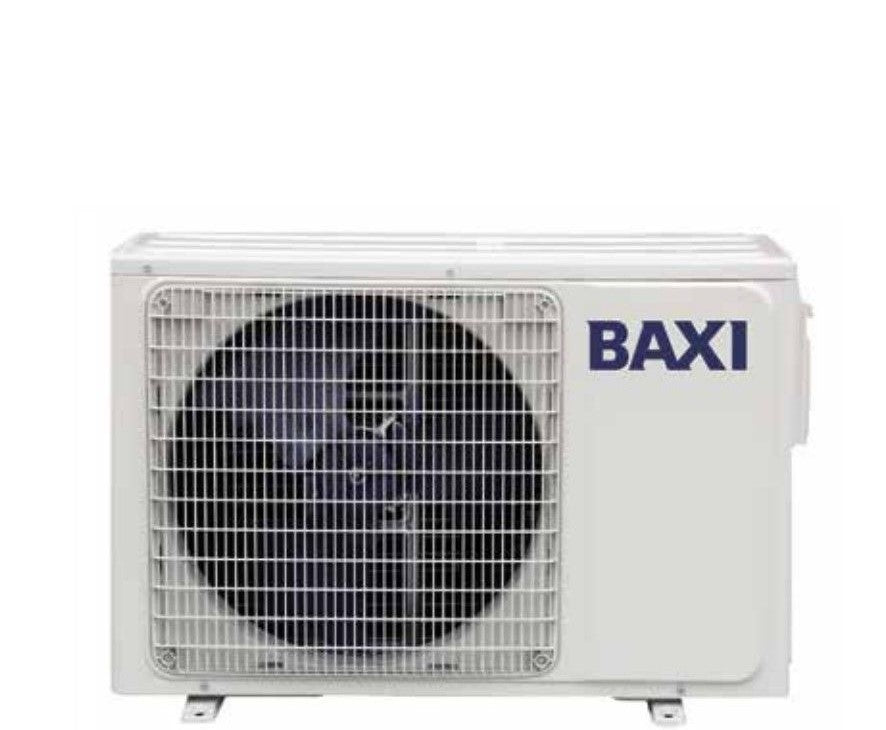

Baxi Outdoor Unit Multisplit Motor LSGT100-4M Split Panels R-32 A++/A+
€1.950,90
Prijs met korting
€1.950,90
Normale prijs
Technical features
Model:
- Indoor Unit catalog code: LSGT100-4M
- Max indoor units: up to 4 indoor units
Energy efficiency:
- SEER : 6.1
- SCOP : 4.1
- Cooling Energy Efficiency Class: A++
- Heating Energy Efficiency Class: A+
Performance:
- Cooling Capacity: 10.5 kW
- Heating Capacity: 11.0 kW
- Std Cooling absorption: 3.75 kW
- Std Heating absorption: 2.93 kW
- Sound power level: 68 dB(A)
Characteristics:
- Power (V/Hz/Φ): 220~240/50/1
- Refrigerant gas: R-32
Installation Data:
- Liquid tube diameter: 6.35 mm (1/4") x4
- Gas pipe diameter: 9.52 mm (3/8") x4
- Maximum length of pipes: 80 m
- Maximum height difference Internal Unit / External Unit: 15 m
Dimensions:
- External Unit Dimensions (WxHxD): 985x808x395 mm
- External Unit Weight: 74 Kg
Attention, only the external unit will be supplied
Baxi Multisplit Outdoor Unit
The Multi Split R32 outdoor units from the Light Commercial range are exactly the same as the Multi Split R32 Residential range; for this reason it is possible to combine these Multi Split external units with the different types of internal units: Light Commercial (cassette, floor/ceiling and ducted) and Residential (wall-mounted).
Refrigeration circuit length
The maximum length of the refrigerant circuit pipes can reach a maximum of 65 meters (in Mono Split models) or 80 meters (in Multi Split models), one way. Furthermore, the maximum height difference between the outdoor unit and the indoor unit(s) is 30 meters (in Mono Split models) and 15 meters (in Multi Split models). This ensures a simple, flexible and economical installation.
