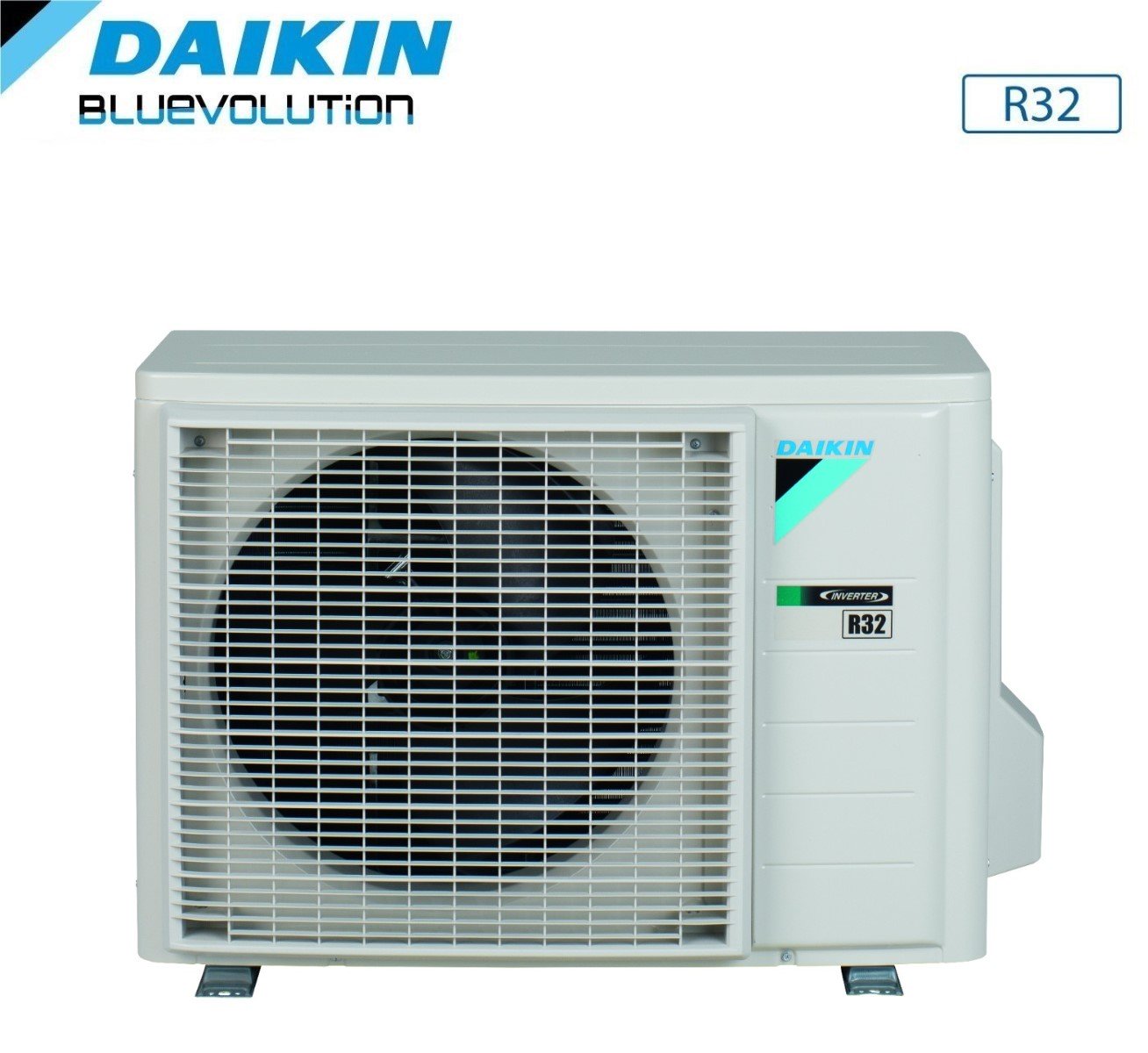

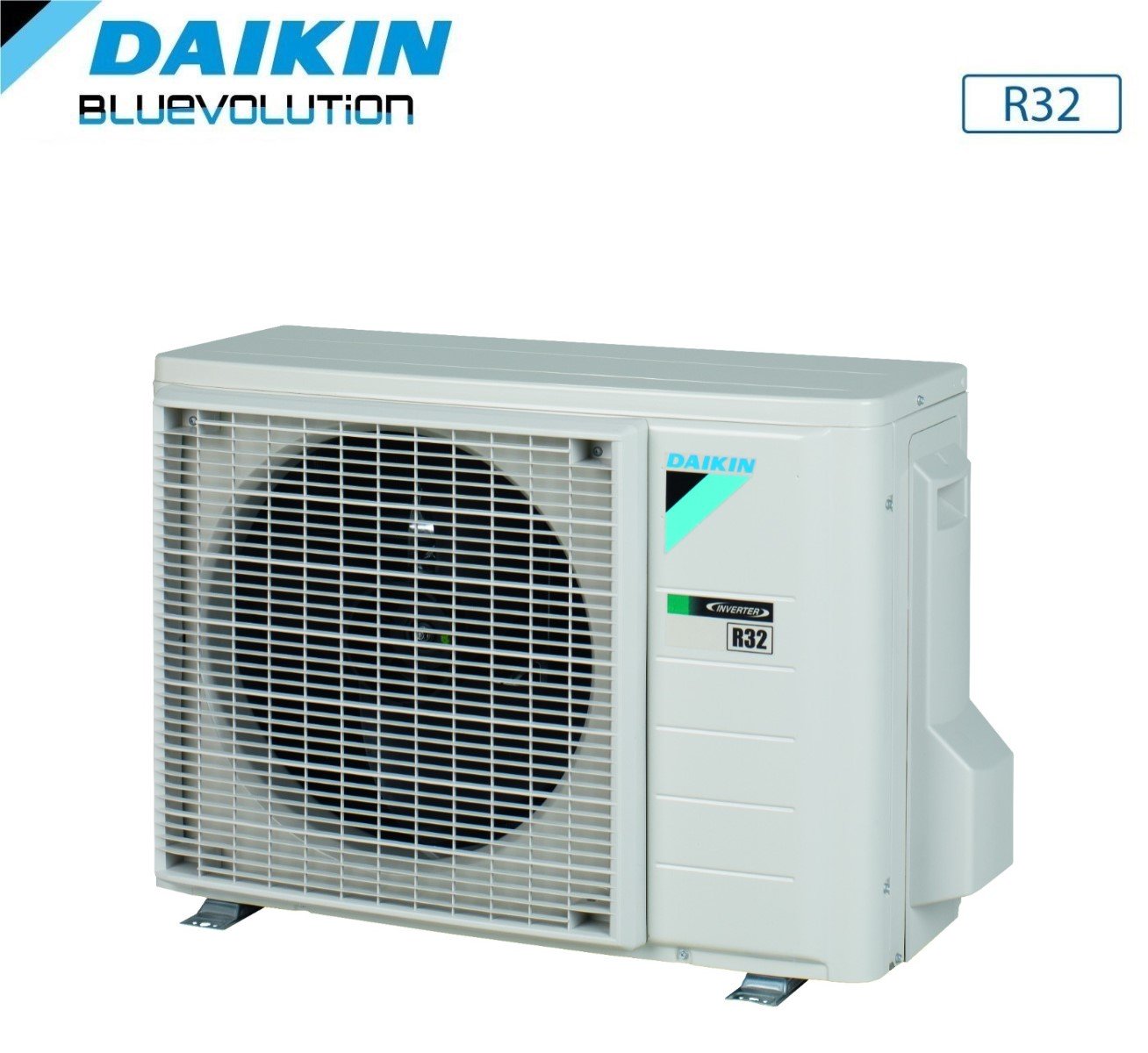

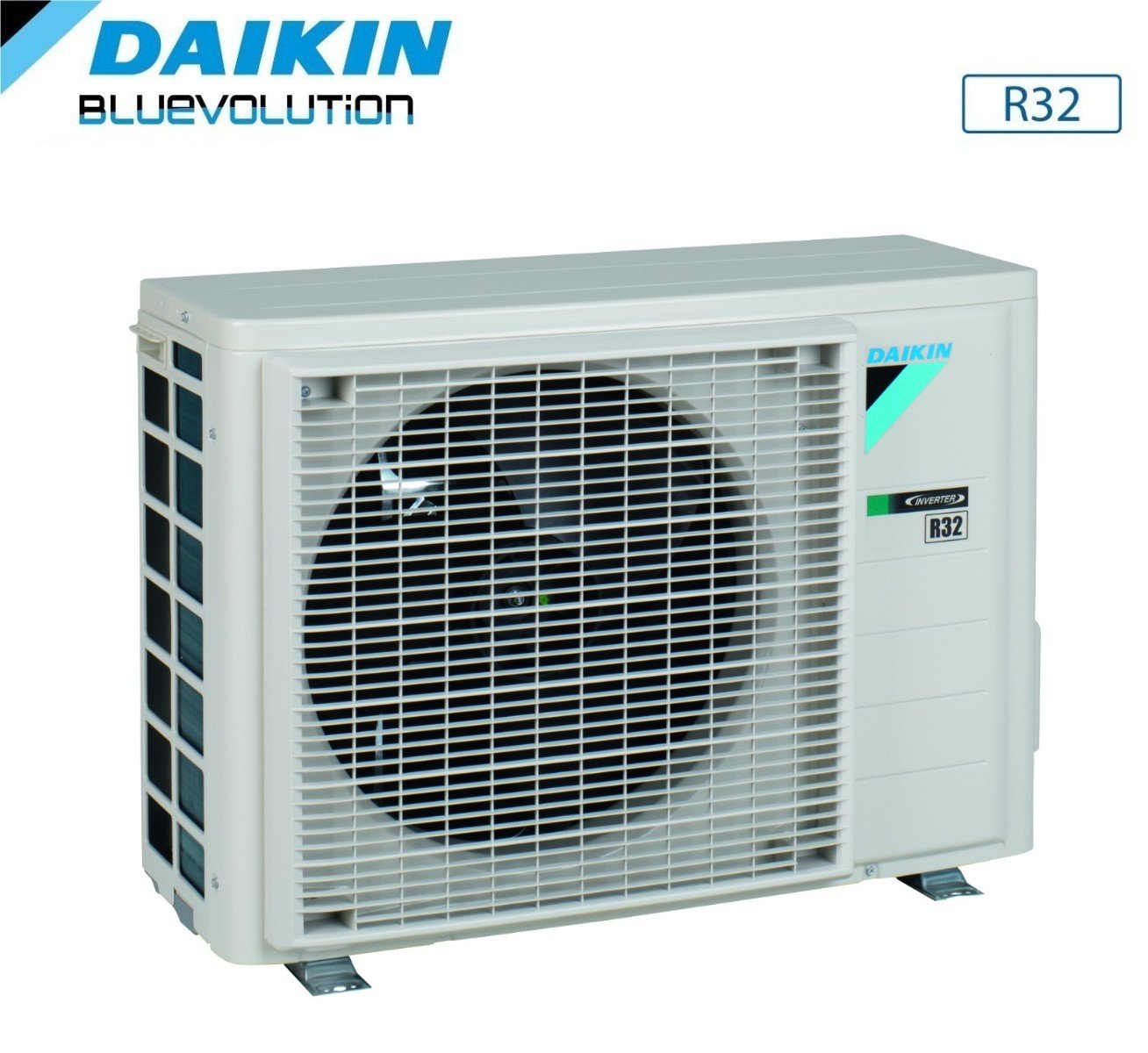

Daikin Bluevolution Outdoor Unit Monosplit Engine 12000 Btu RXA35A R-32

Technical features

• Outdoor unit catalog code: RXA35A
• Power: 12000 Btu

Energy efficiency:

• SEER: 8.73
• SCOP: 5.15
• Energy Efficiency Class in Cooling: A+++
• Heating Energy Efficiency Class: A+++
• Annual Energy Consumption in Cooling: 136 kWh
• Annual Energy Consumption in Heating: 679 kWh

Performance:

• Cooling capacity: 3.40 kW
• Heating capacity: 4.0 kW
• Power absorbed Nominal heating: 0.99 kW
• Minimum sound pressure Cooling/Heating: 19 dB(A)
• Internal Unit sound power: 60 dB(A)
• External Unit sound power: 61 dB(A)

Characteristics:

• Power (V,Hz, Ø): 220~240/50/1
• Refrigerant gas: R-32
• Liquid Pipe Diameter: 6.35 mm (1/4")
• Gas Pipe Diameter: 9.52 mm (3/8")
• Operation range:
  - Cooling: -10 ~ 46° C
  - Heating: -15 ~ 18° C

Dimensions and weight:

• External Unit Dimensions (HxWxD): 550x828x329 mm
• External Unit Weight: 32 Kg

Kizuna 2+2 guarantee

The Daikin Italia warranty can be activated within 1 month from the date of purchase at https://standbyme.daikin.it/it/

Daikin RXA-A Outdoor Unit

• Choosing an R-32 product reduces the environmental impact by 68% compared to R-410A systems and leads to a direct reduction in energy consumption thanks to high energy efficiency

• The outdoor units are equipped with a swing-type compressor, known for its low noise and high energy efficiency characteristics

• Outdoor units for monosplit applications
