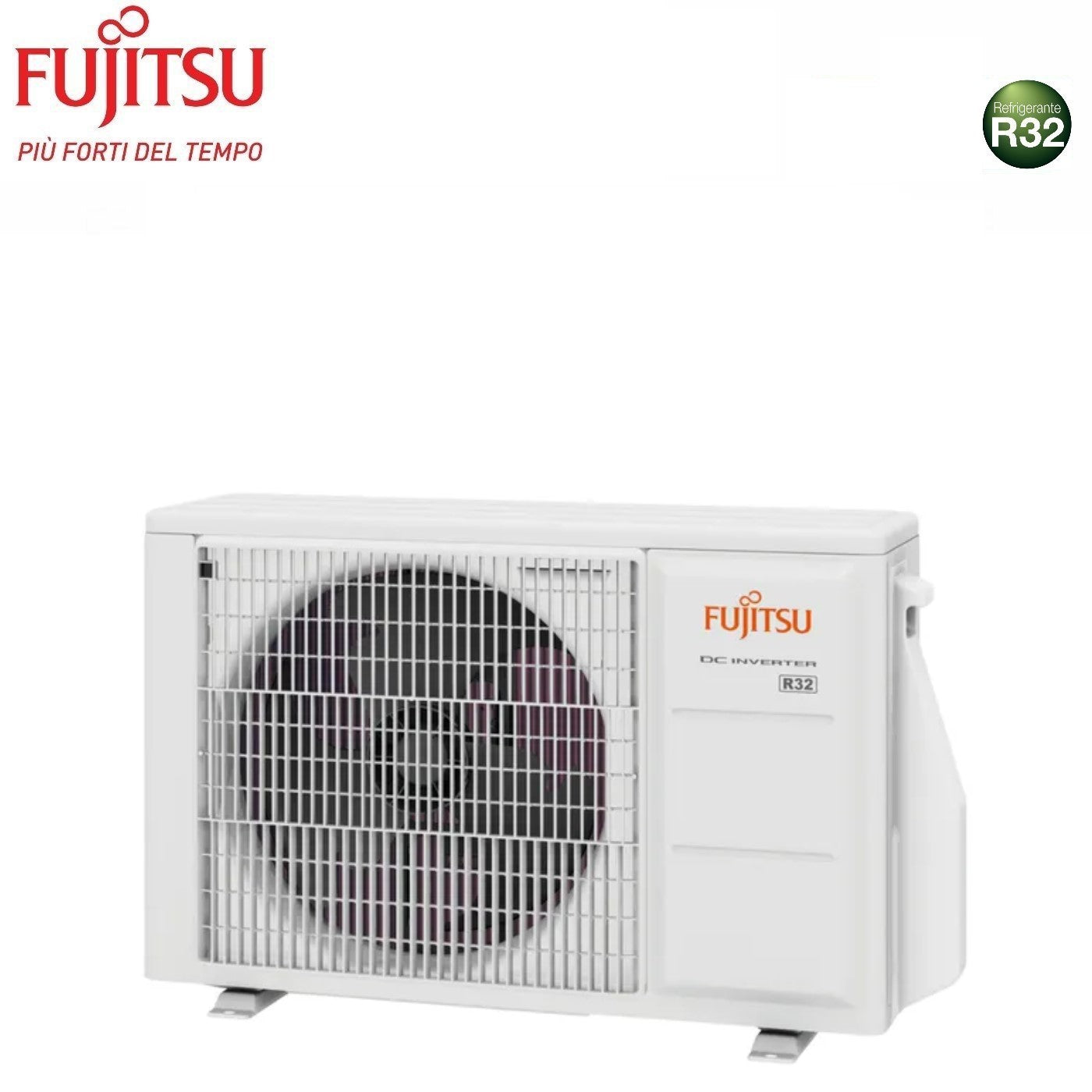

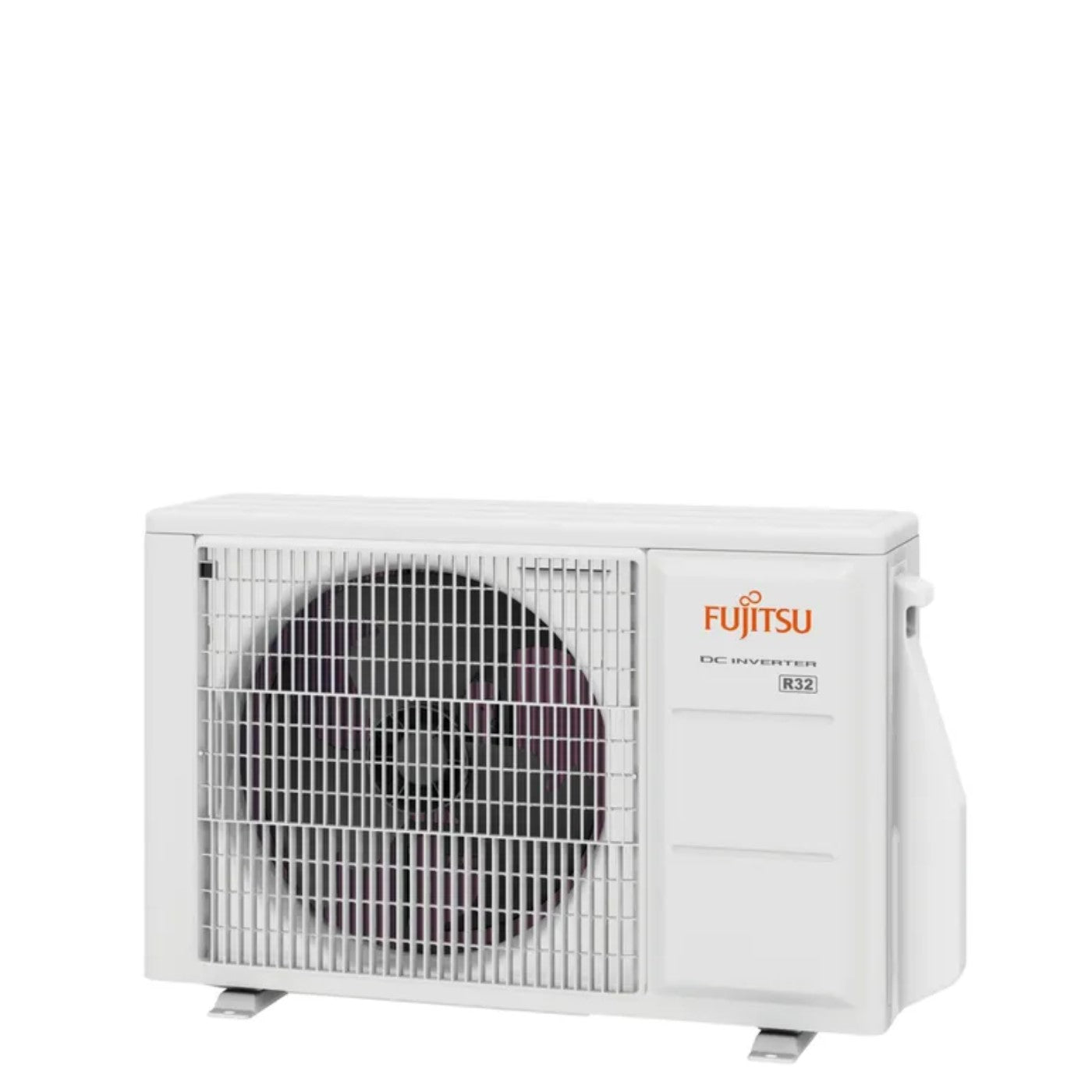

Fujitsu Outdoor Unit Multisplit Motor AOYG14KBTA2 Dual Split R-32 Class A+++/A++
Fujitsu Outdoor Unit Multisplit Motor AOYG14KBTA2 Dual Split R-32 Class A+++/A++
ATTENTION ! ONLY THE OUTDOOR UNIT WILL BE PROVIDED
Technical features
- Outdoor unit catalog code: AOYG14KBTA2
- Outdoor unit code: 3NGF7088
- Number of connectable internal units: Up to 2 internal units
Energy efficiency
- SEER : 8.7
- SCOP: 4.7
- Cooling energy efficiency class: A+++
- Heating energy efficiency class: A++
Performance
- Cooling capacity: 4.0 kW
- Heating capacity: 4.4 kW
- Sound power level: 60~62 dB(A)
- Sound pressure level: 47~49 dB(A)
Electrical data
- Power (V/Hz/Φ): 230/50/1
- Refrigerant gas: R-32
- Guaranteed temperature range:
- - Cooling: -10° ~ 46°C
- - Heating: -15° ~ 24°C
Installation data
- Liquid tube diameter: 6.35 mm (1/4") x2
- Gas pipe diameter: 9.52 mm (3/8") x2
- Maximum pipe length: 30 m
- Maximum height difference between internal unit and external unit: 15 m
Dimensions and weight
- External unit dimensions (HxWxD): 542×799×290 mm
- External unit weight: 33.0 kg
High energy saving
High-tech components: DC technology is used for the compressor, indoor/outdoor fan motor and inverter control. High efficiency is guaranteed by a high-efficiency heat exchanger, a large fan and a new refrigerant.
New R32 refrigerant
Its low global warming potential (GWP) of one third compared to the most common refrigerant used for air conditioning represents an advantage for protecting the environment
Product guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
