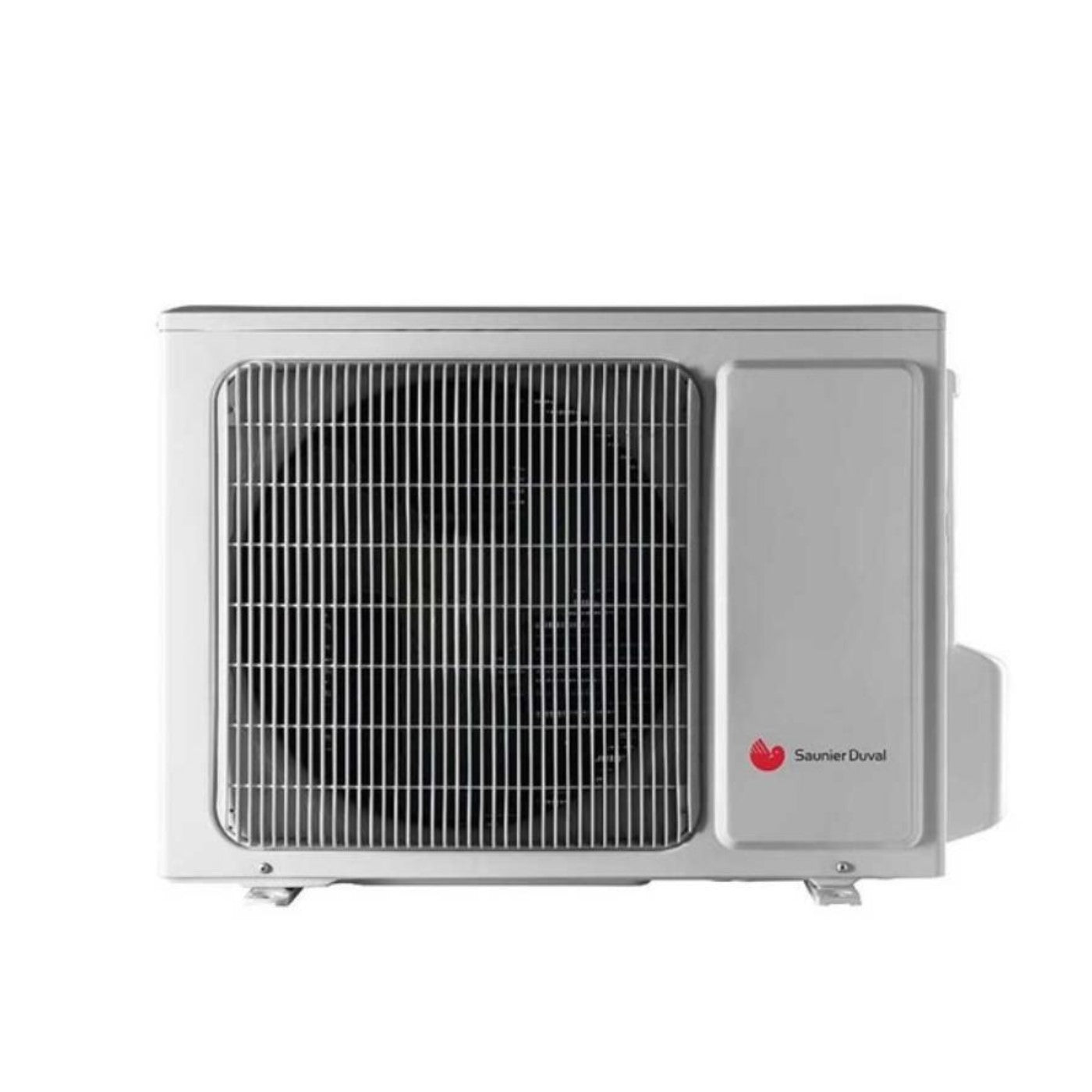

Outdoor Unit Hermann Saunier Duval Multisplit Motor SDH 20-070 Trial Split R-32 - News
Outdoor Unit Hermann Saunier Duval Multisplit Motor SDH 20-070 Trial Split R-32 - News
ATTENTION: ONLY THE OUTDOOR UNIT WILL BE SUPPLIED
Technical features
External Unit
- Model: SDH20-070MC3NO
- Electrical power supply V/Ph/Hz: 230/1/50
- Refrigerant gas: R-32
- Sound Power: 68 db(A)
- Sound Pressure: 58 db(A)
- Maximum length of the pipe between the internal and external units: 20 m
- Maximum Total Length of the Hose: 70 m
- Maximum height difference between Internal and External Unit: 20 m
- Tube diameter: 1/4 - 3/8
Performance
Cooling down
- Cooling Power kW: 2.29 / 8.5
- Cooling Power Btu/h: 7800 / 29000
- Maximum Current: 11.3 A
Heating
- Heating power kW: 3.66 / 8.79
- Heating power Btu/h: 12500 / 30000
- Maximum Current: 11.3 A
It is the new range of air conditioners that use the R32 refrigerant gas which offers many advantages such as greater energy efficiency , a lower impact on the climate (Global Warming Potential - GWP = 675) and a lower quantity of charge required compared to air conditioners that use the R410 A gas.
Thanks to the use of the new R32 gas, the new Hermann Saunier Duval air conditioners are already in line with achieving the objectives established by the new regulation on fluorinated gases issued by the EU in 2015, which prohibits the use of refrigerants with a GWP greater than 750 in single-split air conditioners containing a refrigerant charge below 3 kg.
It is available in Dual, Trial and Quadri versions with cooling powers from 4.1 kW to 8 kW. Thanks to the new R32 refrigerant gas, 3D inverter technology and the electronic expansion valve it is possible to achieve an energy class in cooling up to A++ (SEER up to 6.3) and in heating up to A+ (SCOP equal to 4).
It offers various functions to improve the comfort of your home: I Feel function to offer the desired temperature where the remote control is located, Turbo function to reach the desired temperature in the shortest possible time, adjustment of the direction of the air flow vertically and horizontally, Quiet function to minimize noise.
It is also characterized by the use of an active ionizer device that purifies the air in the room by creating negative ions that neutralize positively charged particles, thus keeping the environment fresh, free of odors, bacteria and mold spores. The X-Fan function also removes humidity from the internal exchanger, keeping it dry and preventing the formation of rust and bacteria.
All the functions previously described are available only for wall-mounted units. The functions that can be set on the remote control supplied with the cassette and console units are equivalent to those of the VivAir Uni Comfort series.
All supplied remote controls are easy to use and feature a large display to indicate the current operating status.
Multi-split air conditioning with ecological R32 gas
Active Ionizer The active ionizer device inside the internal unit allows you to create negative ions that neutralize the positively charged particles present in the room, thus keeping the environment fresh and healthy, free of odors, bacteria and mold spores.
X-Fan function The X-Fan function removes humidity from the internal exchanger, keeping it dry and preventing the formation of rust and bacteria, preserving the durability of the product and contributing to a healthier environment.
Quiet function The Quiet function allows you to adjust the fan speed by minimizing the noise level of the internal unit without changing the required comfort.
Advantages :
- New R32 refrigerant gas
- Dedicated MultiSplit indoor units: wall, cassette and floor/ceiling
- Energy efficiency class in cooling up to A++
- "Auto Clean X Fan" function to keep the exchanger dry
- Active Ionizer to improve the air quality in the environment
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
