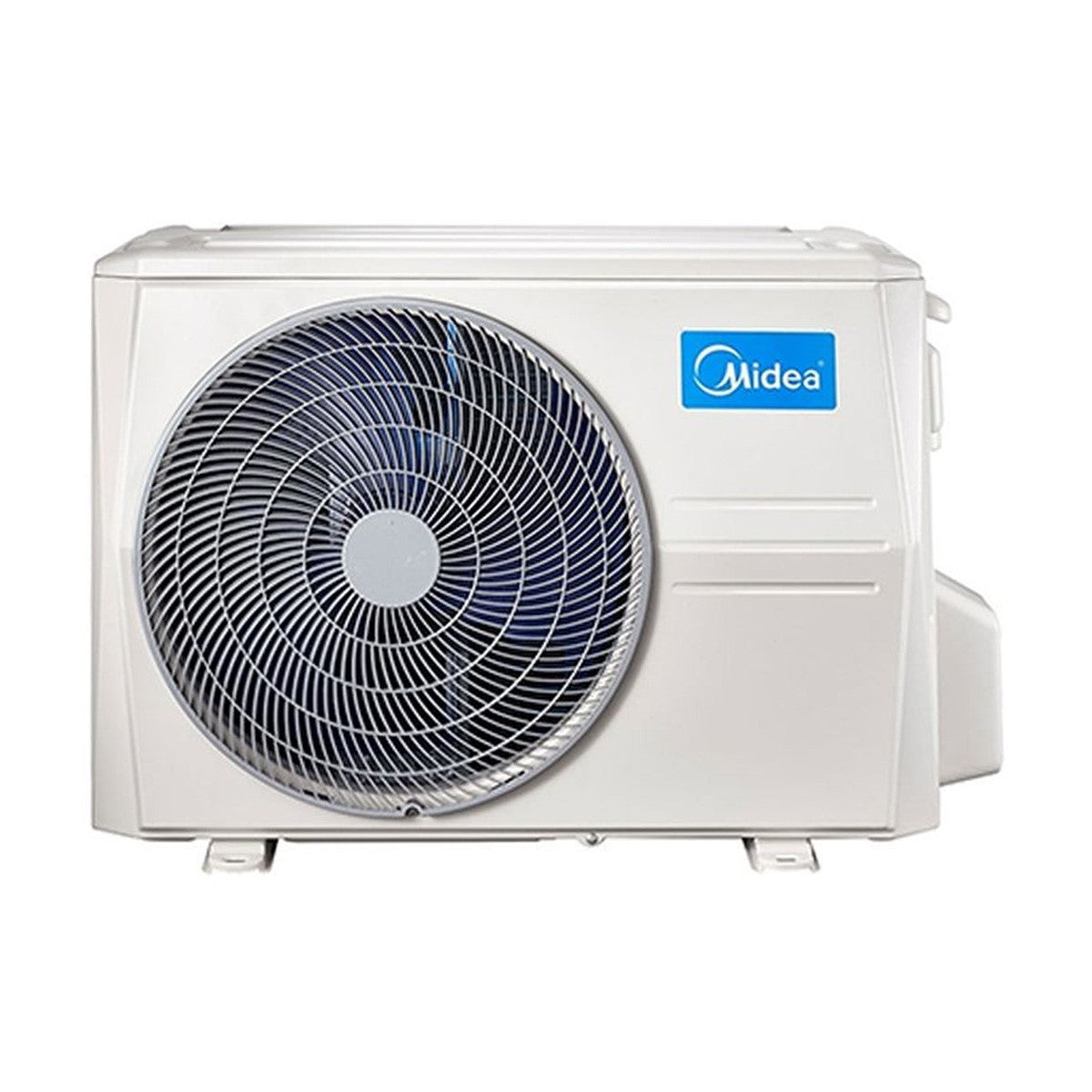

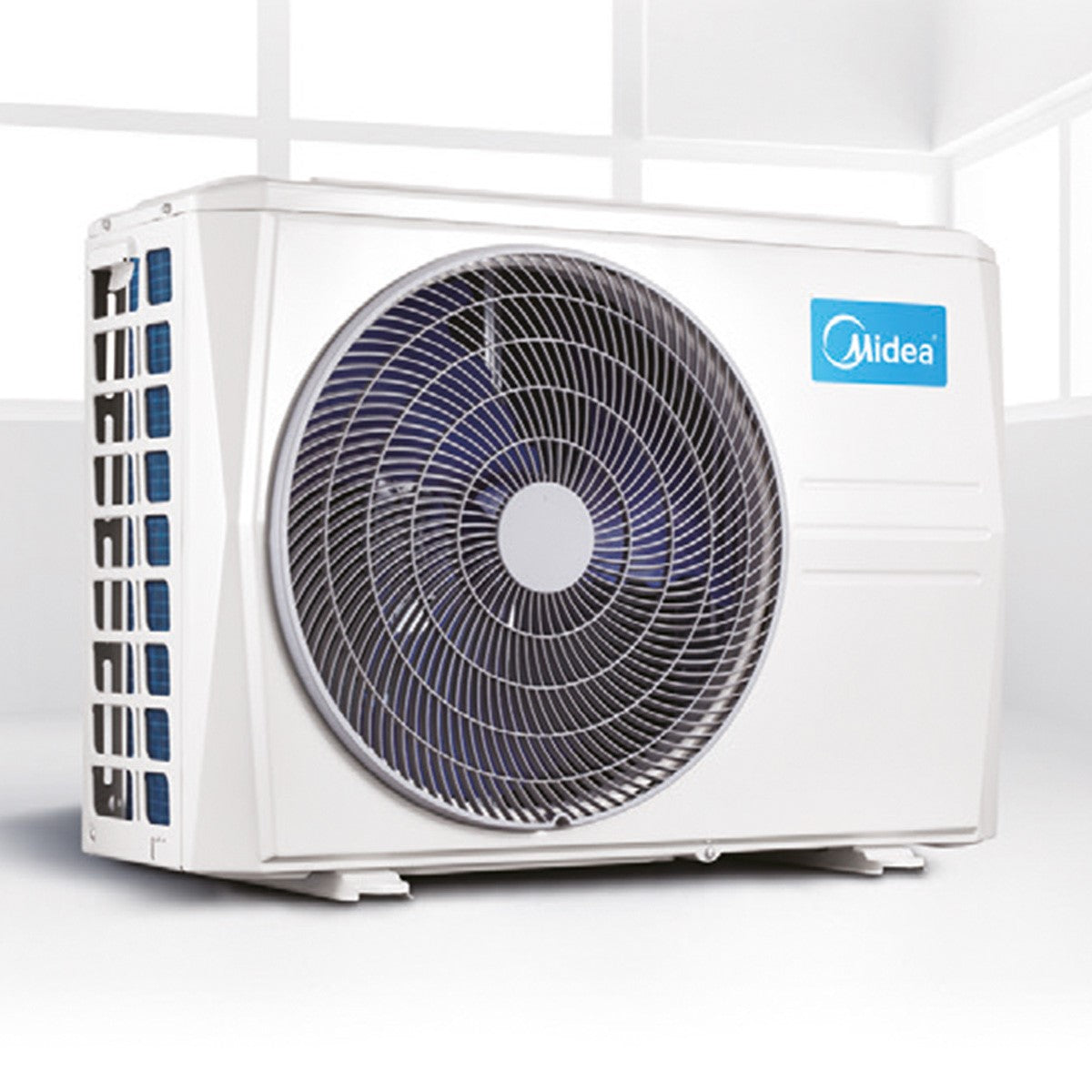

Midea Outdoor Unit Multisplit Motor M4O-36FN8-Q Split Panels R-32
Midea Outdoor Unit Multisplit Motor M4O-36FN8-Q Split Panels R-32
Technical characteristics
- Outdoor Unit Catalog Code: M4O-36FN8
- Connectable Internal Units: 4
Energy efficiency :
- SEER : 6.5
- SCOP : 4.0
- Cooling Energy Class: A++
- Heating Energy Class: A
- Annual Energy Consumption Cooling: 565 kWh/A
- Annual Energy Consumption Heating: 3226 kWh/A
Performances:
- Cooling Capacity: 10.59 kW
- Heating Capacity: 11.4 kW
- Air flow: 4000 m 3 /h
- Sound Power Level: 68 dB(A)
- Sound Pressure Level: 62 dB(A)
Characteristics:
- Refrigerant gas: R32
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm x3 (3/8") - 12.70 x1 (1/2")
Dimensions and weight :
- External Unit Dimensions (WxHxD): 946x810x410 mm
- External Unit Weight: 68.8 Kg
Midea R-32 Multisplit Outdoor Unit
Midea external units are designed with the highest standards, to combine performance and design, thanks to the innovative diamond-cut shape, without sharp edges and without visible screws at the front panel. The air expulsion grille, inspired by Archimedes' screw, contains a newly developed fan, designed to reduce noise to a minimum. Finally, the T-shaped rib on the top panel allows for greater strength and stability.
Characteristics :
- Cooling and Heating
- Free combination
- Condensation control
- Low noise
- Electronically controlled expansion valves
- Diamond Design
- Diagnostic monitor
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
