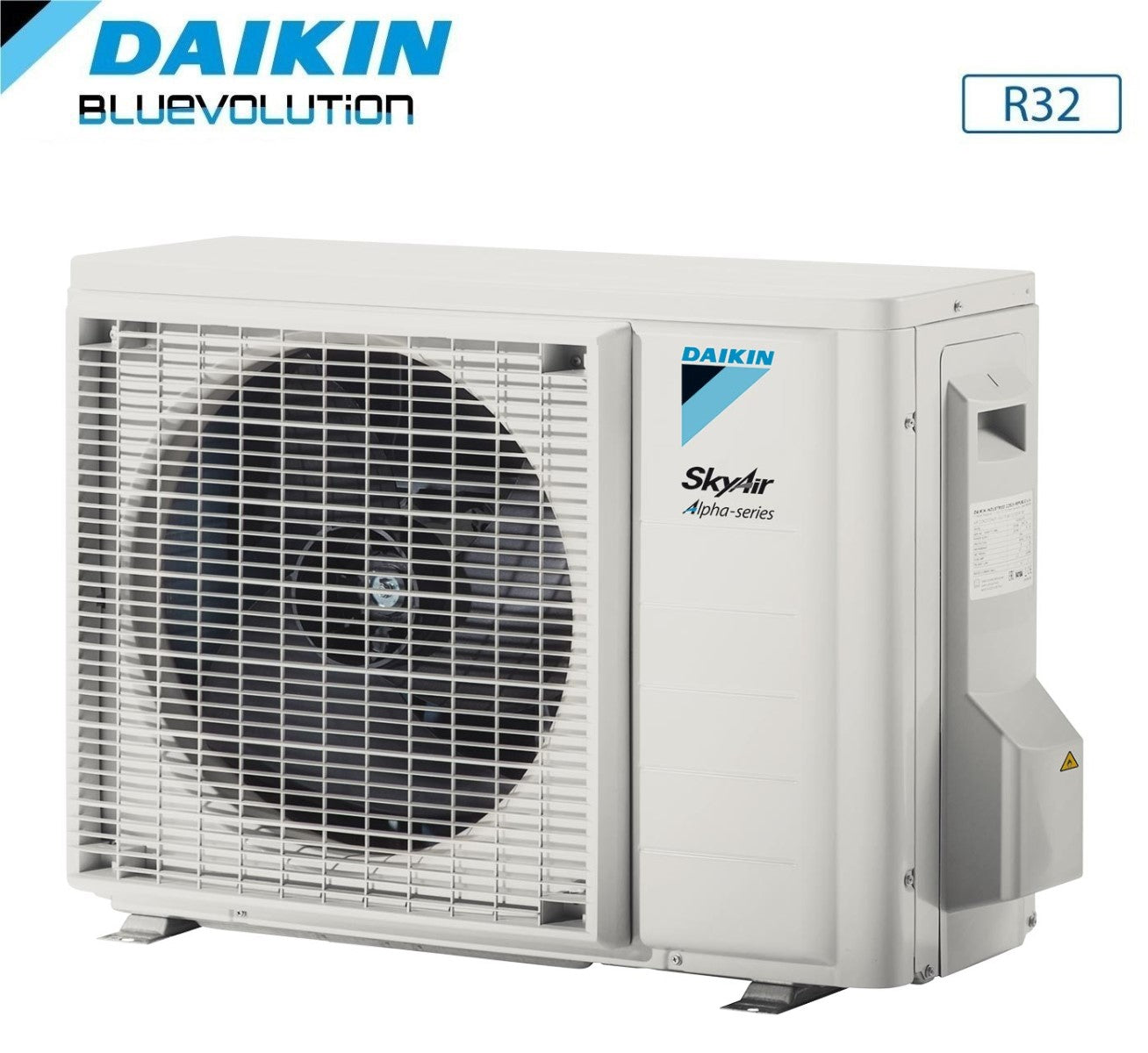

Monosplit Outdoor Unit Daikin SkyAir Alpha-Series Bluevolution Inverter 21000 Btu RZAG60A R-32 Class A++/A+

ATTENTION The product is made to order and will be shipped in 10 working days.

Technical features

Model:

• Outdoor unit catalog code: RZAG60A
• Power: 21000 btu

Energy efficiency

• SEER: 6.90
• SCOP: 4.35
• Energy class in cooling: A++
• Heating energy class: A+
• Annual energy consumption in cooling: 304 kW/a
• Annual energy consumption in heating: 1480 kW/a

Electrical Data

• Power (V/Hz/Φ): 220-240V/50Hz/1
• Refrigerant gas: R32
• Operating Range:
• - Cooling: -20° ~ 52° C
• - Heating: -20° ~ 24° C

• Liquid pipe diameter: 6.35 mm (1/4")
• Gas pipe diameter: 12.70 mm (1/2")
• Maximum pipe length: 50
• Maximum height difference internal unit / external unit: 30 m

Dimensions

• External unit dimensions (HxWxD): 734x940x376 mm
• External unit weight: 52.0 kg

Why choose SkyAir A-series The better the control, the greater the well-being

› Intuitive control via Residential Controller App

› Variable coolant temperature for optimal comfort

› Customization based on the needs of your customers

At the heart of the system

› Equipped with exclusive Daikin technologies, tested and reliable

› Low environmental impact, the GWP value of R32 refrigerant is 68% lower than that of R410A

Flexibility in design

› More compact

> Quieter

› Extended operating range in all climatic conditions

Designed for you

› Faster and easier installation and use

› Quick and reliable replacement

R32 is the future. Join us!

Daikin uses R-32, a refrigerant that leads to lower CO ₂ emissions. This means the units have a lower global warming potential and are generally more efficient. For the benefit of the environment!

› R32 is more eco-friendly than previously used refrigerants

› Daikin is the market leader and has been driving technological innovation for years

› First complete range on the market with R32 for small commercial applications

The new Sky Air A series range is ideal for any small-commercial application

Lighter and more compact units for simple on-site installation. Special range with single fans up to 14 kW

New replacement technology

A faster, easier and more reliable approach when replacing old, obsolete systems

› Reduction of any inconvenience and obtaining a system capable of significantly reducing consumption and energy bills

› Hepta filtration able to guarantee reliable operation without having to clean the pipes

› Effective solution in terms of costs and time, as it is sufficient to replace the internal and external units without modifying the pipes

Advantages

› Pipe length increased up to 85 m

› The widest operating range: Cooling mode from -20°C to 52°C, heating mode up to -20°C

› Full range of indoor units available with R32: Over 45 different options for indoor units

› Faster installation with pre-charged piping up to 40 m: 60% of applications can be installed without additional refrigerant charge

› Tilting front panel: new design for easy access to system components

› New 7-segment display: To view any errors and system settings

› Reliability: guaranteed in all climatic conditions, to reduce requests for on-site assistance

› New refrigerant passages: The bottom of the outdoor unit heat exchanger and drain holes are left completely open, allowing freezing water to drain freely, eliminating the risk of ice build-up

› Refrigerant-cooled electronic boards: Stable and reliable cooling, regardless of external conditions

› Integrated leakage control function: for maximum reliability and minimum on-site checks
