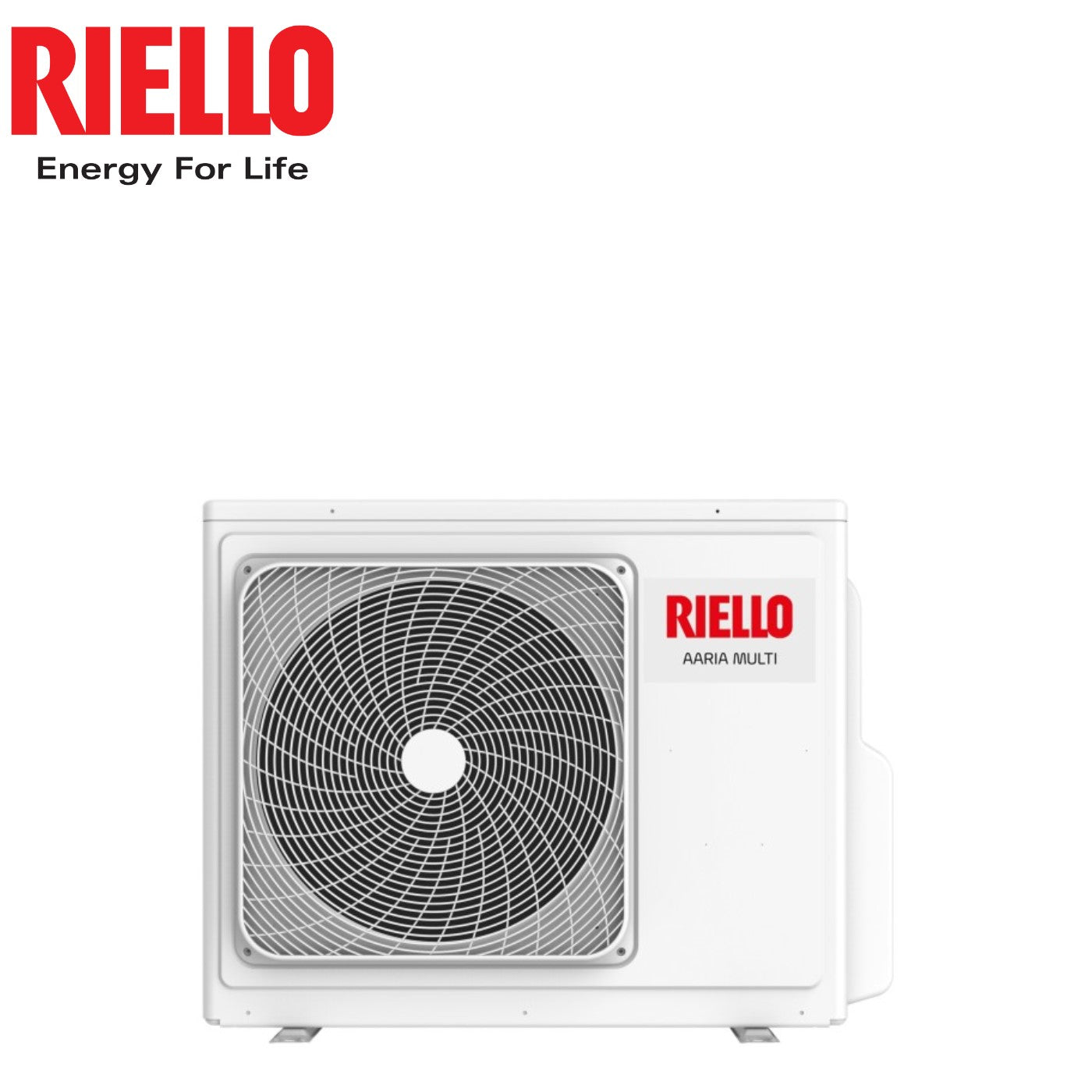

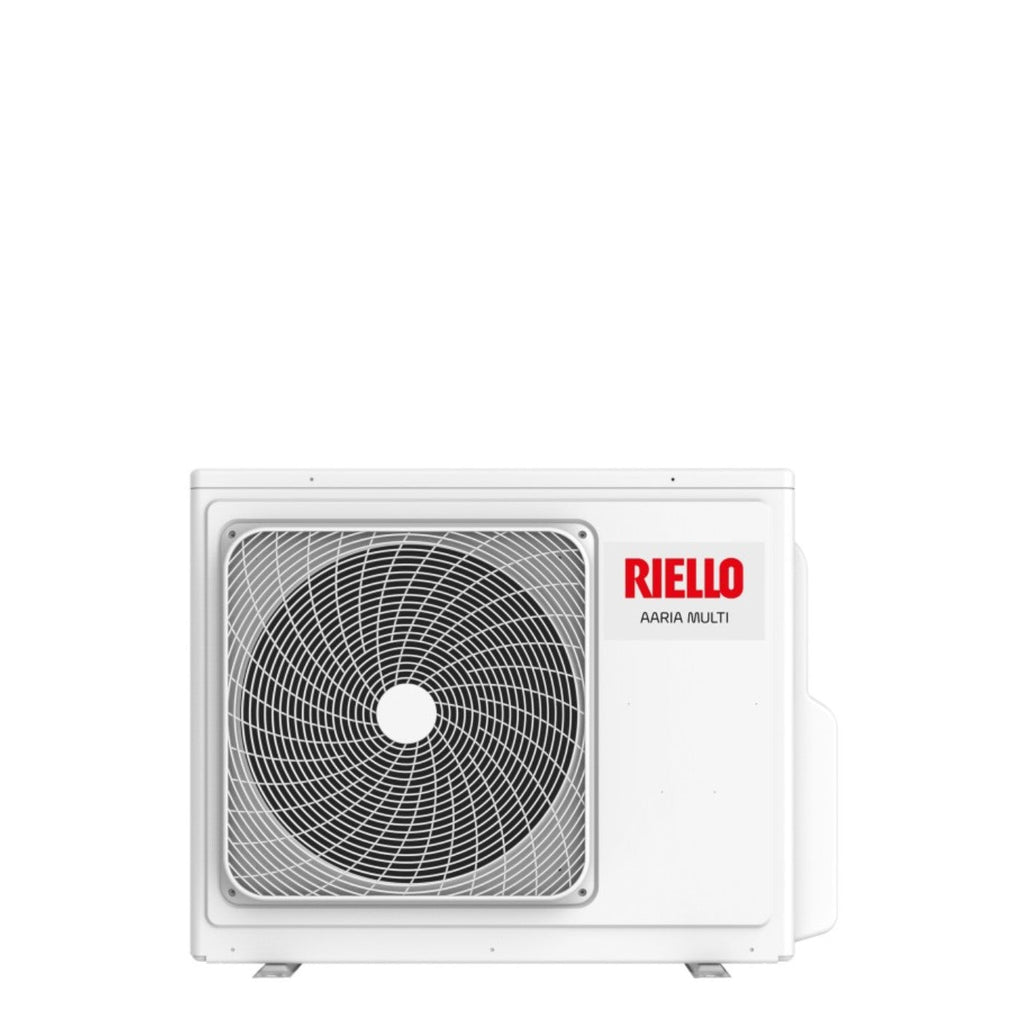

Riello Outdoor Unit Split Motor Inverter AARIA MULTI 485 Split Panels R-32 Class A++/A+

• Outdoor unit catalog code: AARIA MULTI 485 P
• Number of connectable internal units: Up to 4 internal units

Energy efficiency

• SEER: 7.00
• SCOP: 4.00
• Cooling energy efficiency class: A++
• Heating energy efficiency class: A+
• Annual energy consumption in cooling: 456 kWh/a
• Annual energy consumption in heating: 2503 kWh/a

Performance

• Cooling capacity: 8.50 kW
• Heating capacity: 9.60 kW
• Cooling absorption: 2.50 kW
• Heating absorption: 2.40 kW
• Sound power level: 68 dB(A)
• Sound pressure level: 55 dB(A)

Characteristics

• Power (V/Hz/Φ): 220~240/50/1
• Refrigerant gas: R-32

• Liquid tube diameter: 6.35 mm (1/4") x4
• Gas pipe diameter: 9.52 mm (3/8") x4
• Maximum pipe length: 25 m
• Maximum internal unit / external unit height difference: 15 m

Dimensions and weight

• External unit dimensions (WxHxD): 700x890x340 mm
• External unit weight: 61.0 kg

Multisplit Riello AARIA Design and efficiency for domestic and small commercial air conditioning

Technology

For over 30 years Riello has offered the market a wide choice of air conditioners. This experience allows us to offer solutions for summer and winter air conditioning capable of guaranteeing the best comfort and maximum efficiency. In particular, Inverter technology allows you to adapt the power absorbed by the air conditioner continuously, reducing or increasing it based on needs.

Design

The internal units of Riello AARIA air conditioners stand out for their refined aesthetic finish and the quality of the materials with which they are made, which allow them to be pleasantly inserted into any residential environment. Even the construction details of the external units are particularly carefully studied in order to avoid their deterioration even after many years of exposure to atmospheric agents.

Efficiency

Riello has always been a leader in the search for the efficiency of its products. The AARIA series air conditioners have also been designed to provide the best performance in both summer cooling and winter heating. Also thanks to the introduction of the new R32 gas, the new AARIA models reach the A+++ class, guaranteeing extremely low management costs.

Refrigerant gas R32

Riello introduces the R32 refrigerant gas, replacing the current 410A, within the residential air conditioning proposal. The new gas presents numerous advantages for the environment and performance, allowing the units to reach up to the A+++ efficiency class, as well as complying with the new European Regulation for the reduction of the environmental impact of fluorinated gases in the atmosphere.

Comfort

The AARIA series air conditioners act on multiple fronts to achieve maximum environmental comfort. In addition to the perfect stability of the room temperature, there is the continuous cleaning action of the air, to eliminate even the smallest suspended impurities and offer a healthier environment. Optimal humidity values ​​are always guaranteed thanks to the Dry dehumidification function. The internal units of the AARIA series are also characterized by their extreme silence, thanks to the use of fans made with brushless* technology and the design of the air distribution.

AARIA MULTI PLUS

AARIA Multi Plus is the ideal solution for residential and commercial applications for which perfect maintenance of the climate is required.

The range has been designed to serve multiple rooms with the use of a single external unit. The main feature is given by the flexibility of the choices of internal units with a wide choice between wall-mounted, cassette and ducted. AARIA MULTI PLUS is available in the version from 5 to 8.5 kW of cooling power supplied, guaranteeing cutting-edge energy performance. The unit with low environmental impact R32 refrigerant reaches energy efficiency values ​​equal to class A++/A+ , thanks to Inverter technology. The outdoor unit in pre-painted metal with action against atmospheric agents is equipped with plastic connection covers and front grille. The compressor is of the Twin Rotary type with high efficiency and capable of reducing vibrations to a minimum

Efficiency and Versatility

AARIA MULTI PLUS - multisplit outdoor unit, to connect up to 4 indoor units, with a single outdoor unit. The use of the new R32 refrigerant gas, with low environmental impact, allows the achievement of efficiency values ​​equal to A++ in cooling and A+ in heating.
