OLIMPIA SPLENDID Fan Coil Fan Coil Inverter Model Bi2 SL AIR 400 with TR Control included Code 01852
OLIMPIA SPLENDID Fan Coil Fan Coil Inverter Model Bi2 SL AIR 400 with TR Control included Code 01852
Technical features
- Product code 01852
- Total cooling yield (a) (E) kW 1.74
- Water flow rate (a) l/h 302
- Battery water content 0.8 l
- Maximum operating pressure bar 10
- 3/4 inch Eurocone hydraulic connections
- Max absorbed power (E) W 19
- Min-max sound power 39/53 dB(A)
- Sound pressure (f) dB(A) 36
- Electrical supply V/ph/Hz 230/1/50
- Dimensions WxHxD 895x599x129mm
- TR (Touch Remote) control included
- B0736 wall-mounted LCD chronothermostat control for MODBUS connection, RS485 - optional
- Possibility of controlling up to 30 units. Selection of desired temperature, operating mode, fan speed, manual/chronothermostat mode. Room probe inserted in the command. Backlit LCD display.

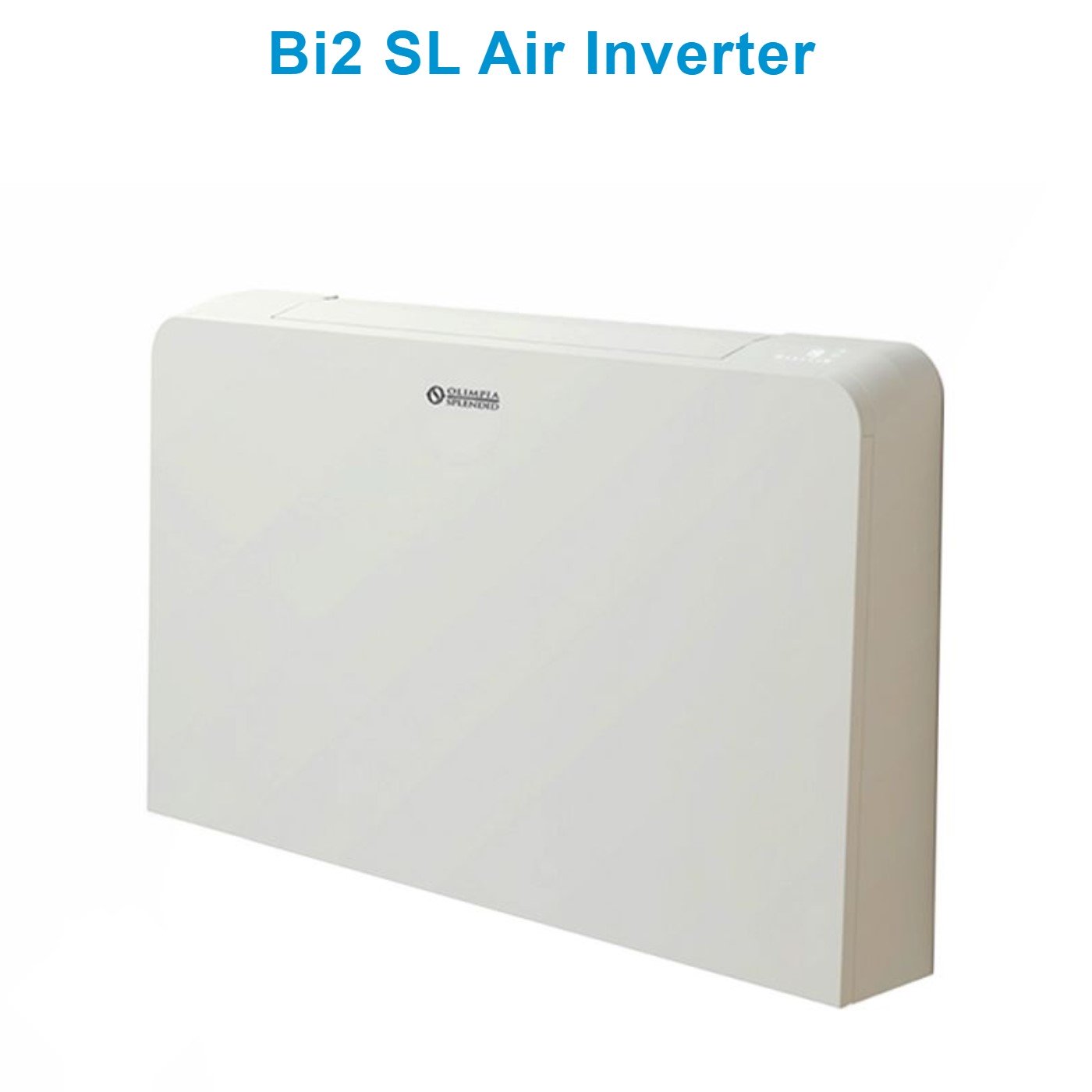

Bi2 SL AIR
Bi2® Air is the system terminal that heats, cools, dehumidifies and filters. Thanks to its integral design, just 12.9 cm thick, installing and maintaining the machine has never been easier! With the innovative integrated multiset control you also have maximum comfort always at hand.

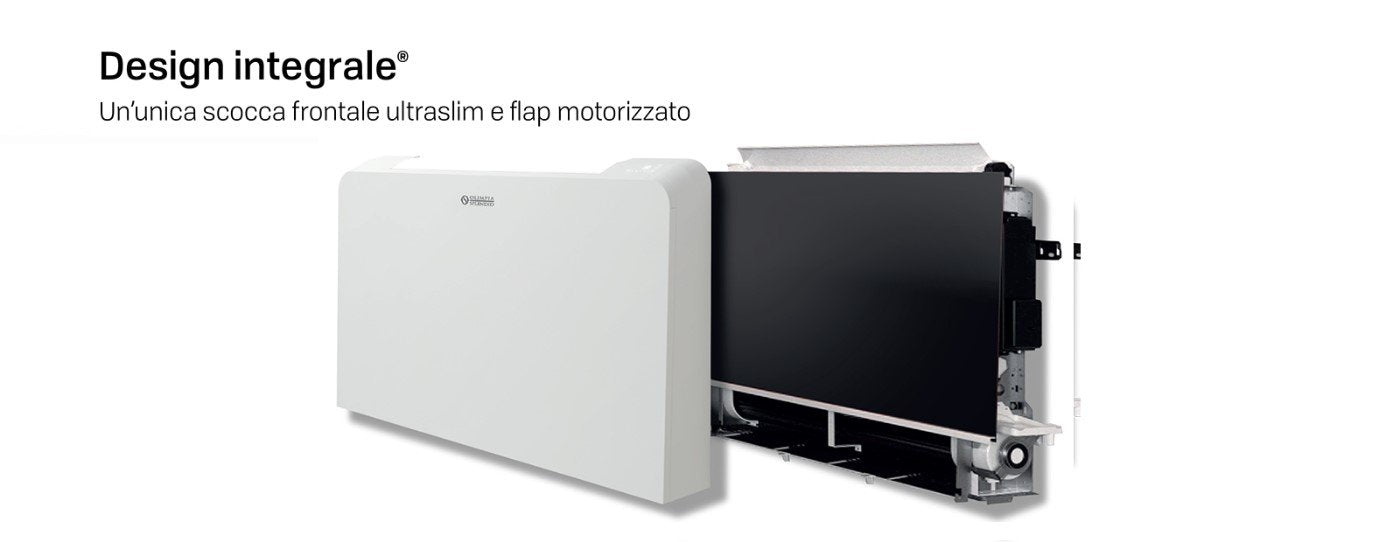

INTEGRAL DESIGN®
Thanks to the essential design and the front body combined with the side sides, the installation and maintenance of Bi2 Air are simplified
- Heats, Cools, Dehumidifies and Filters
- Integral aesthetics with suction from the bottom. Metal front, ABS sides
- Compact: Thickness min 12.9 cm max 15 cm
- Range composed of 5 power models
- DC brushless motor
- Monobloc body for comfortable working
- Motorized steel air delivery flap
- Anti-intrusion grilles on the air intake and outlet
- Removable filters placed on the air intake
- Remote control supplied

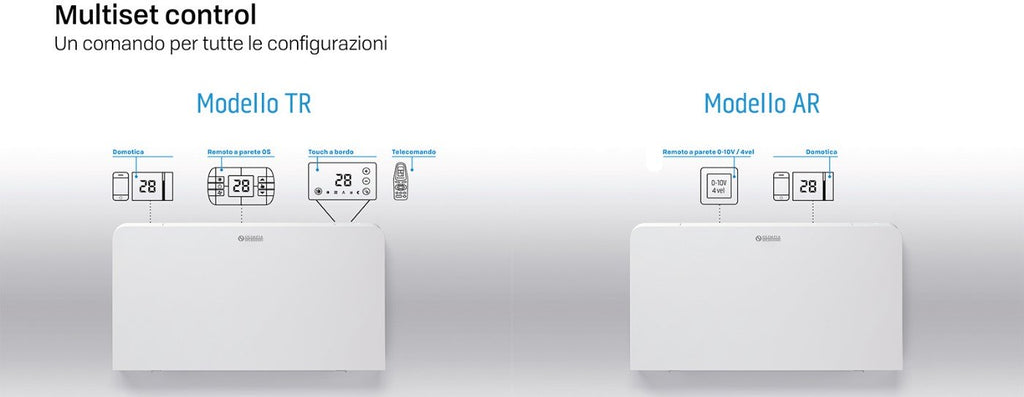

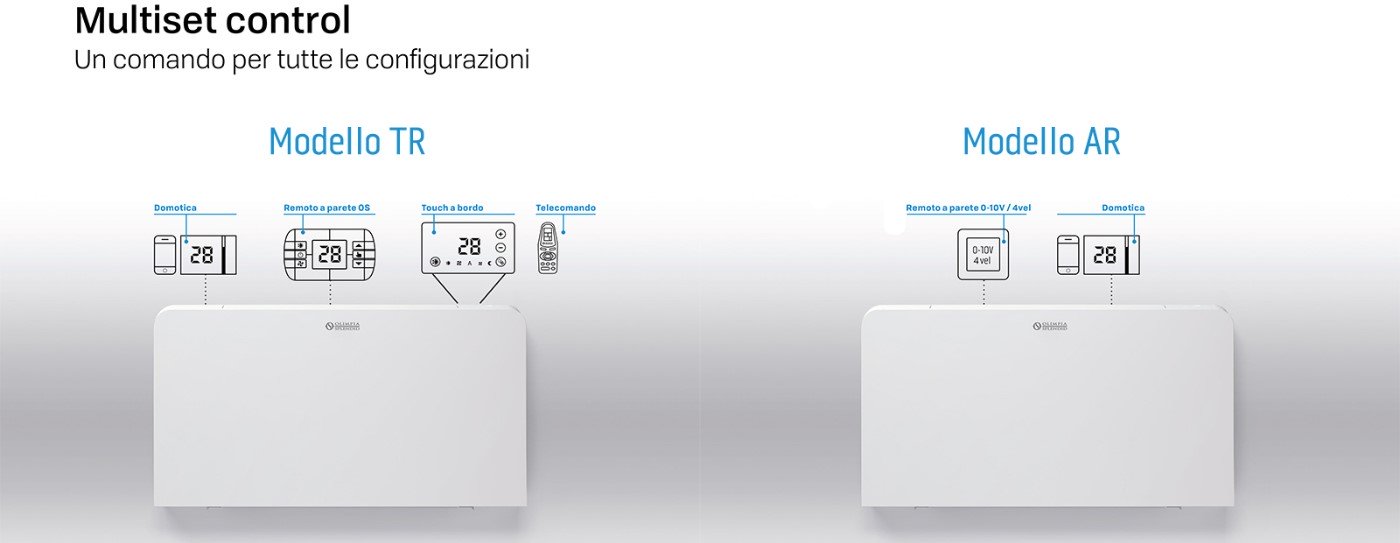

TR COMMAND (Touch Remote): Touch control on the machine and remote control supplied. Through a selection of buttons on the machine, remote control* is possible with wall-mounted remote control (chronothermostat code B0736, optional) or with home automation, through the Modbus RS485 signal protocol
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase
