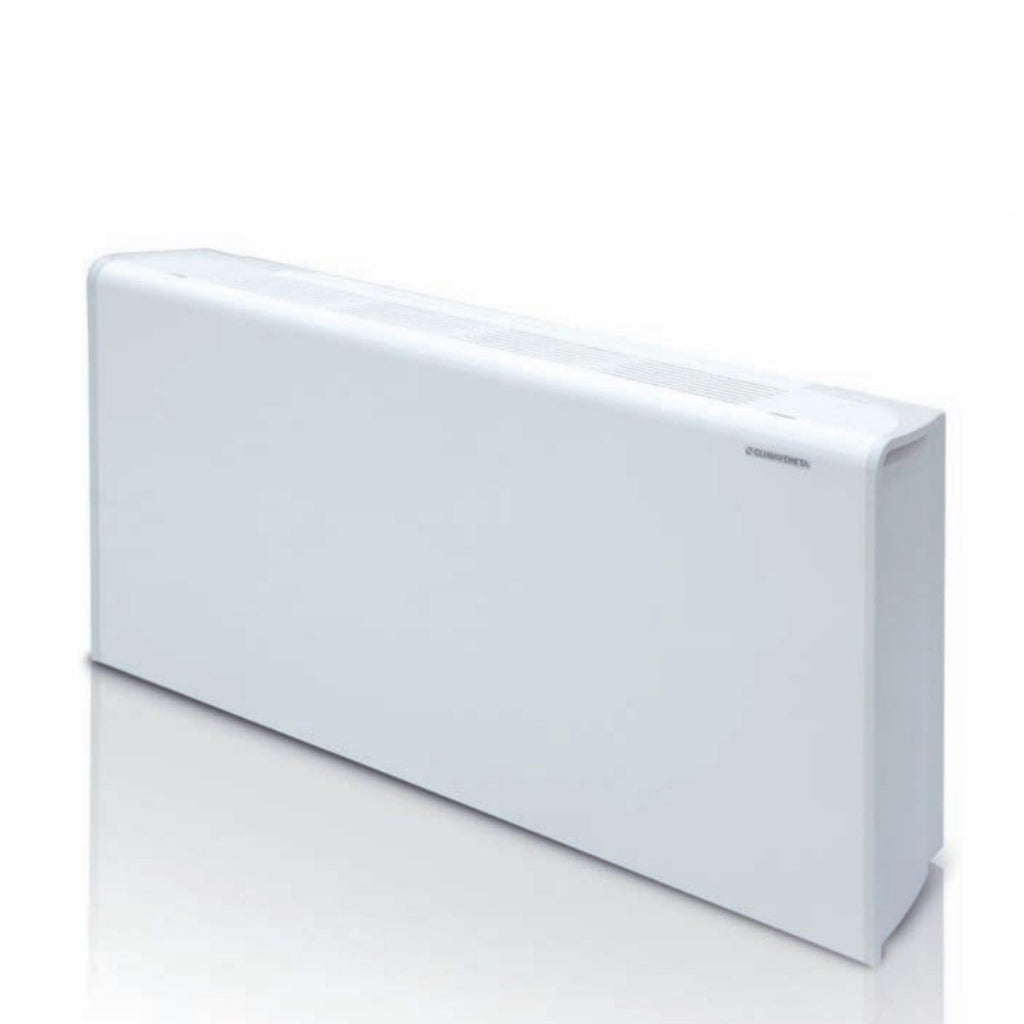

Climaveneta Professional Fan Coil Fan Coil Model a-LIFE3 302 2 Pipe Version of 2.11 kW On-board FanCoil Control Model AT

Technical features

• Model: a-LIFE3 302
• Power supply (V/Hz/n°): 230/50/1
• White color
• Internal Unit Power: 2.1 kW
• Number of Tubes: 2

NB: The control is not included in the package, it is available as an accessory.

General characteristics

ClimaVeneta Fancoil a-LIFE3-2T-DLMV-102 for professional applications, 1.41 kW in 2-pipe cabinet version, with lower air intake, for vertical installation.

This fan coil is equipped with a double inlet centrifugal fan unit with forward-facing blades and 3 speeds. The hydraulic connections on the left are easily converted into connections on the right with a simple rotation of the exchanger. A G2 class air filter is mounted on all models, whose cover is made of galvanized and pre-painted sheet metal.

Characteristics

• Double inlet centrifugal fan unit to guarantee the best performance with the lowest noise level.

• Directly coupled multi-speed electric motor

• 6-speed autotransformer

• Battery with corrugated aluminum fins and copper tubes.

• Coil with large front surface which allows high air flows to be achieved with very low pressure drops.

• Hydraulic connections on the left, easily convertible into connections on the right with a simple rotation of the exchanger.

• Auxiliary condensate collection tray with thermal insulation, in galvanized sheet metal, for all Horizontal versions.

• Auxiliary condensate collection tray in plastic material, for all versions.

• Configurations for 2 and 4 pipe systems.

• Air filter on all models.

• Automatic closing of the control door and protection of the electrical controls from any water spills (compliant with the CEI EN 60335-2-40 directive).
