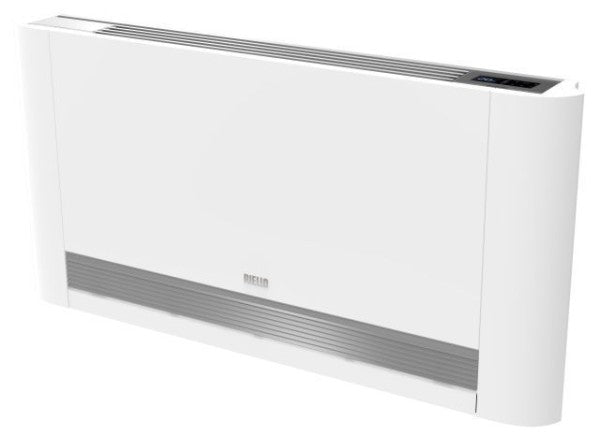

Fan Coil Fan Coil Riello Design Inverter 33 b with brushless motor with on-board control panel

Fan Coil Fan Coil Riello Design Inverter 33 b with brushless motor with on-board control panel

• Tangential fan coil with Brushless Inverter motor
• Vertical or horizontal installation (accessory)
• Dimensions HxWxD mm 580x1160x130
• Code 20116246

General characteristics

Cooling capacity 7°C-12°C 3310
Thermal output 50°CW (2) 3905
Thermal output 70°C-60°CW (3) 6635
Maximum air flow m3 /h (4) 560
Sound pressure dBA 45.5-25.6

Inverter design

INVERTER DESIGNS are Riello fan coils with DC Brushless Inverter motors, this technological solution allows a continuous variation from 0 to 100% of the air flow rate and consequently of the heating and cooling power. The INVERTER DESIGNS heat and cool any environment very quickly, it is possible to choose between two dedicated mappings: PERFORMANCE for commercial environments, which require high efficiency and great effectiveness, and COMFORT to always maintain maximum silence in residential environments.

Thanks to the use of DC Brushless motors, DESIGN INVERTERS save up to 50% of electricity compared to fan coils with traditional motors (ON/OFF type). Like the entire HELIOTERM family, the DESIGN INVERTER range is characterized by an extremely thin aesthetic with a depth of only 13 cm. The range is available with 5 models in two colors (white and metallic grey), with cold power from 830 W up to 4560 W and hot power from 1090 W up to 4860 W. The vast range of accessories and controls with a touch DISPLAY , support a wide range of applications. All versions can be installed vertically or horizontally (via a dedicated accessory), with connections on the left. The structure is made of galvanized sheet metal with ABS sides in the white version, in silver sheet metal, the front delivery grille is in aluminium.

- Ultra Slim Aesthetics
- Depth of 13 cm
- Two colors available
- Units can be installed both vertically and horizontally
- Easy installation with connections on the left
- Easy disassembly and cleaning of the filters
- Commands with Display
