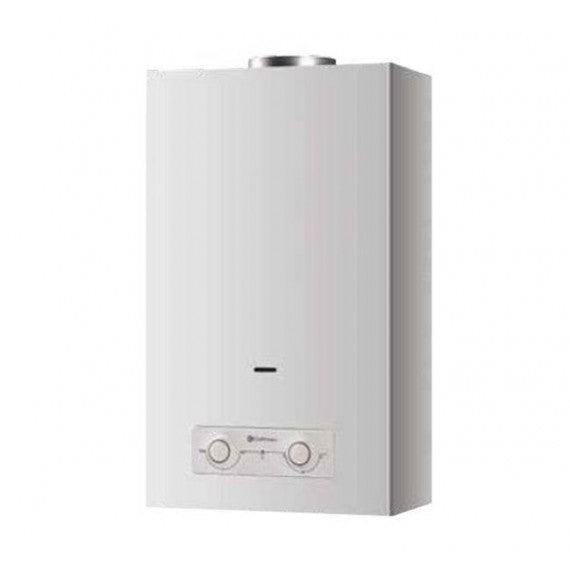

Chaffoteaux Water Heater Open Chamber mod. BRD LNX 14 Lt LOW NOx Methane - NEW
Chaffoteaux Water Heater Open Chamber mod. BRD LNX 14 Lt LOW NOx Methane - NEW
Chaffoteaux Water Heater Open Chamber mod. BRD LNX 14 Lt LOW NOx Methane - NEW
ErP Technical Specifications
- Code: 3632418
- Energy class: A
- Withdrawal profile: L
- Type: Open chamber with natural draft
- Ignition: Electric (DC 3.0V Battery)
- Power supply: 230-50V
- Category: II2H3+
- Fuel: Methane (G20/21)
Performance
- Minimum/nominal heat input: 10.5/27 kW
- Minimum/nominal operating pressure: 0.20/10 bar
- Nominal flow rate (∆T 25°C): 14.0 l/min
- Minimum operating flow rate: 3.0 l/min
ACS performance:
- Minimum room temperature for use: 5°C
- Sound power: 64 dB
- Electrical protection degree: IPX5
Emissions:
- Fume temperature at maximum flow rate: 176°C
- CO2: NG: 6.5% LPG: 8.5%
- NOx emissions: 48.5 mg/kWh
- Dimensions (HxWxD) 617x310x210.8 mm; Weight: 11.6 kg
BRD LNX

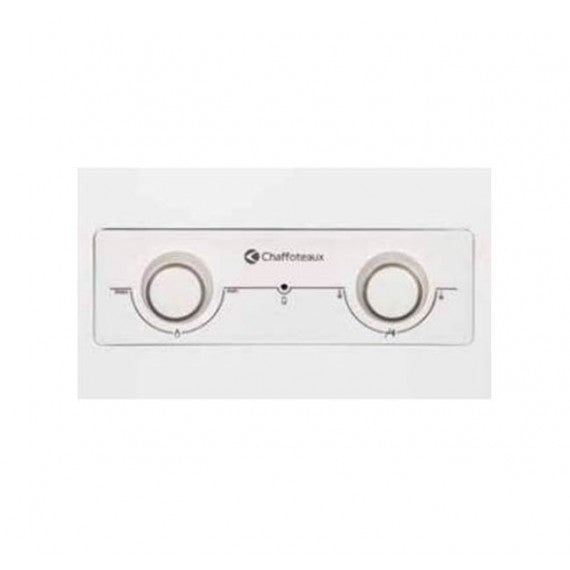

The extremely compact Caffoteaux BRD LNX instantaneous gas water heater, with a completely innovative and elegant design, with mechanical regulation for simple and quick installation, with electric ignition and flame control. Through an innovative modulation system they allow to obtain an always stable DHW (Domestic Hot Water) temperature. Simple temperature setting, two knobs, one for adjusting the water flow, the other for the gas level.
Advantages:
- Front maintenance
- Compact models
- Mechanical adjustment
Safety:
- Exhaust gas overheating detector
- “Wet chamber” copper exchanger
- Electronic detection of flame presence
- LED light that signals the need to change the batteries.
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
